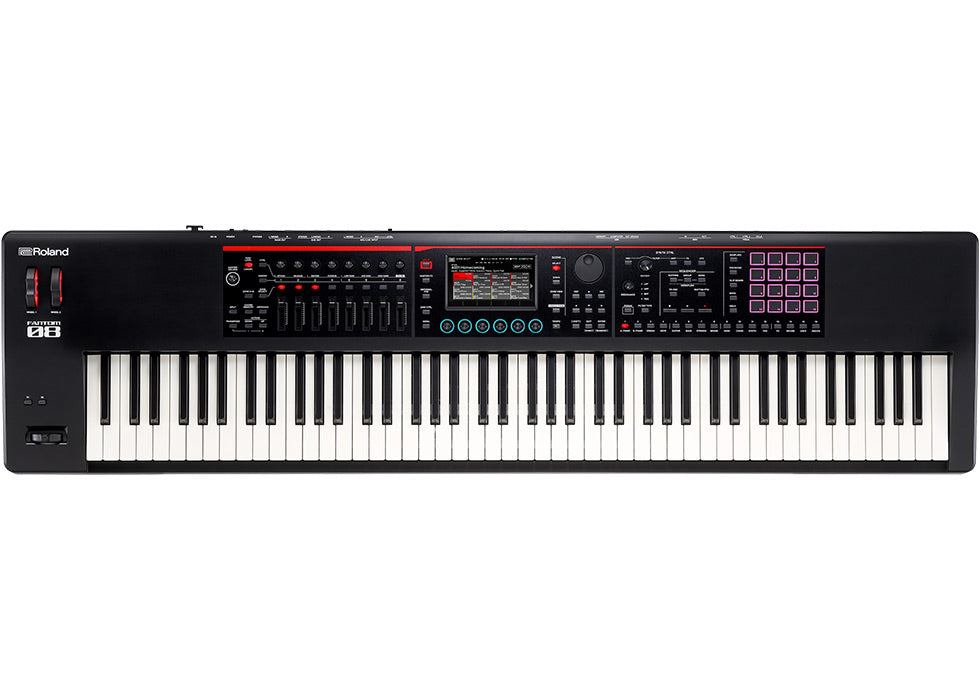

Roland Fantom-08 88 Synthesizer (Black)

• Potencia sónica y flujo de trabajo deslizante en una estación de trabajo de sintetizadores llenos de funciones
• Motor de audio V-piano
• 3500 votos
• 90 kits de batería
• 16 capas
• 88 tangentes de alta calidad con escape y sensación de Ibenholdt/marfil
• Las tecnologías avanzadas de núcleo zen y sobrenatural proporcionan muchos sonidos electrónicos y acústicos

Roland Fantom-08 88 Synthesizer (negro)

• Con este sintetizador de Roland, obtienes mucha potencia sónica versátil y flujo de trabajo del sintetizador deslizante.
• El teclado 88 tangente recién diseñado le brinda todo lo que necesita para realizar y crear a un alto nivel.
• Los alicates se realizan en la sensación de ébano/marfil, escape completo y el canal posterior.
• Con un total de 3500 votos, 90 kits de batería y 90 efectos múltiples, nunca se queda sin opciones.
• Cubriendo e integración profunda con la mayoría de los DAW y complementos.
• Guardar y cargar combinaciones de "escena" complejas rápidamente que recuerden parámetros, patrones y capas en las 16 capas.
• El DSP impresionante puede manejar fácilmente la polifonía interminable del motor V-piano.
• Las avanzadas tecnologías Zen -Core y Supernatural de Roland proporcionan sonidos electrónicos y acústicos, cuando realmente tienes la oportunidad de jugar en todo el género.
• Órgano de rueda de tono virtual con control de barra armónica y característica de fuego rápido
• Otras características geniales: pantalla táctil de color, múltiples controles deslizantes, sección de control de sintetizador dedicada, brotes de alta resolución y almohadillas de rendimiento RGB.
• Hay 10 paquetes de sonido y 15 expansiones de ondas con disponibles en Roland Cloud.
• También disponible en un modelo de 76 tangentes.

Sound Generator

ZEN-Core
V-Piano Technology (Only ZONE1)
VTW Organ (Only ZONE2)
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano (Require adding EXSN01)
SuperNATURAL Electric Piano (Require adding EXSN02)
Various MODEL sound generators (Require adding EXM Series)

* ZEN-Core Tones and Model Tones can import and export.

Expansion

EXZ Series
EXSN Series
EXM Series

* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.

Parts

16 Zones (Internal + External)

Scenes

128 Scenes x 4 Bank

* The Scenes can import and export.

Tones

Over 3,500 Tones
Over 90 Drum kits

Tone Remain

16 parts (16 zones / 16 scenes).

* Tone Remain does not apply to V-Piano and VTW sounds.

Favorite

Rating System: 4 Steps (0-3)

Tone Search / Scene Search

Raiting, Character

Effects

Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 System, 90 Type
TFX: 1 System, 90 Types
Input MFX: 2 Systems(in Parallel), 90 Types

Chorus: 9 types
Reverb: 7 types
Master Compressor
Master EQ
Input Reverb: 7 types
Input EQ: 2 Systems (in Parallel)

Analog Filter

STEREO
Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp

Vocoder

Band: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20

Scene Chain

Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 62 (0-9, A-Z, a-z) per 1 Chain Set

SEQUENCER

MIDI Tracks

16 (Internal/External)

Group

16

Pattern

8 (per each Track)

Pattern Length

32 measures

Recording Method

Realtime recording, Step recording, TR-REC

Editing Method

Piano roll edit (Touch Edit / Automation support), Microscope

Song

1 (per Scene)

File format

Original, SMF export/import supported

* PAD Sampler trigger data can be recorded.

SAMPLER - KEYBOARD MULTISAMPLE

Format

16/24-bit linear, 44.1/48kHz, WAV/AIFF

Number of Samples

8,000

Number of Multisamples

128

Sampling Time

The maximum is 2 minutes 44 second (1 Sample)

* A total of approximately 2 GB (Share with Expansion titles)"
* Keyboard Multisample can import and export as ZEN-Core Tone.

SAMPLER - PAD SAMPLER

Format

16-bit linear, 44.1/48kHz, WAV/AIFF import supported

Maximum Polyphony

8

Number of Samples

16 Pads x 4 Banks

Sampling Time

The maximum is 60 minutes (the equivalent of approximately 660 MB).

* A total of approximately 2 GB can be saved (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.

SAMPLER - INTERNAL STORAGE SPACE FOR FILES

Size

2GB

OTHER

Rhythm Pattern

Yes

Arpeggiator

Yes

Chord Memory

Yes

Motional Pad

Yes

PAD Mode

Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play

AIRA LINK

Yes

* When connect to MX-1

CV/Gate Control

2 x CV/Gate or 3 x CV/1 x Gate

Controllers

Pitch Bend/Modulation Lever (*)
Assignable Switch x 2 (S1/S2)
Control Knob x 8
Slider x 8
USB Audio Slider
Wheel x 2 (*)
Function Knob x 6
Sound Modified Knob x 11 (*)
4 x 4 Pad

* 1024 step editing support
It can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.

Display

Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen, Wallpaper support)

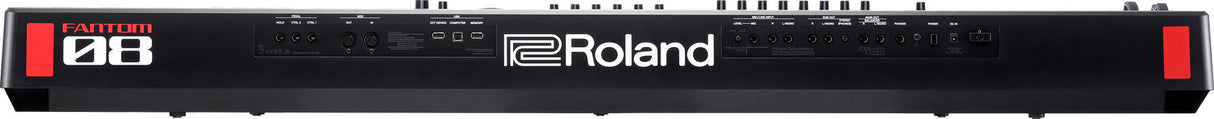

Connectors

Headphones Jack: Stereo 1/4-inch phone type
MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT Jacks (L, R) (XLR type)
SUB OUT1 Jacks (L, R) (1/4-inch phone type)
SUB OUT2 Jacks (L, R) (1/4-inch phone type)
ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)
Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2x GATE OUT
FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3) * 1024 Step value support
MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
USB MEMORY Port
USB COMPUTER Port (AUDIO/ MIDI)

3 x External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.

Audio Interface

Max 24 bit/96 KHz
Record 16 Stereo Channel
Playback 3 Stereo Channel

External Memory

USB Flash drive (sold separately)

Power Supply

AC 117–240V, 50/60Hz

Power Consumption

50 W

Accessories

Owner's manual
Power Cord

Options (sold separately)

Keyboard Stand: KS-G8B, KS-10Z, KS-12
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*)

* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.

SIZE AND WEIGHT

Width

1,432 mm
56-7/16 inches

Depth

439 mm
17-5/16 inches

Height

153 mm
6-1/16 inches

Weight

27.7 kg
61 lbs 2 oz
