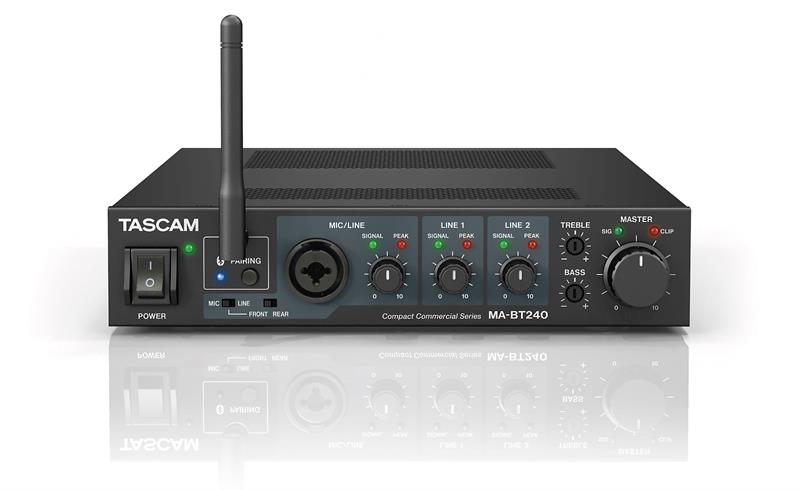

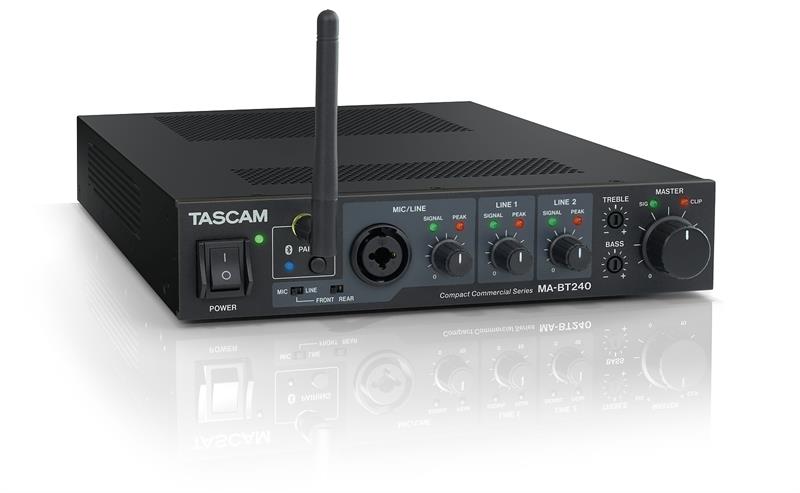

Tascam mixer forstærker 240W 100 Volt m/Bluetooth

Tascam MA-BT240 forstærker med mixer

Kraftfuld forstærker til baggrundsmusik, tale m.v.
Lydforstærkning på den nemme måde, MA-BT240 er en alsidig mixerforstærker designet til lyddistribution, præsentationer og annonceringer i mindre kommercielle miljøer.

Ved at kombinere forstærkning til både lav- og høj impedanshøjttalersystemer med en mikrofonindgang, to lineindgange og en Bluetooth-modtager til trådløs audiostreaming.
Den er et ideelt valg til restauranter, detailbutikker, institutioner, venteværelser og lignende steder.

Installation amplifier with comprehensive inputs and outputs for small to mid-sized facilities
Efficient Class-D amplifier for standard stereo loudspeakers or high-impedance distributed speaker systems
Bluetooth receiver for wireless music streaming from portable devices
Two Line inputs (RCA connectors)
Mic/Line input with switchable Ducking/Paging function to automatically mute background music during announcements
Built-in mixing with front-panel knobs for all inputs (except Bluetooth stream)
Compact half-rack design for convenient placement on desktop or shelf
Bluetooth antenna can be extended allowing you to place the unit in the most suitable position for your environment
Two-band EQ and high-pass filter on output allow you to fine-tune the system response
Output can be adapted to any speaker configuration with mono/stereo switching
Master volume can be adjusted remotely from an external controller (sold separately)
Line output for monitoring, recording or cascading to other power amplifiers

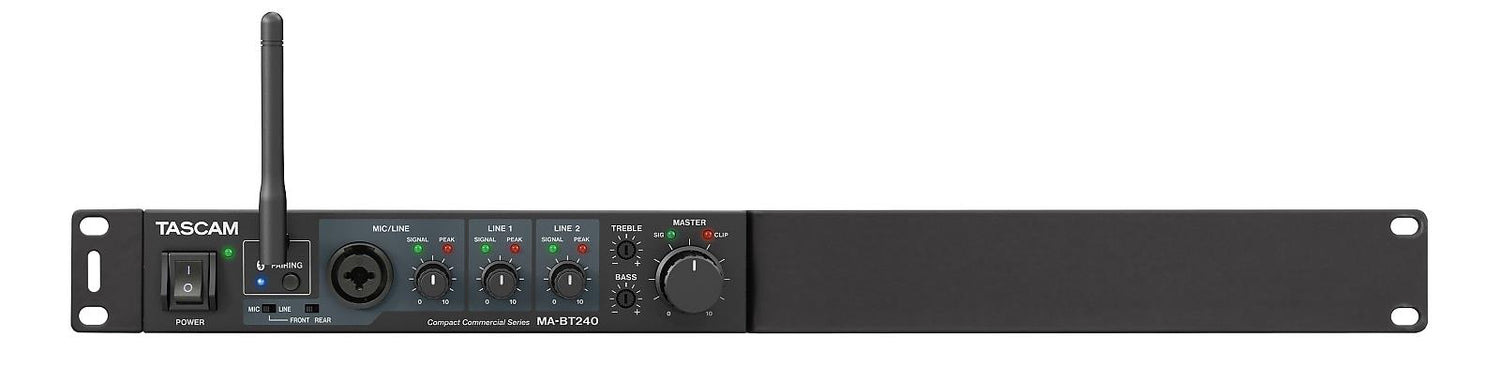

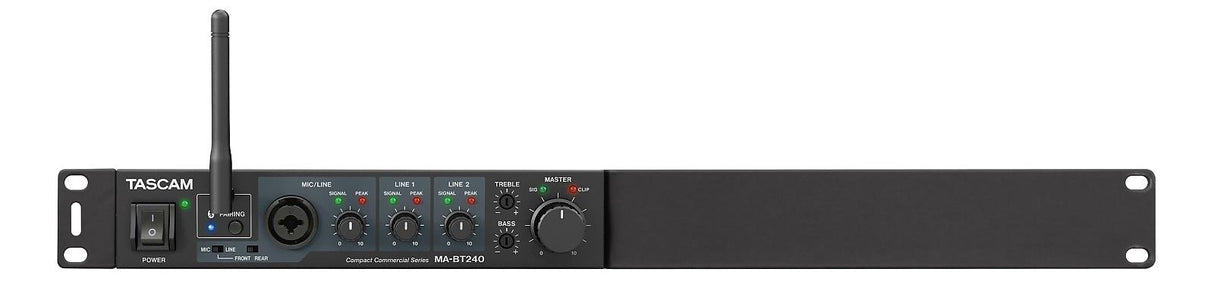

Can be rack-mounted with optional kit (AK-RM05, sold separately)

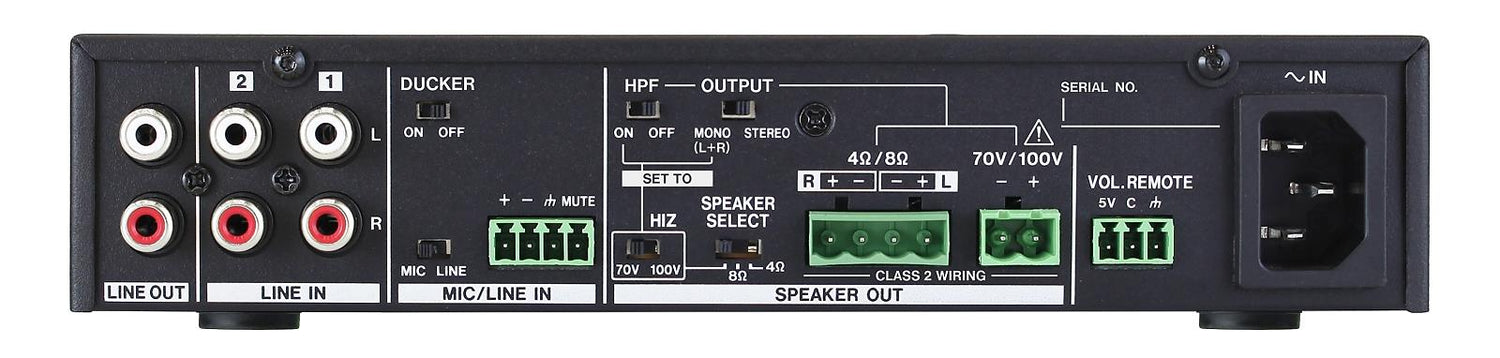

Mic/line inputs (MIC/LINE IN)
Front: XLR/TRS combo jack (balanced)
Rear: 4-pin Euroblock connector (balanced, 3.81 mm pitch)
MIC selected
Maximum input level -30 dBu
Minimum input level -65 dBu
Input impedance ≥2 kOhm

LINE selected
Maximum input level +20 dBu
Nominal input level +4 dBu
Input impedance ≥10 kOhm

Line inputs (LINE IN 1 / LINE IN 2)
RCA pin jacks (unbalanced)
Maximum input level +6 dBV
Nominal input level -10 dBV
Input impedance ≥10 kOhm

Audio outputs
Line outputs (LINE OUT)
RCA pin jacks (unbalanced)
Maximum output level +6 dBV
Nominal output level -10 dBV
Output impedance 200 Ohm

Loudspeaker outputs
High-impedance output
2-pin Euroblock connector (5.08 mm pitch)
Rated output 1 × 240 W (70 V / 100 V)
Composite impedance 100 V: ≥42 Ohm
70 V: ≥21 Ohm
Low-impedance output
4-pin Euroblock connector (5.08 mm pitch)
Rated output
2 × 120 W (4 Ohm or 8 Ohm, 1 kHz, 1 % THD)
Load impedance
4 Ohm / 8 Ohm (selectable)
Other inputs/outputs
Remote output volume adjustment
3-pin Euroblock connector (3.81 mm pitch)
(1: Vcc 5 V, 2: Control, 3: GND)
Bluetooth
Version
5.1
Output class
Class 2 (approx. 10 m unobstructed transmission range)
Supported profiles
A2DP, AVRCP
Codecs
SBC, AAC
Power supply and other specifications
Power supply
Model for Europe: AC 220-240 V, 50/60 Hz
Cooling method
Natural air cooling
Guaranteed operating temperature range
0-40 °C
Guaranteed operating humidity range
5-85% (no condensation)
Power consumption
Rated: 58 W (1/8 W output, 1 kHz sine wave, 4 Ohm)
Idle: 18 W
Dimensions (W × H × D)
214 mm × 44 mm × 298 mm
(excluding protrusions and Bluetooth antenna)
Weight
2.5 kg
