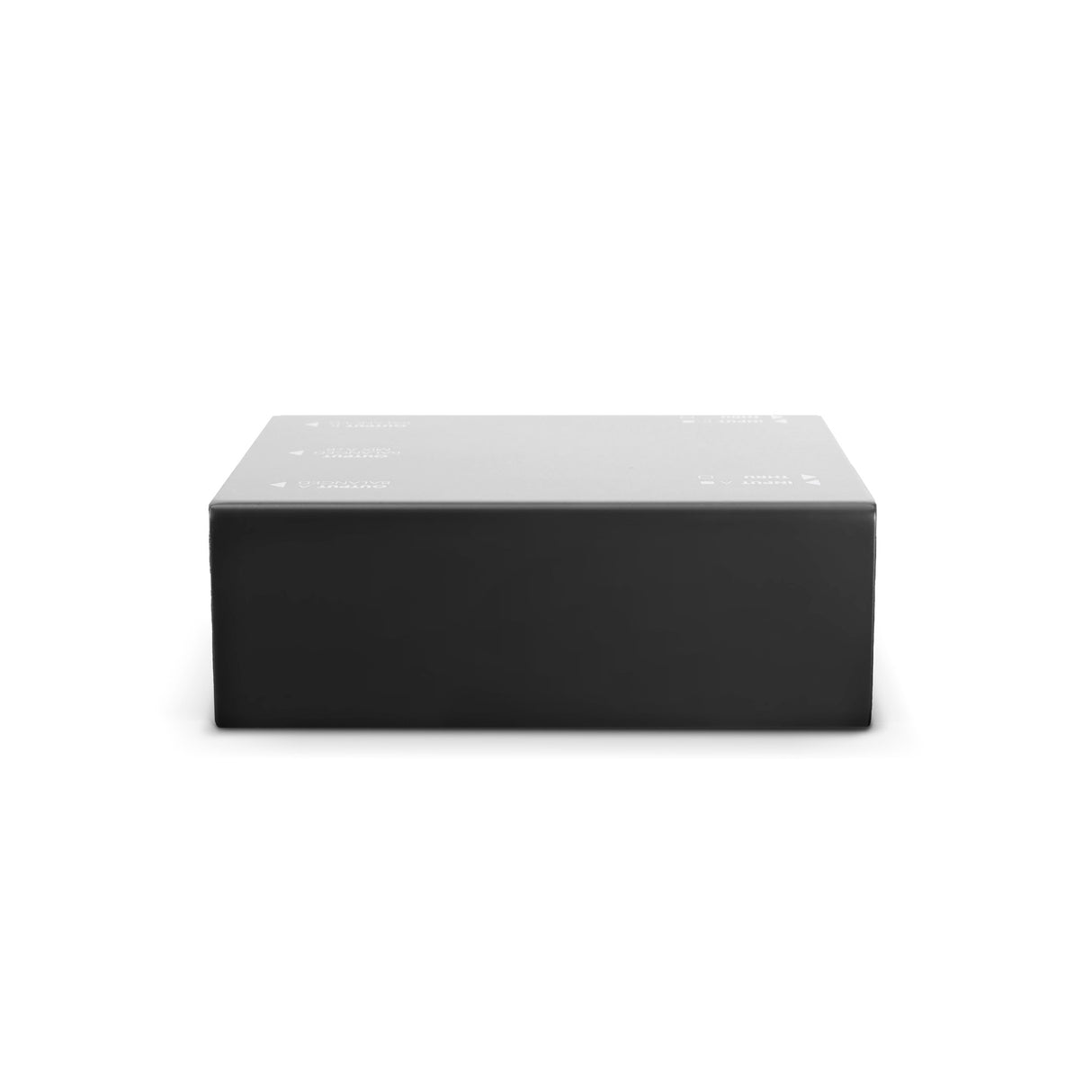

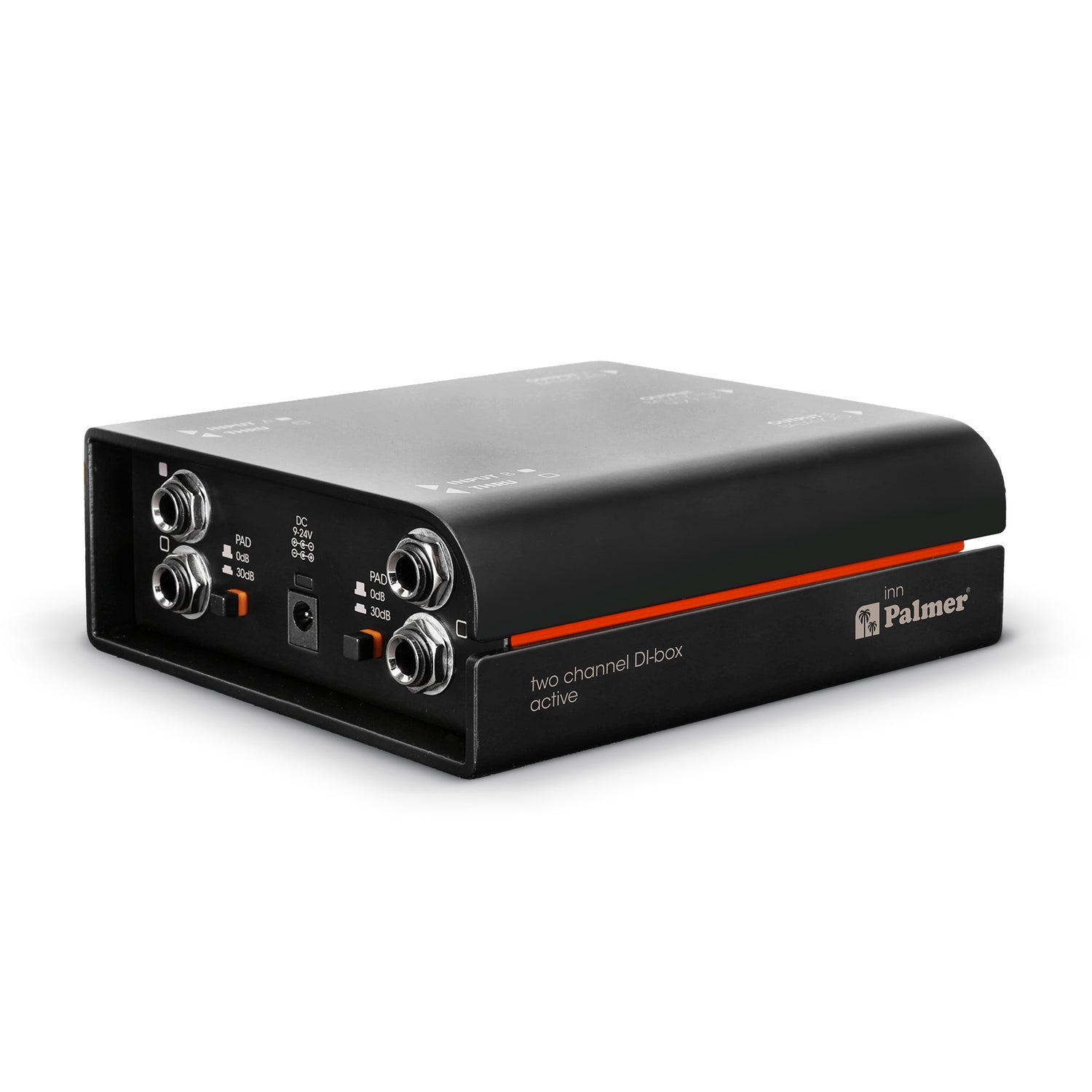

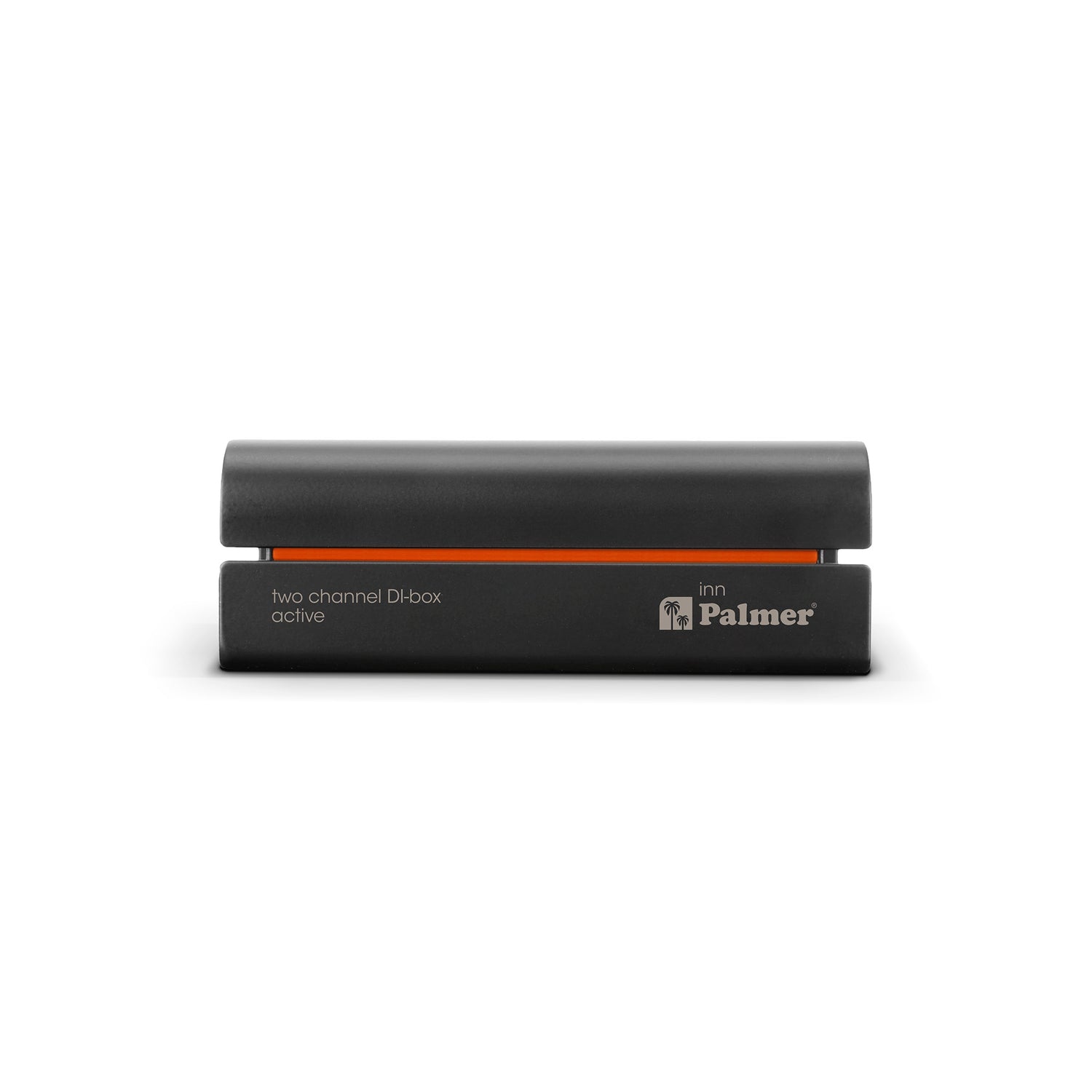

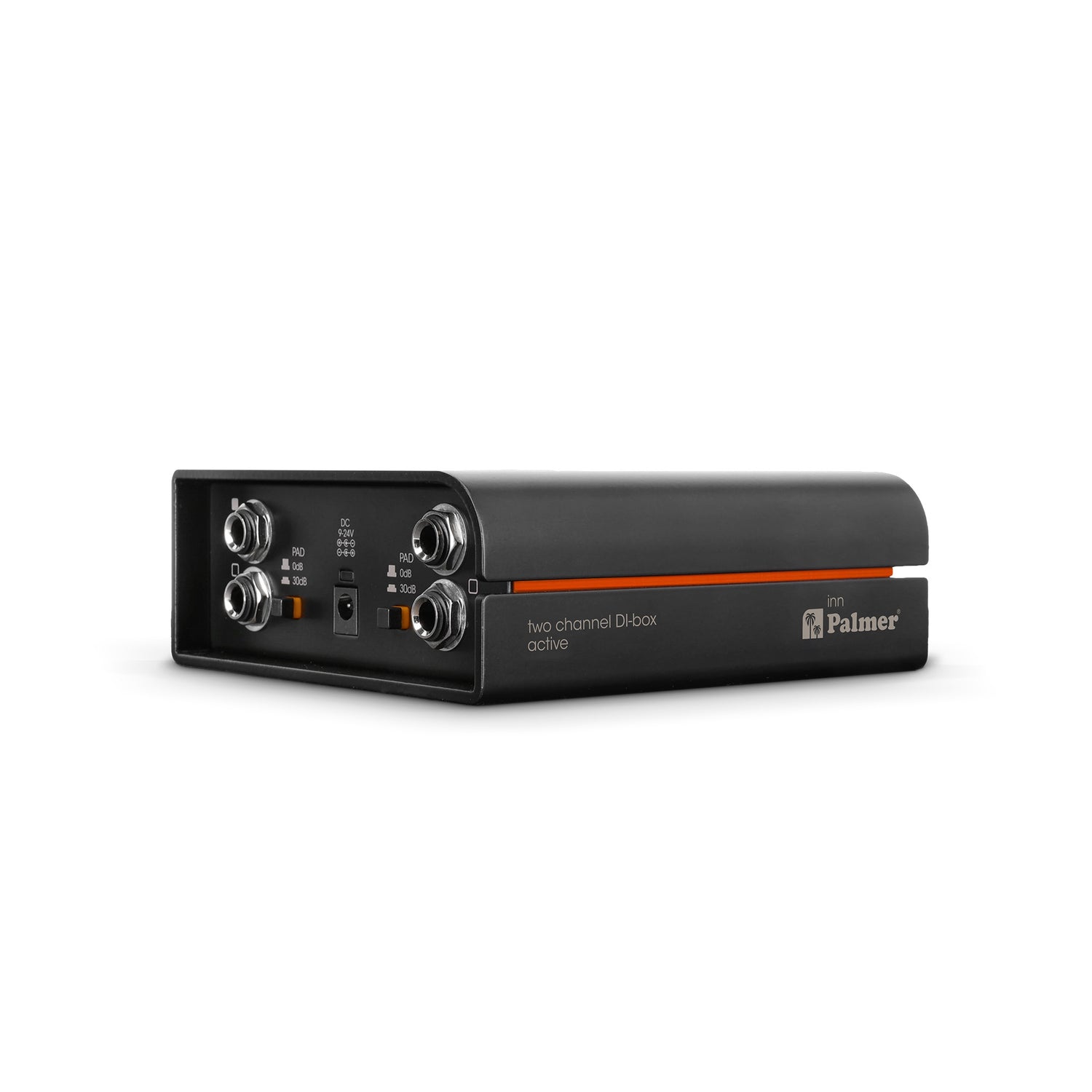

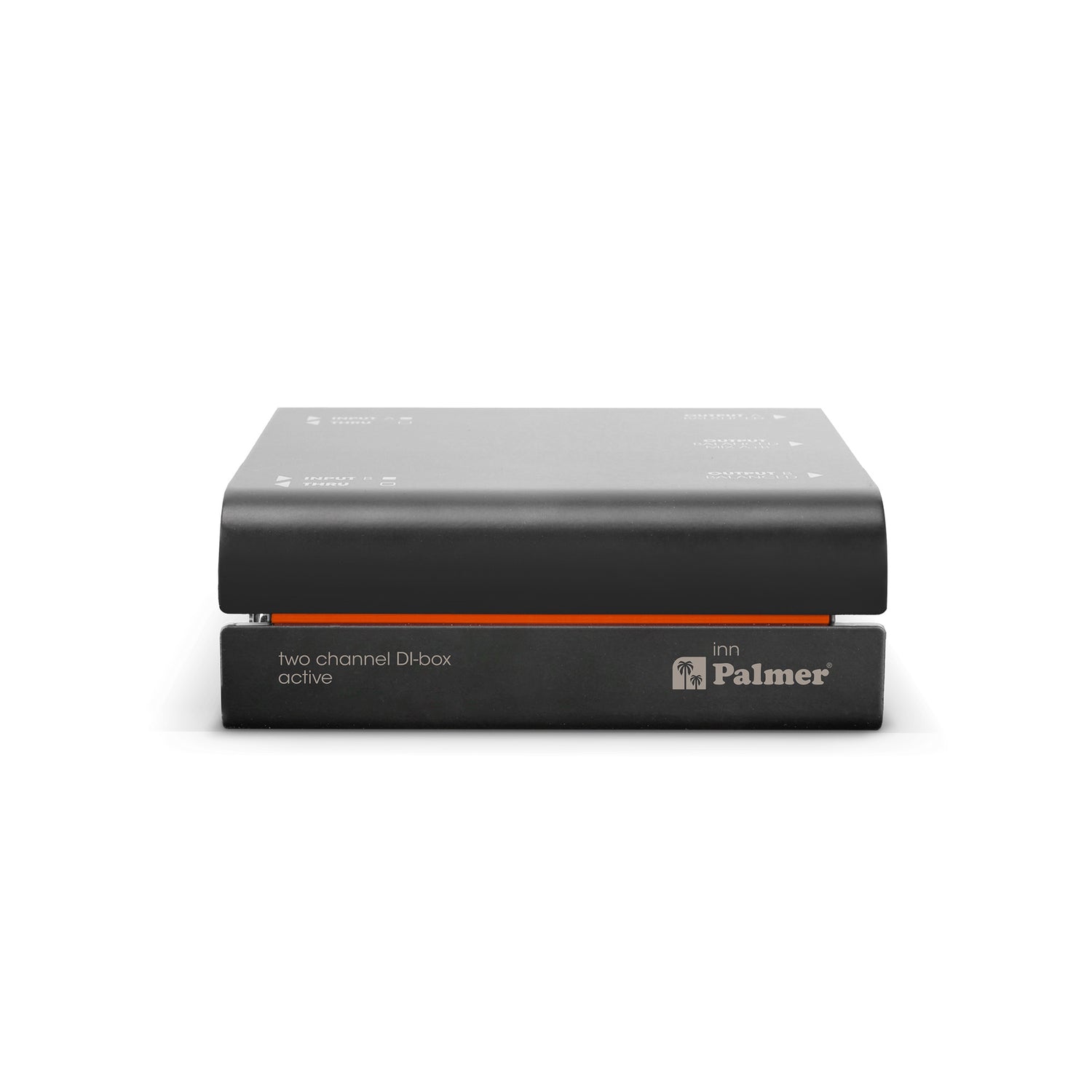

Palmer RIVER inn - Caja DI activa de 2 canales
1
de
17
Cargando...
€328,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío gratis
Métodos de pago aceptados
Otros clientes también compraron
-
Palmer Passive Monitor Controller
€86,95
Almacén externo – entrega en 9–12 días laborables
-
Palmer Pro Cable tester
€77,95
Almacén externo – entrega en 9–12 días laborables
-
Palmer MONICON XL active studio monitor controller
€397,95
Almacén externo – entrega en 9–12 días laborables
-
Palmer STUDIMON 5 Studio Monitor
€233,95
Almacén externo – entrega en 9–12 días laborables
-
Palmer PBC400 drawer
€31,95
Almacén externo – entrega en 9–12 días laborables

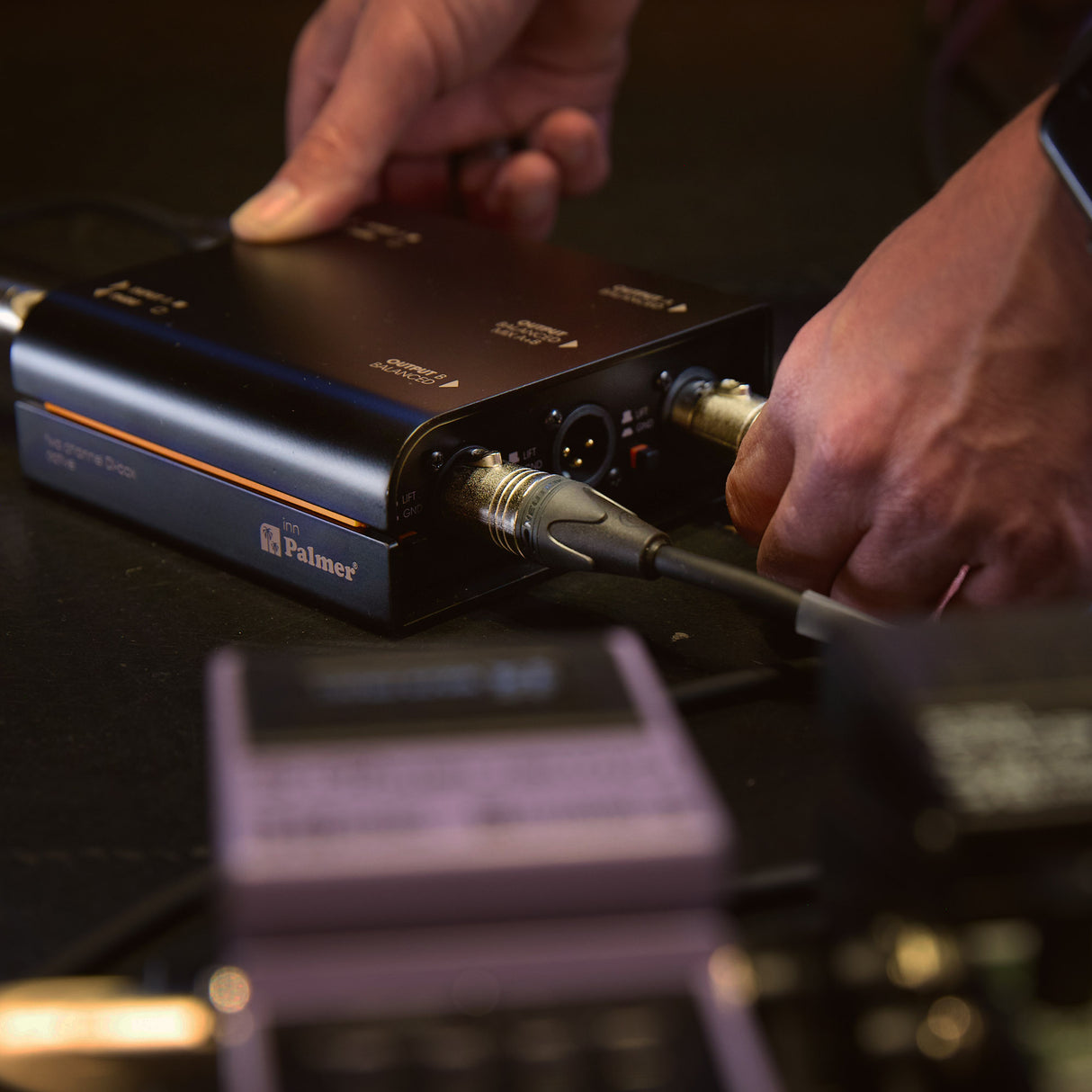

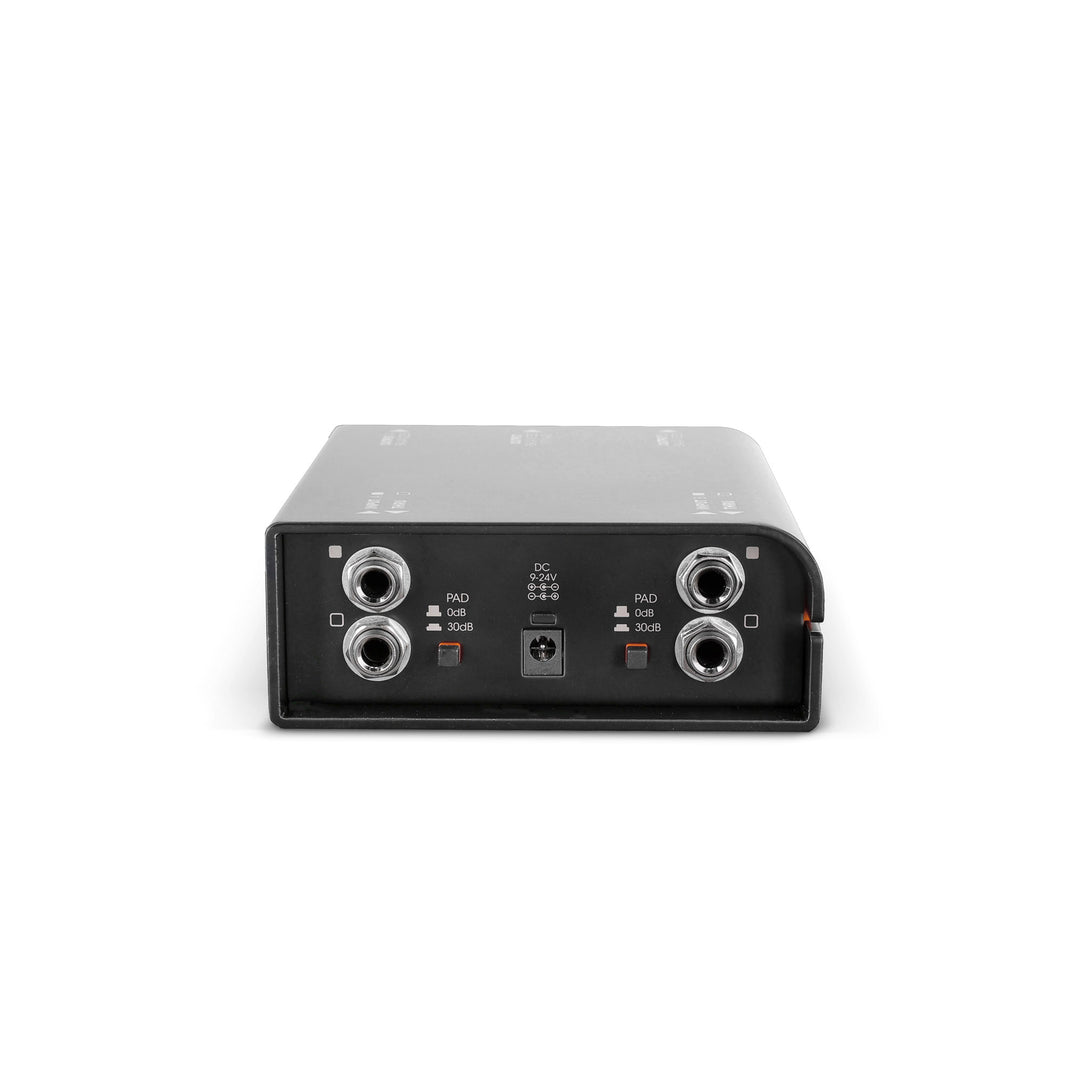

Palmer RIVER inn - Caja DI activa de 2 canales
€328,95
Precio por unidad
/
No disponible
Descripción
Descripción
Tekniske specifikationer
Tekniske specifikationer
- 2-channel balancing and impedance matching for guitar/bass/keyboard/synthesisers
- Eliminates ground loop hum thanks to galvanic transformer isolation
- Neutral sound thanks to active input stages with high impedance
- Low noise floor

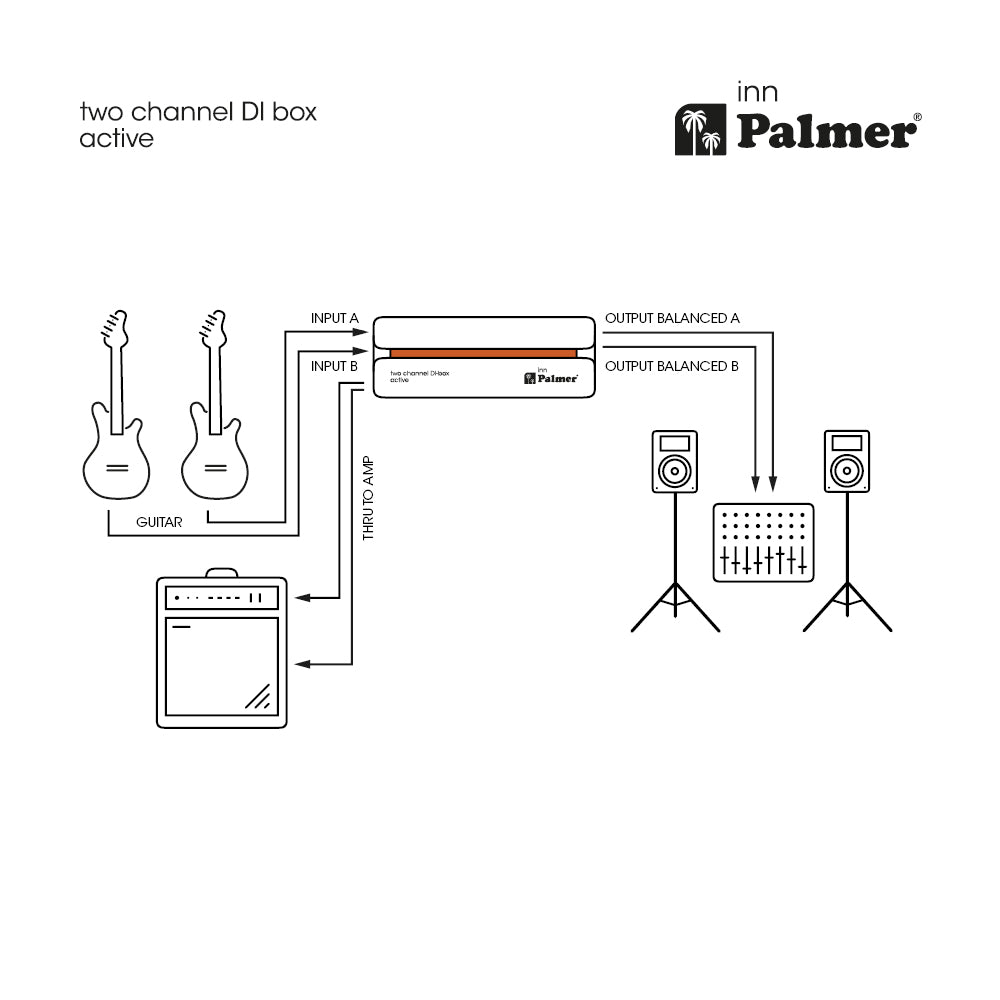

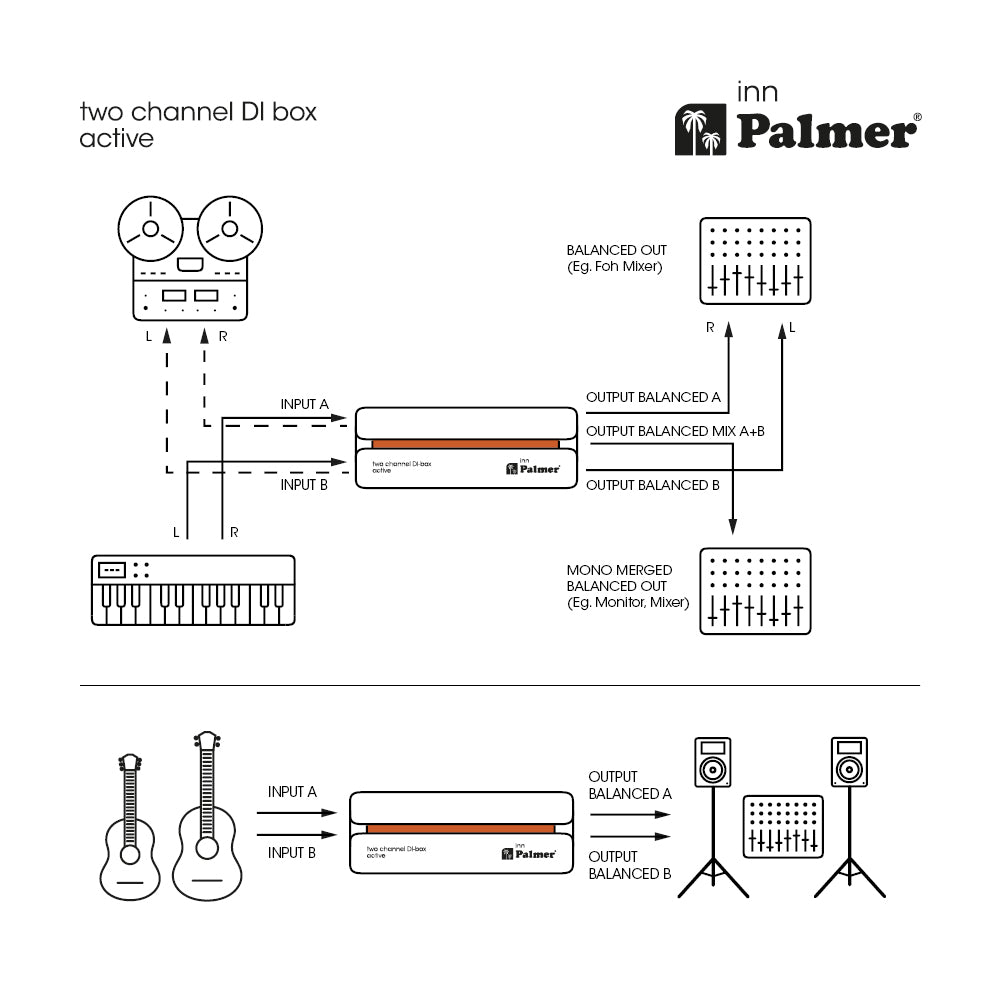

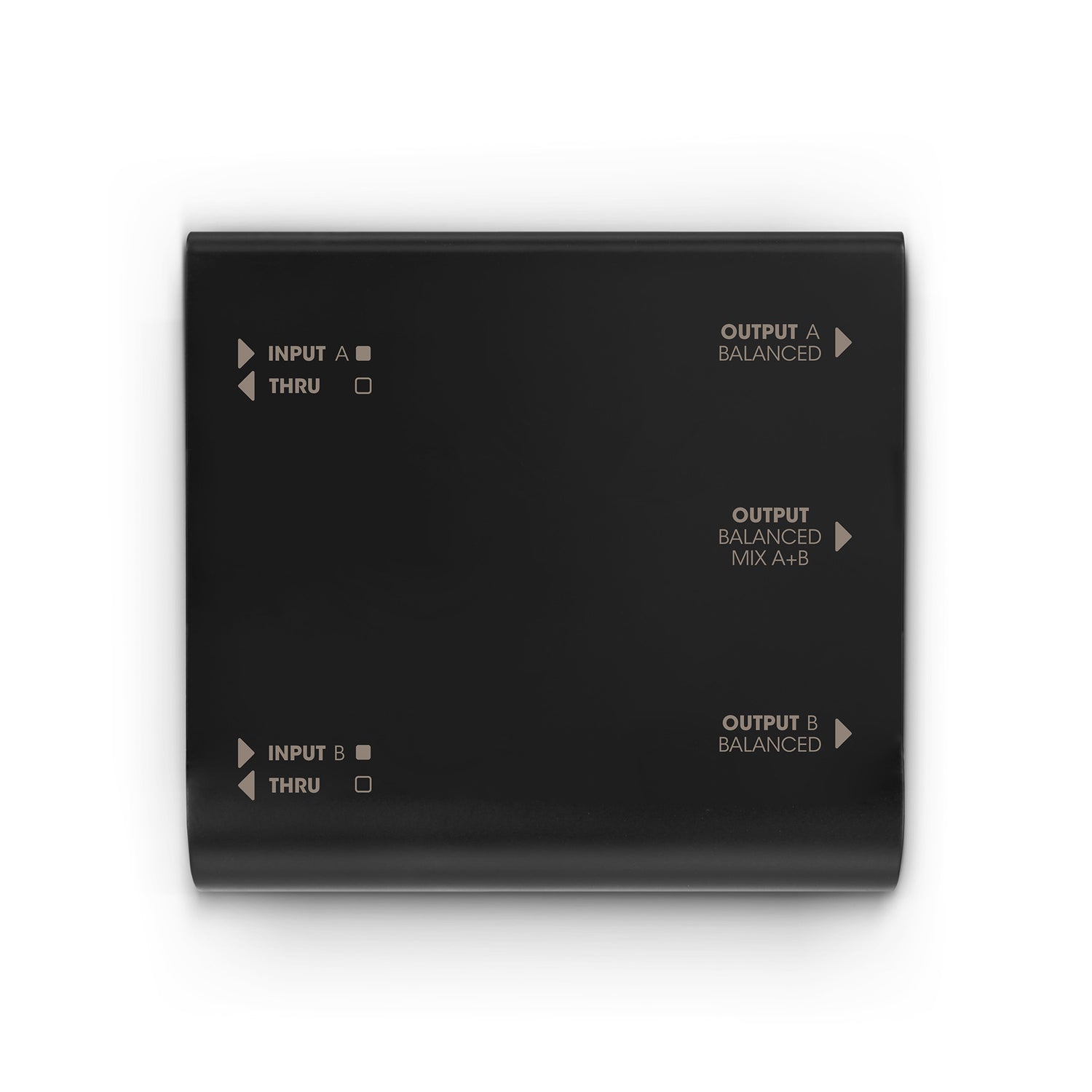

- Individual outputs per channel plus mono sum output containing the signal of both channels
- THRU connection for passing the input signal to the amplifier
- Handles even high-level inputs without distortion

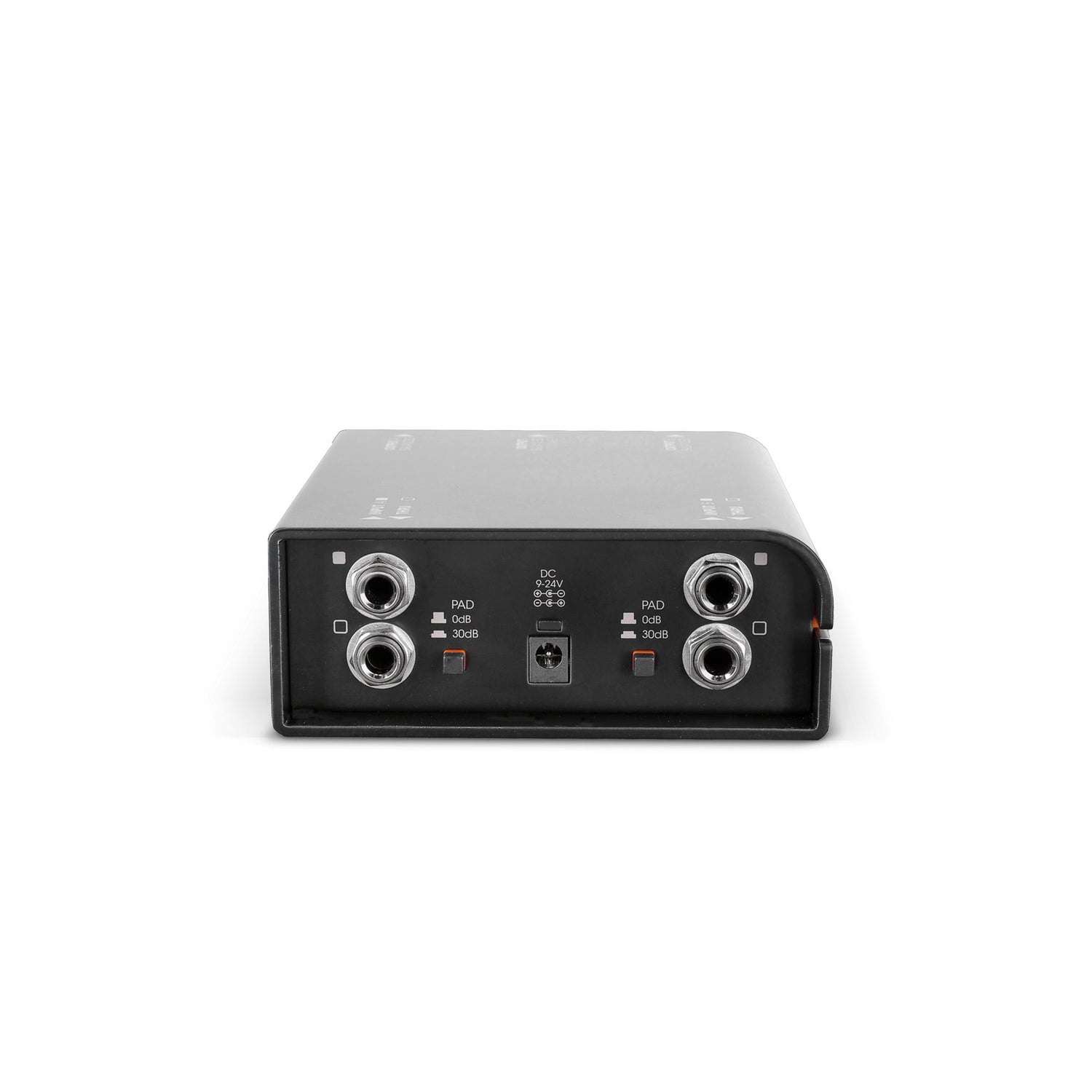

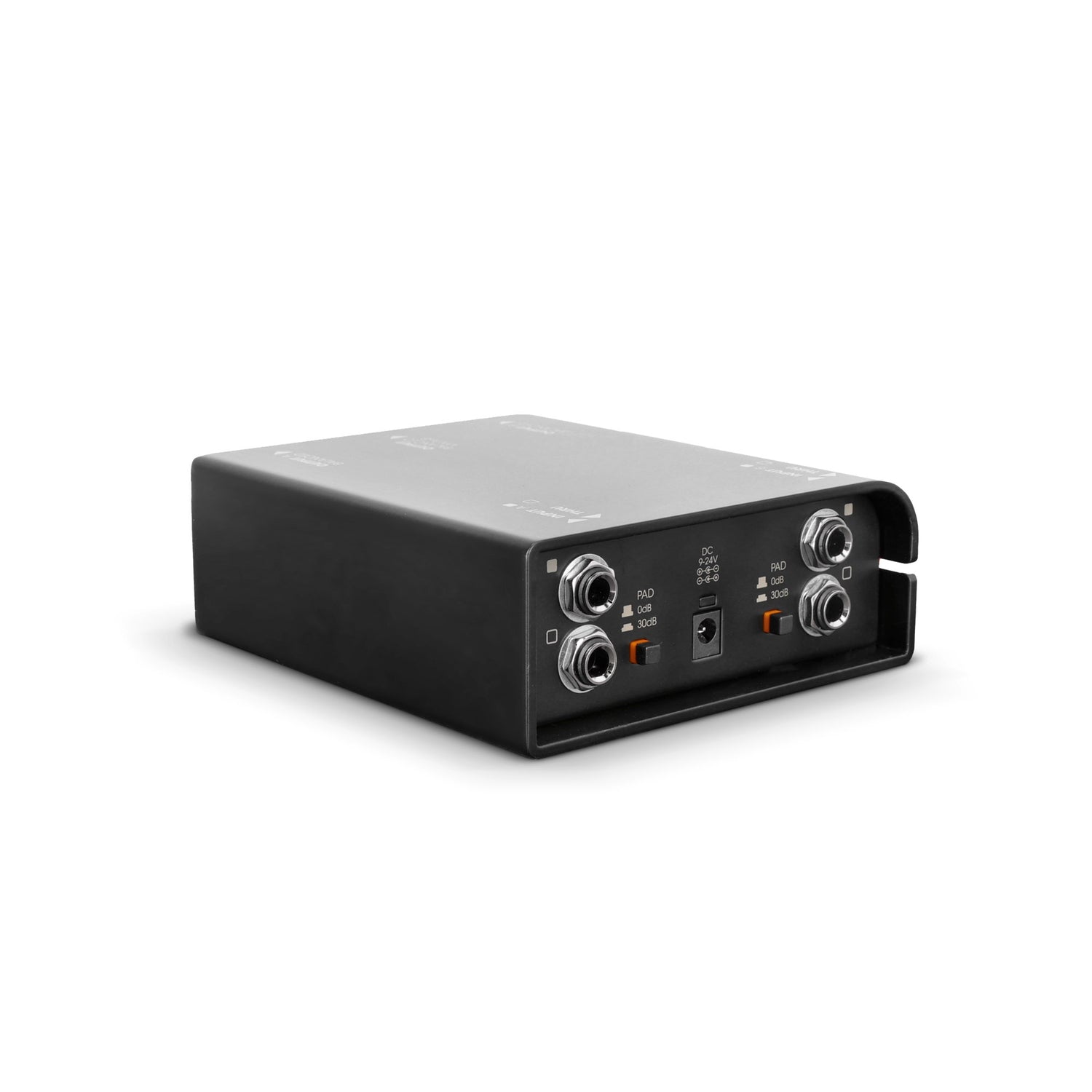

- Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
- Power supply via 9V battery or 48V phantom power unit
- Road-ready aluminium and steel casing

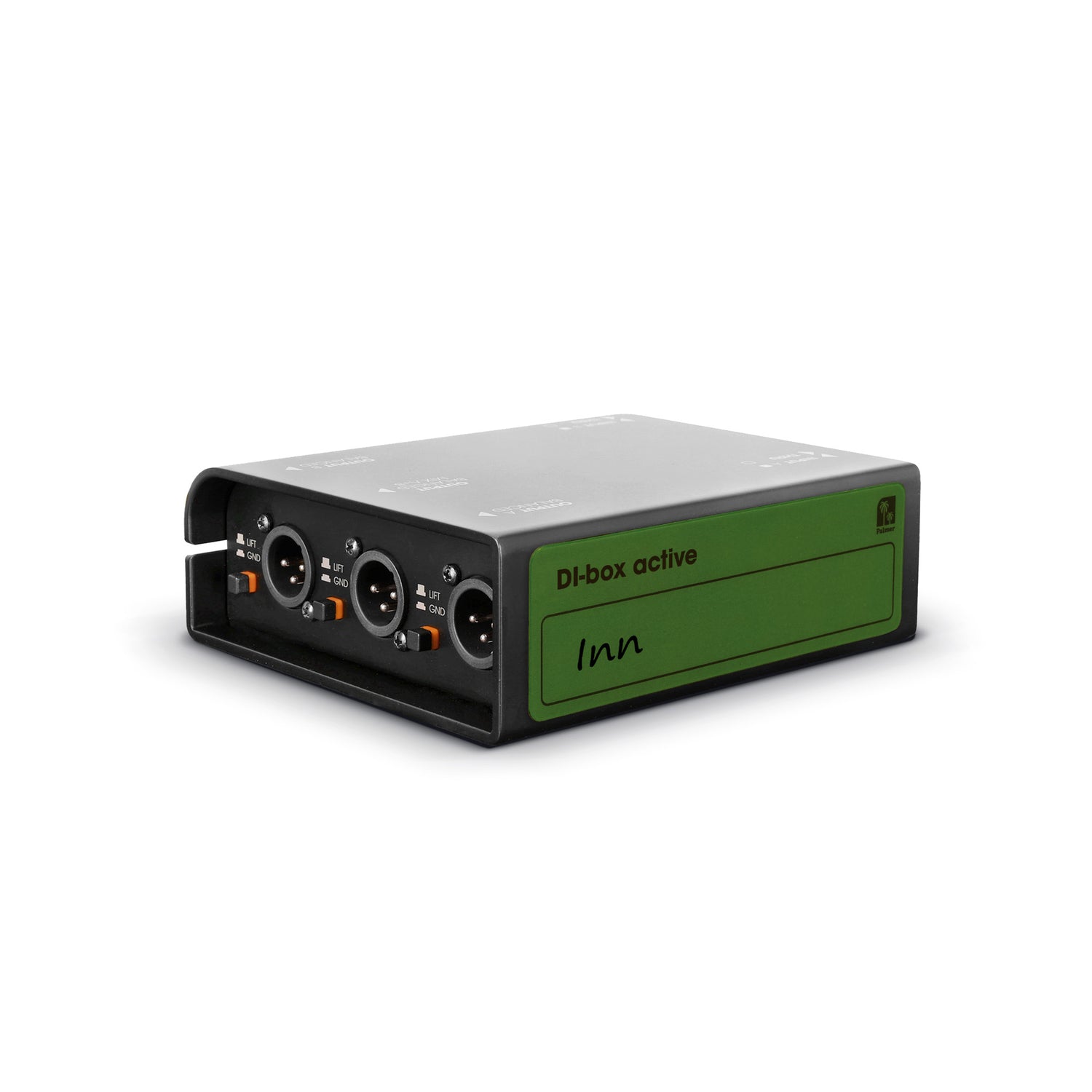

- Incl. rewritable tour label for attachment on to the back of the inn
- Engineered in Germany
General
| Type | Active |
| Included Accessories | Rubber feet |
| Included Accessories | Tour label |
| Isolated transformer | Yes |
| Transformer Ratio | 1:3 |
| Ground Lift | Yes |
| On/Off switch | No |
| Frequency response (±1 dB, rel. Avg) | 20 - 20,000 Hz |
| Number of inputs | 2 |
| Number of outputs | 2 |
| Number of channels | 2 |
Inputs
| Input signal type | Unbalanced |
| Input connector types | 6.3 mm Jack TS |
| Number of instrument inputs | 2 |
| Max. input level (< 1% THD, rel. 20 Hz) | -11 dBu |
| Max. input level (< 1% THD, rel. 1 kHz) | -11 dBu |
| Input impedance | 500 kΩ |
| Input pad | 0 dB |
| Input pad | 30 dB |
Outputs

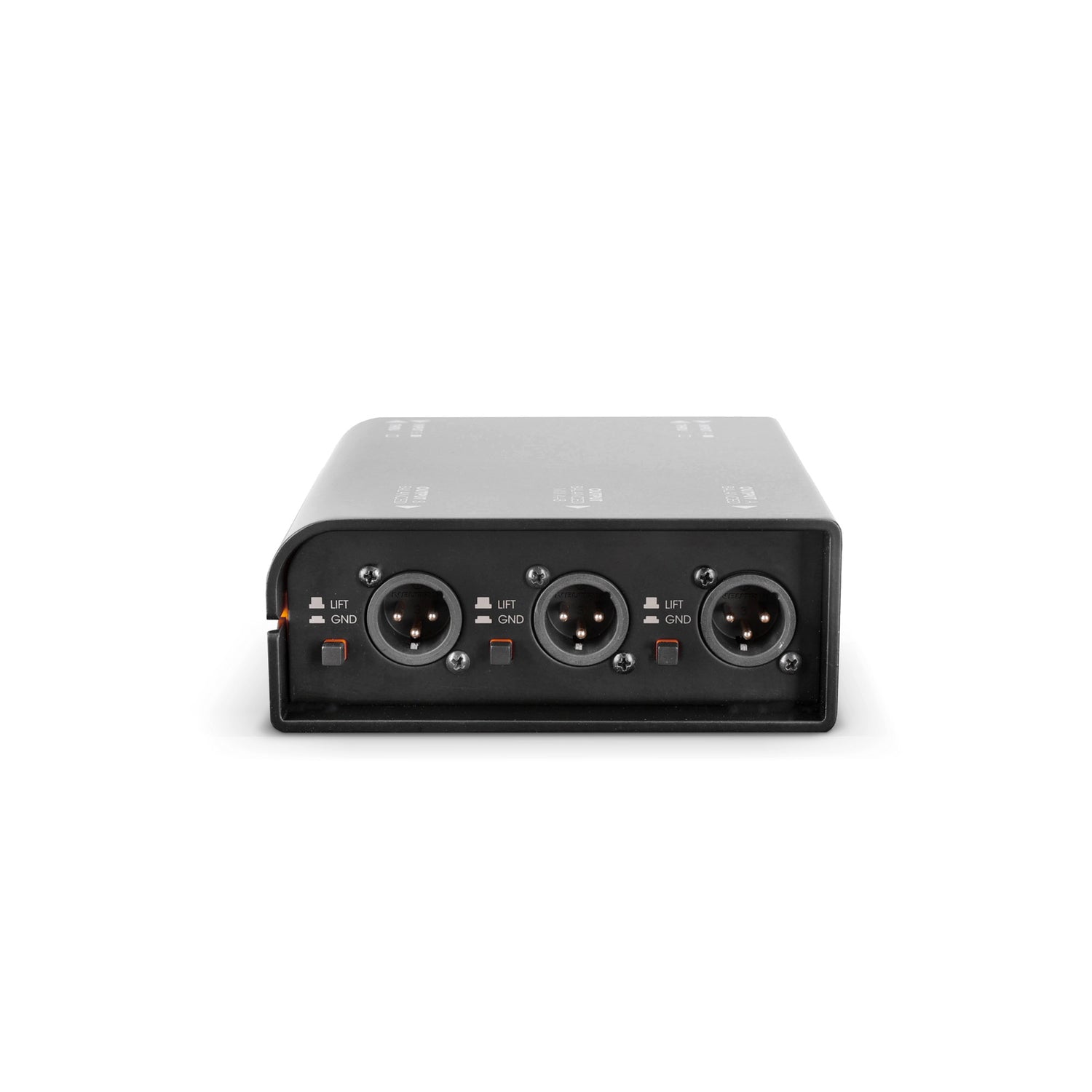

| Output signal type | Balanced |
| Output connector types | XLR 3-pole male |
| Linked outputs per channel | 1 |
Line output performance
| Max. output level | 5.5 dBu |
| Balanced output impedance (1 kHz) | 110 Ω |
Signal processing
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted) | 108 dB |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted) | 0.0013 % |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted) | 0.0028 % |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu) | 0.0017 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu) | 0.0017 % |
Mains operation
| Operation voltage | 48 V phantom power |
| Operation voltage | 9 V DC - 24 V DC (external power supply) |
| Rated power | 0.5 W |
Housing
| Chassis material | Aluminum continuous casting |
Environmental
| Ambient temperature | -20 - 70 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 140 mm |
| Height | 50 mm |
| Depth | 128 mm |
| Weight | 0.72 kg |
