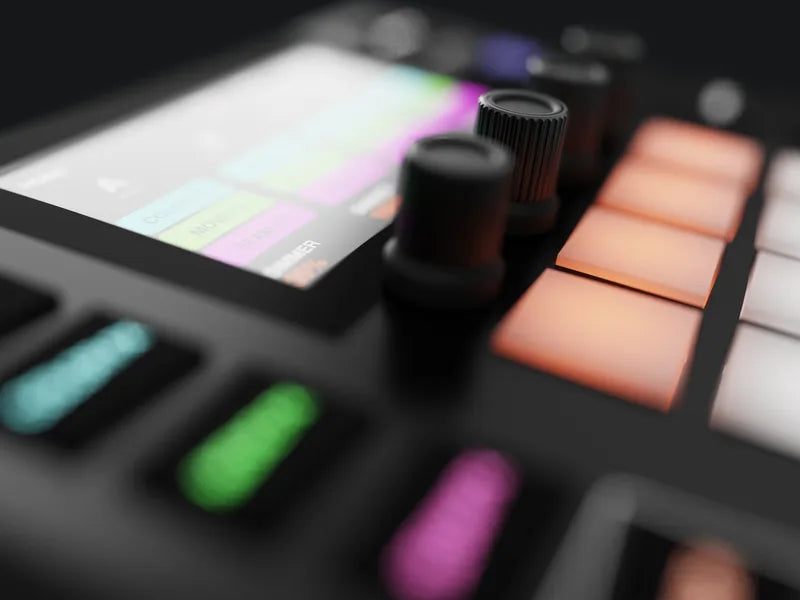

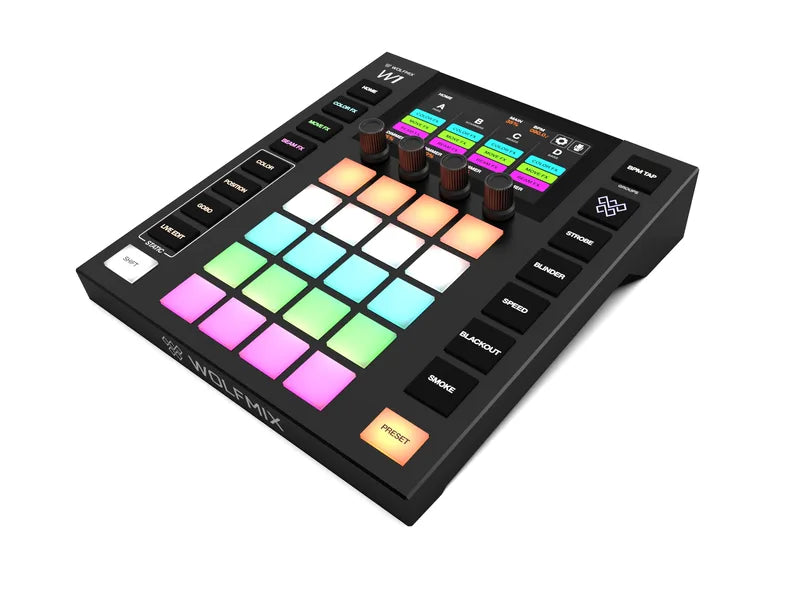

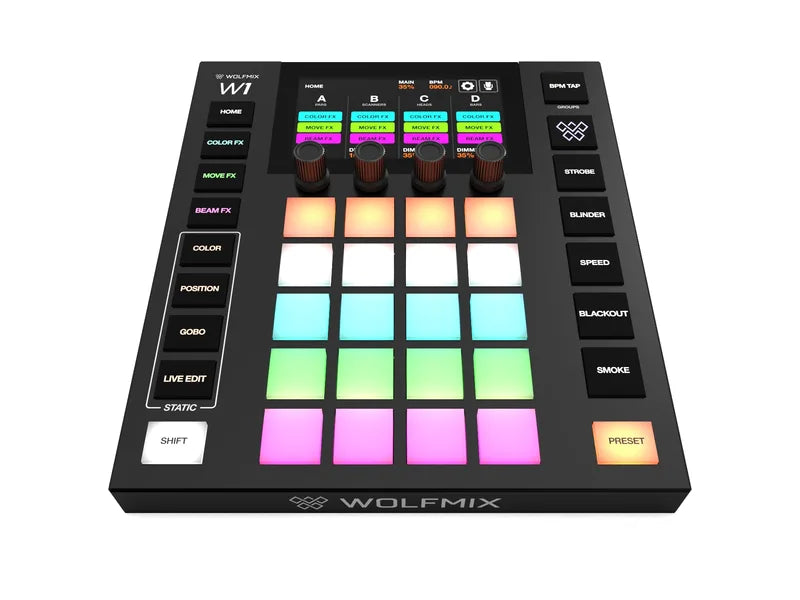

Wolfmix W1-MK2 DMX Mezclador de luces

Palettes & FX

• Color FX module with 8 effect types & 16 definable colors
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
• Static color palette with 10 user definable colors per group & gradient control
• Static position palette with 5 user definable positions per group with fade & fanning
• Gobo palette with 5 user definable gobos per group
• 40 namable live edit buttons with flash triggering mode and ‘Park’ function
• 100 namable presets for storing snapshots with hold and fade timings
• Preset playback cue list- all presets or per page of 20 presets

Control & Sync

• Group and master dimming with encoder acceleration
• Group FLASH, FULL and Blackout
• 16 bit Pan/Tilt control
• Multi-beam LED bar control
• FX music pulse sync from Microphone or Line-In
• FX BPM sync with Ableton Link, OS2L, BPM TAP & MIDI Clock
• Effect Speed, Phase, Order, Size, Fade, Fan & Flick
• Live control of move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels (add-on required)*
• WLINK - sync with another Wolfmix controller (add-on required)*
• Trigger presets and control group dimmers with a MIDI controller

Built-in tools

• Fixture Builder
• Fixture calibration tool, to limit the area of moving fixtures
• X-Y touch controlled positioning grid
• RGBW touch controlled color picker
• 8-step real time sequencer for creating beam and move FX
• Live view of DMX levels with default value override and DMX channel tester
• Beam Editor to override Min and Max values used in generated FX

Other neat features

• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB (add-on required)*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis

*some features require an add-on purchase available through the WTOOLS appTechnical:

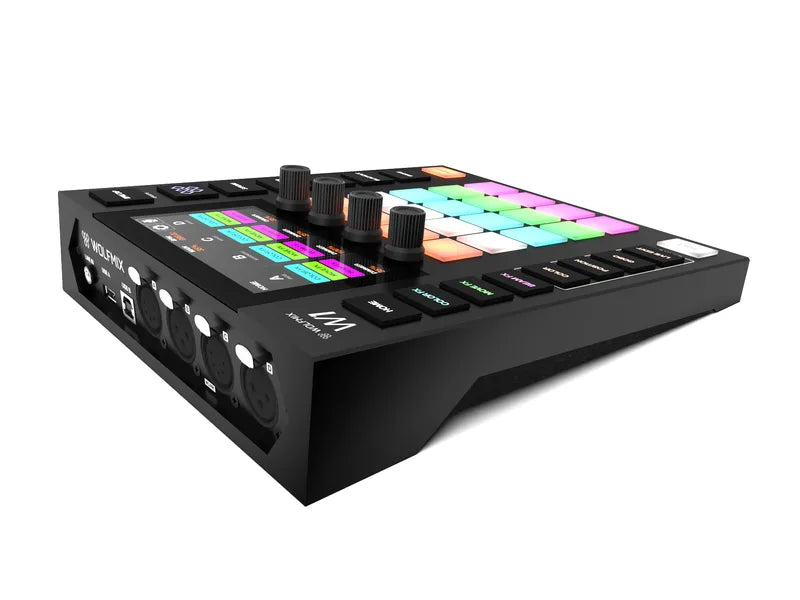

Housing

• ABS Plastic
• Powder-coated steel base plate with 100mm VESA (M4 6mm max)
• Powder-coated steel reinforced back plate

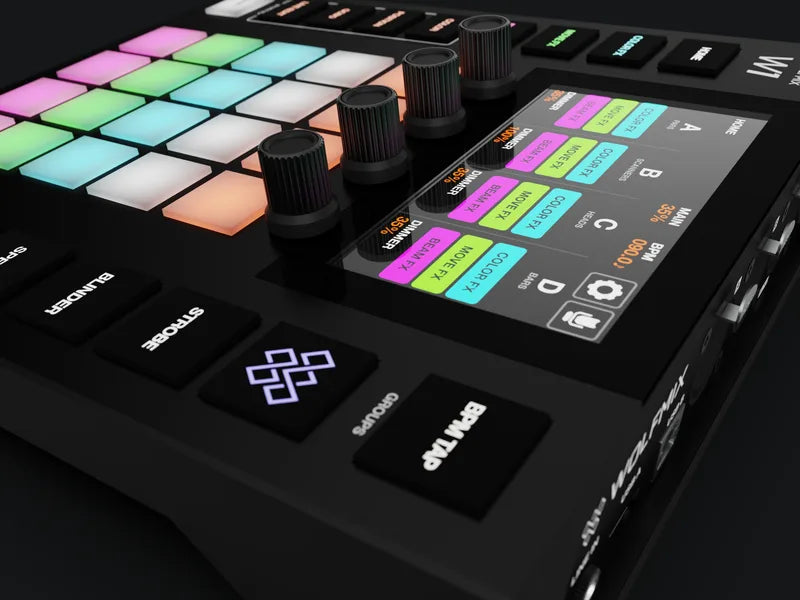

Display

• 4.3” Color TFT with tinted glass
• Capacitive touch

Encoders

• Alloy encoder caps
• Incremental push with acceleration

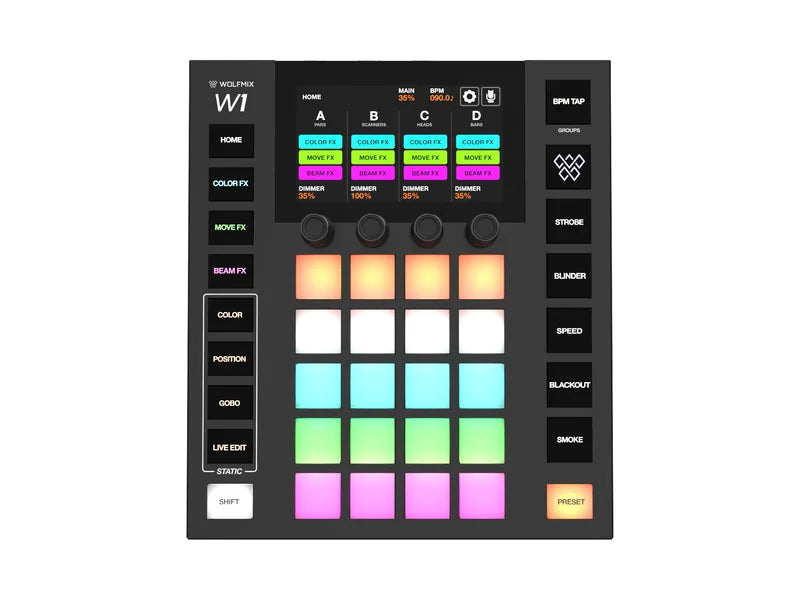

Button pads

• 37 Silicone buttons with matt oil finishing
• LED color backlit

Processing

• 220Mhz CPU with ARM core
• 8MB RAM
• 16MB Flash

Audio

• Omnidirectional electret mic
• 3.5mm Jack Line-In
• Analog adaptive peak detector

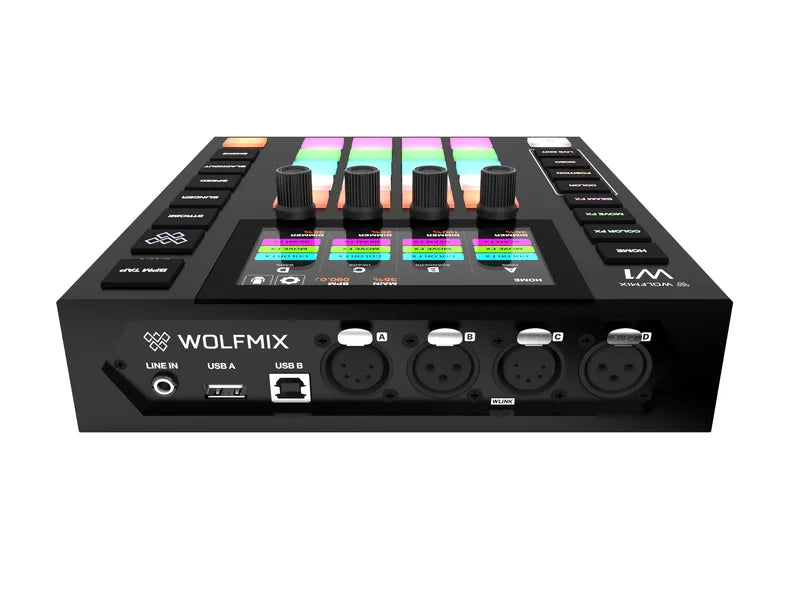

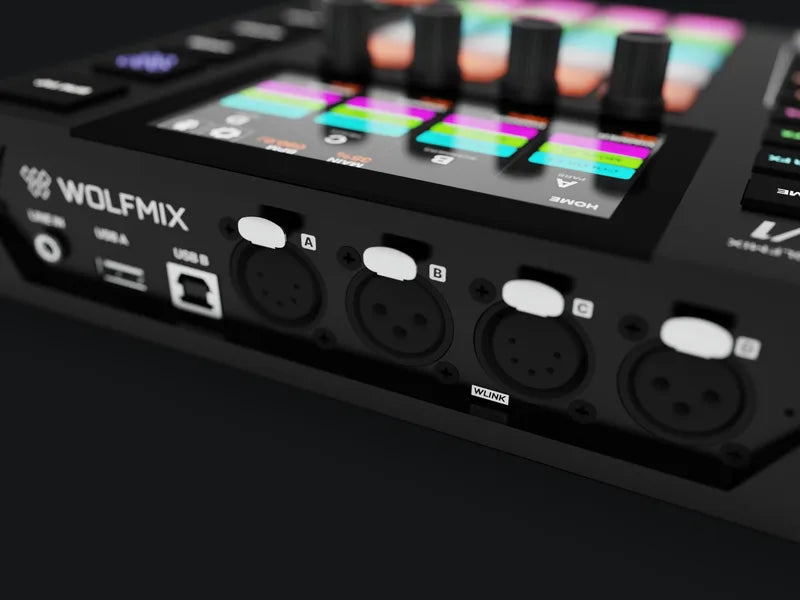

DMX

• 2x 3pin DMX OUT XLR connectors
• 1x 5pin DMX OUT XLR connector
• 1x 5pin DMX IN/OUT XLR connector with WLINK

USB

• USB-B connector- 900ma required (USB3 rating)
• USB-A connector (MIDI/MSD)

Size & weight

• 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
• 1070g / 2.36lb

Manual: W1 Reference Manual - EN - 4.7 Mb
