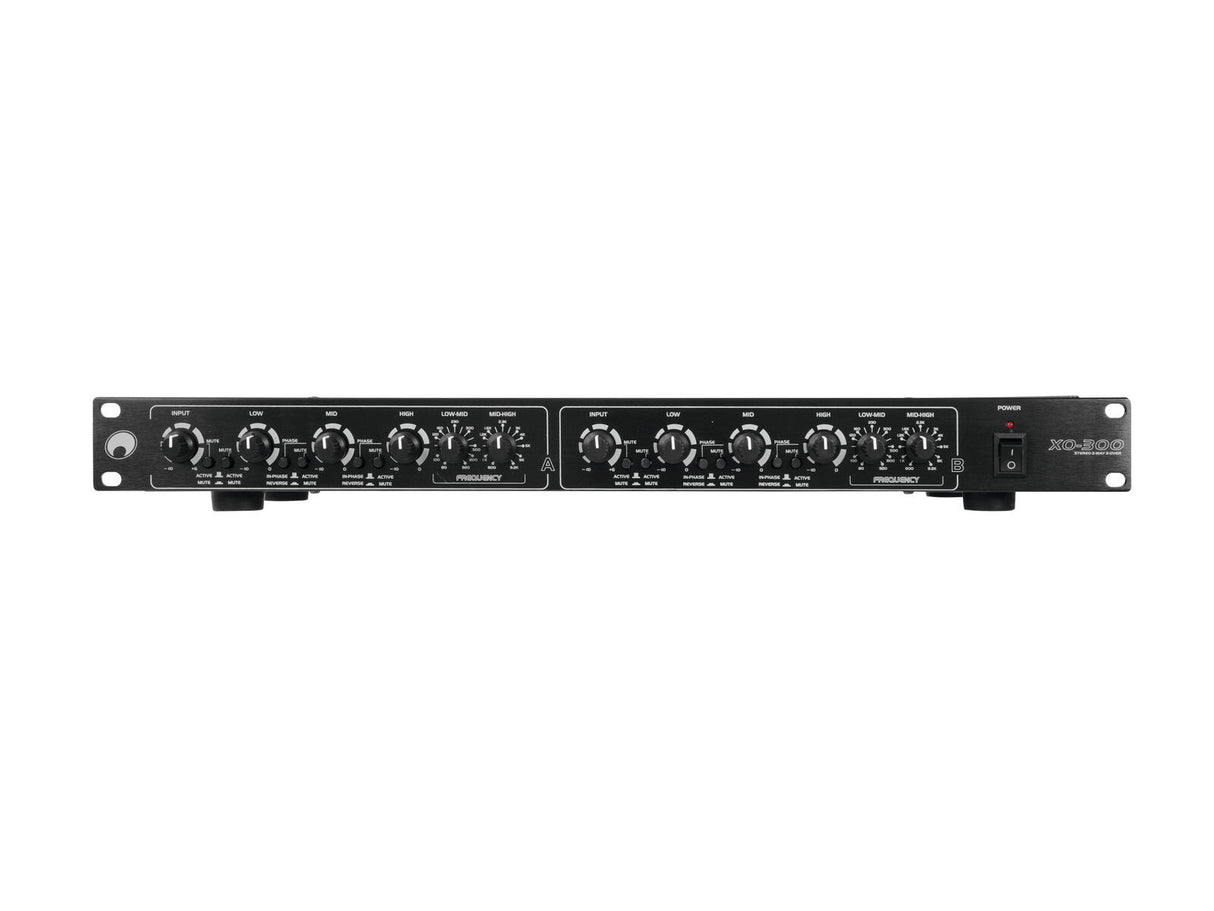

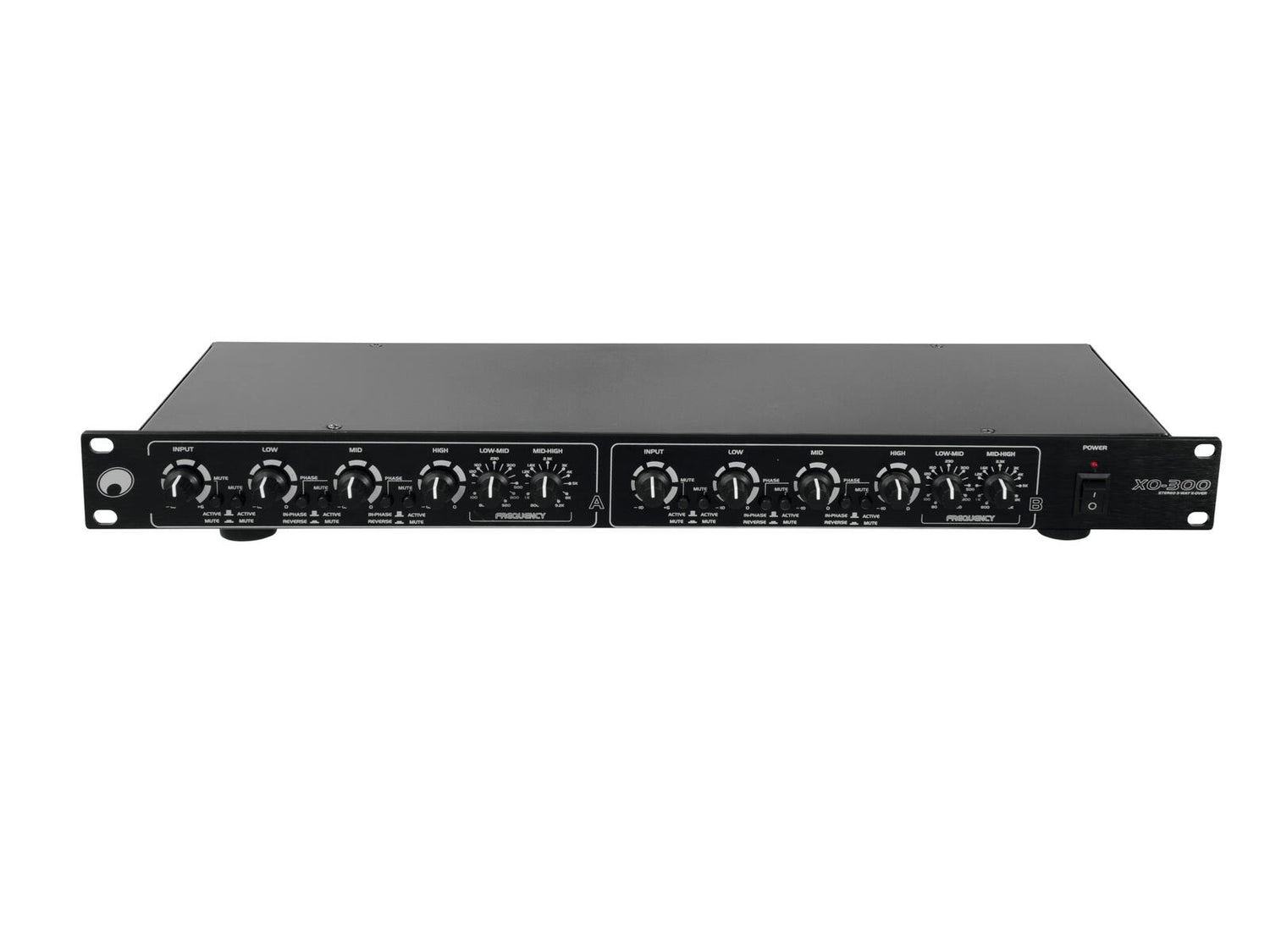

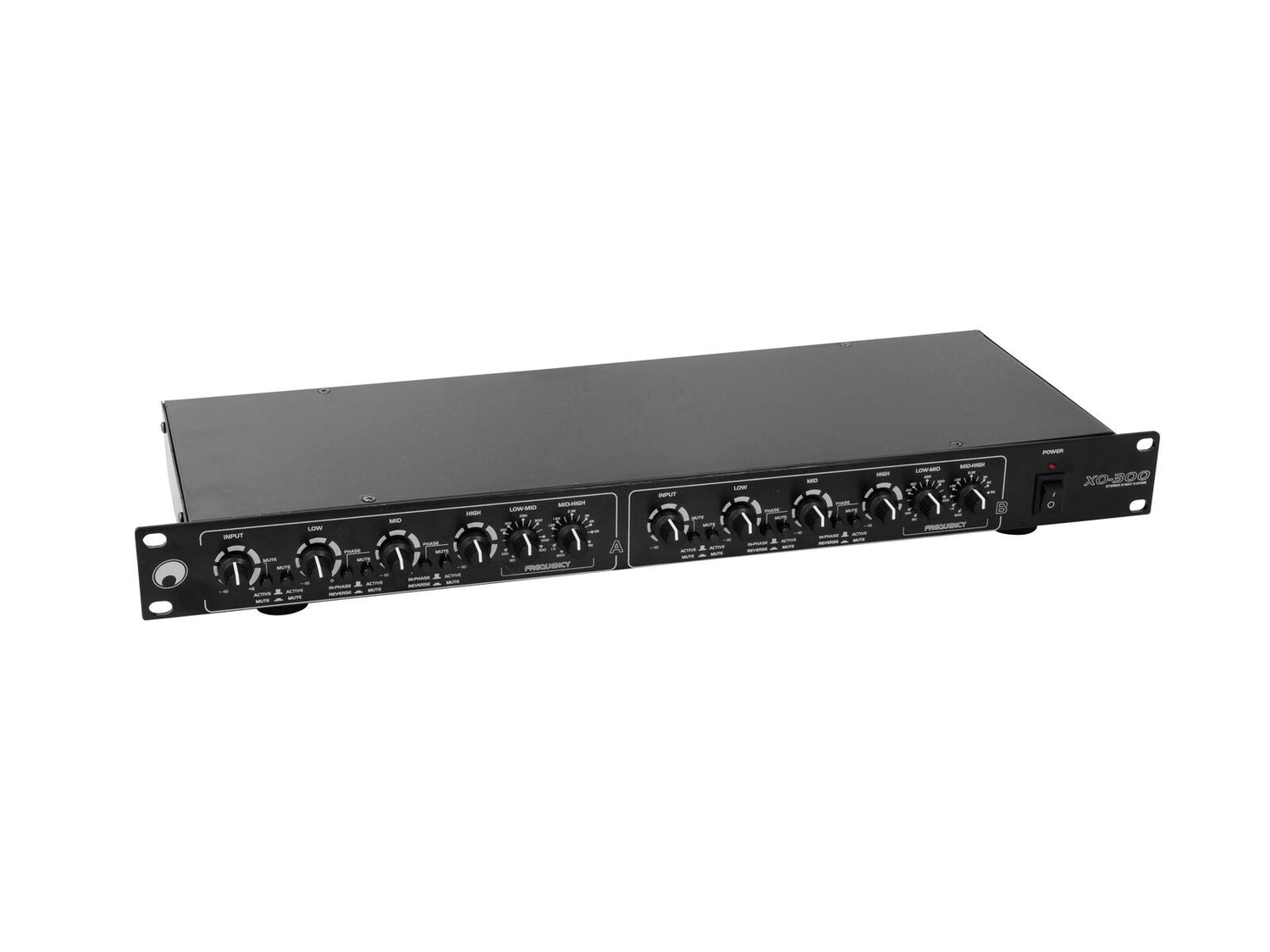

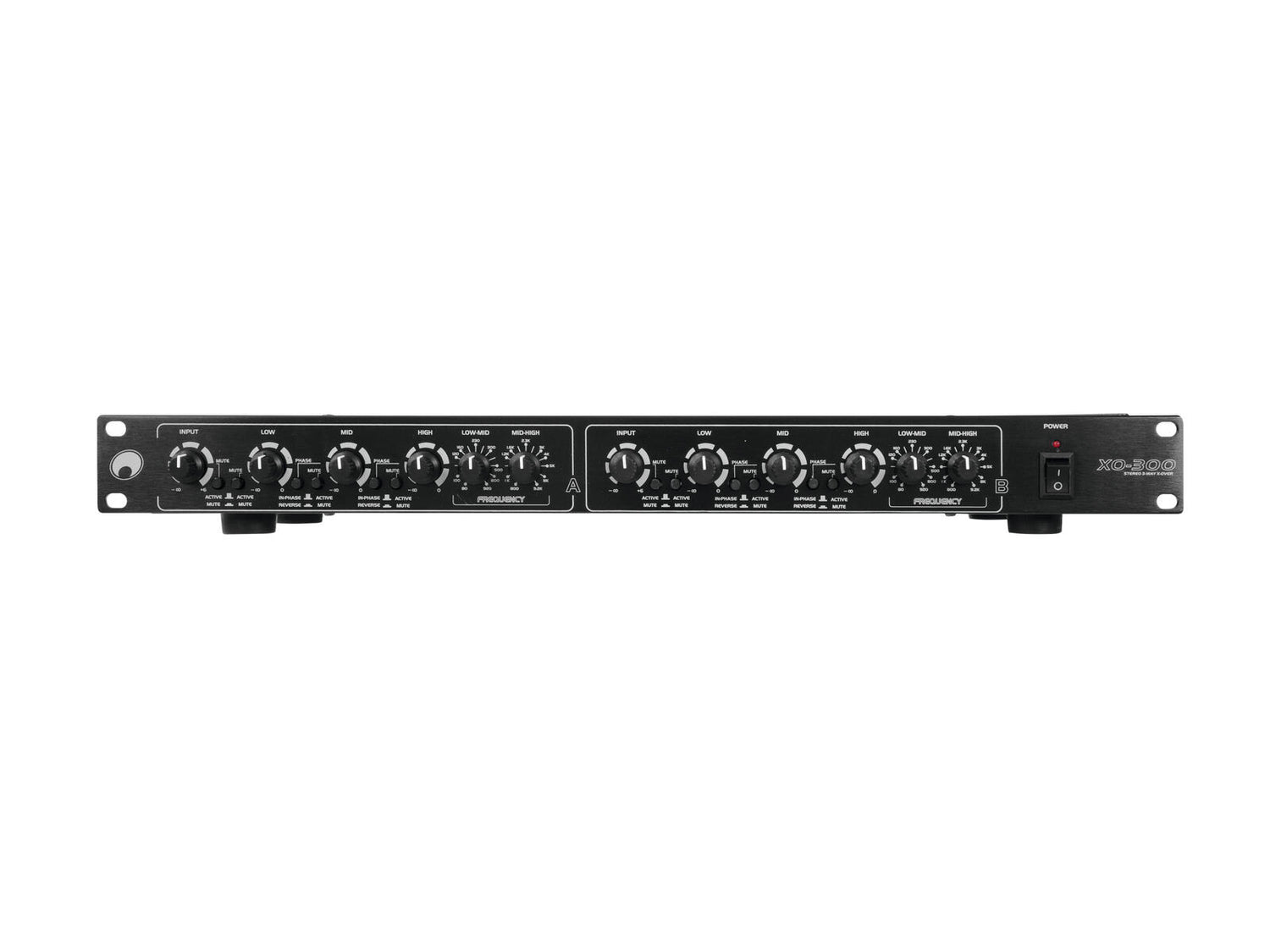

OMNITRONIC XO-300 Active Crossover

Name: OMNITRONIC XO-300 Active Crossover
Brand: OMNITRONIC
SKU: STE-10355636
Price: 131.95 EUR
Availability: BackOrder

1 5

€131,95

Incl. IVA • B2B excl. IVA

Almacén externo – entrega en 10–14 días laborables

Envío €10 (envío gratis a partir de €199)

Otros clientes también compraron

Micrófono Filtro de Reflexión AS-01 €116,95

En stock (solo 2 uds.) · Entrega en 3–4 días laborables
Cable de extensión IEC (5M) €11,95

En stock (solo 2 uds.) · Entrega en 3–4 días laborables
Cable de conexión IEC (0,9m) €5,95

En stock (10+ uds.) · Entrega en 3–4 días laborables
Cable de conexión IEC (0,6m) €5,95

En stock (solo 2 uds.) · Entrega en 3–4 días laborables
Omnitronic Molly-6 (6,5") €161,95

En stock (solo 2 uds.) · Entrega en 3–4 días laborables

Active crossover, stereo 3-way operation

3-way stereo operation
Variable 24 dB per octave Linkwitz-Riley filters
Individual output level controls for each frequency range
Continuously adjustable crossover frequencies low/mid and mid/high
Individual muting for input signal and each frequency range
CD horn EQ for smoother treble selectable
Switchable low and mid phase
Input level adjustable
Balanced XLR inputs and outputs
(19") 48.3 cm rack installation 1 U
For application areas such as: Installation; clubs/dancing school; stage; homerecording and studios; band/rehearsal room

Scope of delivery

Power supply:	230 V AC, 50 Hz
Power consumption:	5 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
S/N ratio:	>100 dB
THD:	<0.05 % at 1 kHz
Impedance:	Input: 50 kOhm , bal. Input: 25 kOhm , unbal. Output: 200 Ohm , bal. Output: 100 Ohm , unbal.
Gain:	Input: - ∞ to + 6 dB Output: - ∞ to + 0 dB
Phase invert:	Per output, switchable
Crosstalk:	>80 dB
Control elements:	Level control per channel, crossover frequency, power switch, mute control
Status LED:	Power

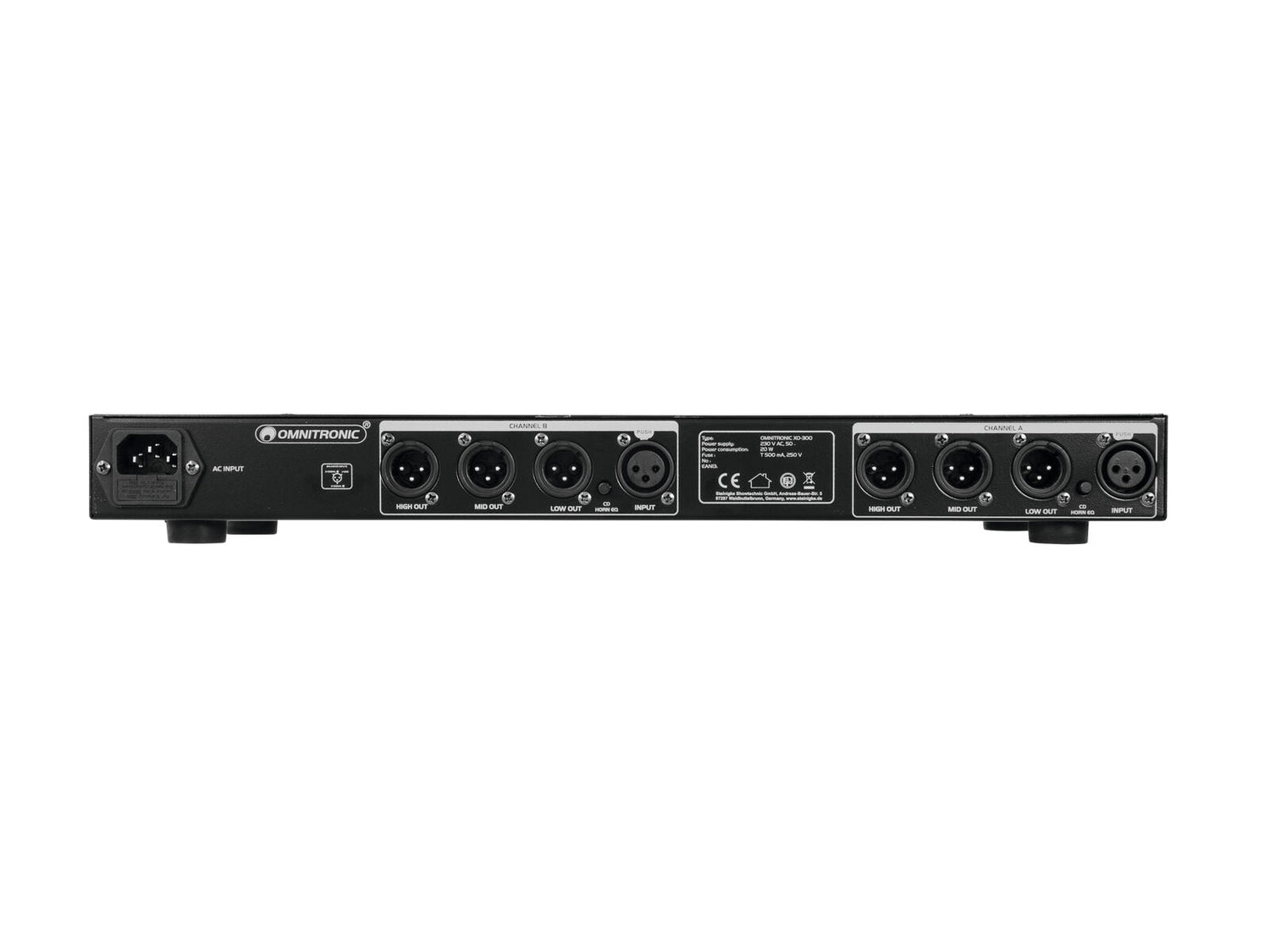

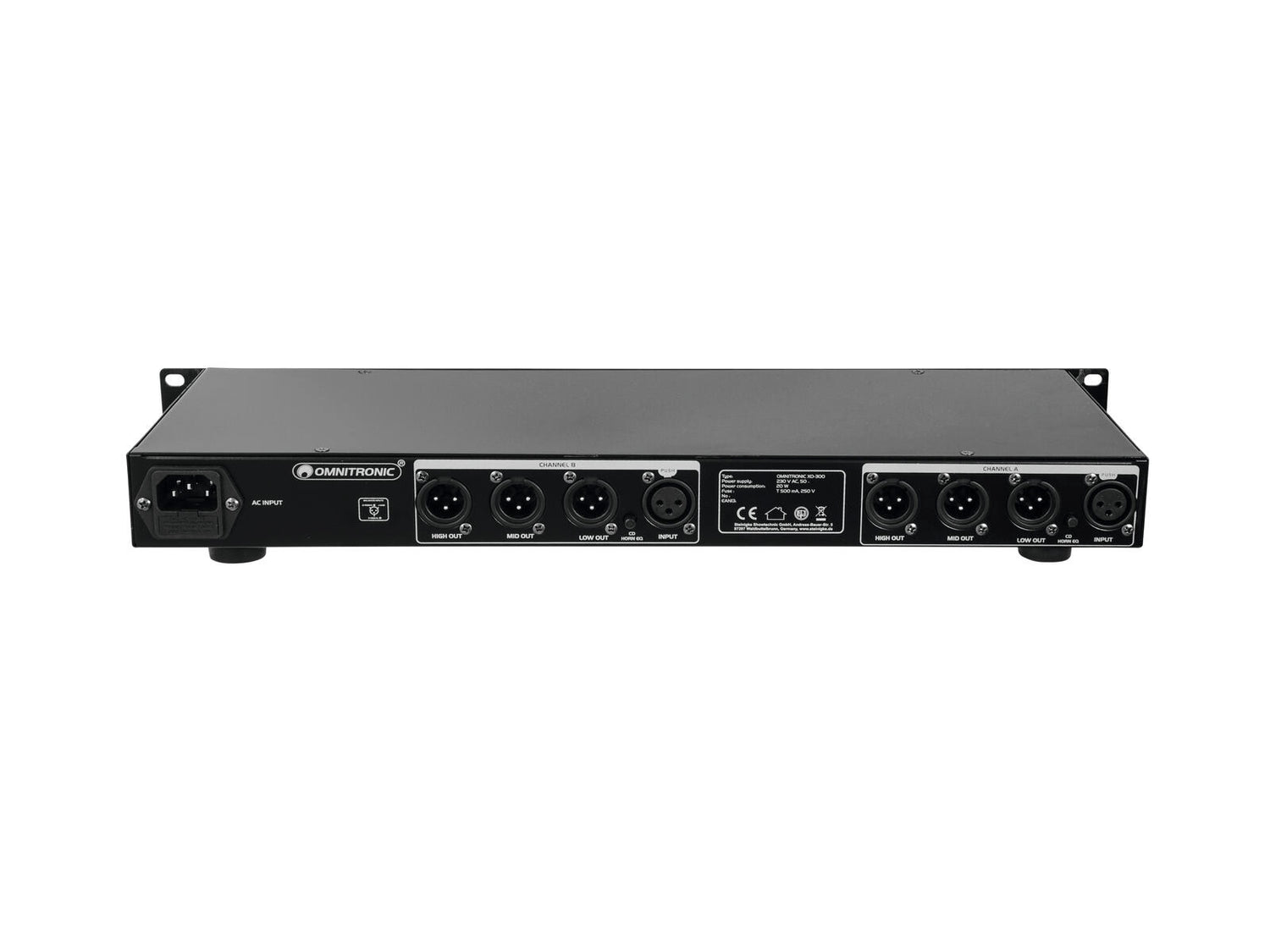

Connections:	Input: line via 2 x 3-pin XLR (F) mounting version Output: line via 6 x 3-pin XLR (M) mounting version
Crossover frequency:	Mid/high 800-9200 Hz, 24db/oct , Linkwitz-Riley Low/mid 80-920 Hz, 24db/oct , Linkwitz-Riley
Max. level:	Input: +22 dBu Output: +22 dBu
Material:	Metal
Color:	Black
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48.3 cm Depth: 18.7 cm Height: 4.45 cm
Weight:	2.37 kg
