OMNITRONIC PORTY-8A Wireless PA System

The PORTY-8A is an ultra-portable, battery-powered speaker with 120 watts output power that delivers professional, high-quality sound. The all-in-one 8" PA system offers a full-featured 4-channel mixer with DSP effects and multiple connection options for microphones, instruments and line sources, as well as a registration-free UHF wireless receiver with dynamic handheld microphone. The latest Bluetooth 5.0 technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and links two PORTY-8A systems for stereo setups.The powerful battery provides easily over 6 hours of continuous music playback without interruption for garden parties, singers/songwriters, karaoke, trade shows, fitness instructors and presentations. The 8 kg lightweight plastic enclosure comes equipped with a double flange for tripod mounting and tilts back for monitor applications. You can even charge your personal devices via the USB charging port and place them in the built-in tablet stand!

Mobile 8" PA system with battery operation, Bluetooth, DSP and wireless microphone

• Powerful sound in an ultra-compact package (114 dB max. SPL)
• Works great as primary PA system, stage monitor and practice amp
• 4-channel mixer
• Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
• UHF receiver unit and matching wireless microphone
• Lightweight plastic housing
• Cordless, flexible and versatile
• Battery operation up to 6.5h at 50% volume; battery operation up to 3.5h at 100% volume
• Integrated automatic charging of the battery and status indicator
• Digital signal processor 96kHz, 24 bit
• DSP presets: FLAT; DJ; LIVE
• Control via Bluetooth
• Bluetooth: operating range up to 20m
• UHF 863 - 865 MHz License-free and approved in Europe
• Dual flange
• Black metal grille
• With tablet holder
• Rugged carrying handle
• Application possibility: Standing; monitoring; on stand
• For application areas such as: Mobile use; mobile djs / entertainer; small rental; product presentations and lectures

Scope of delivery

• 1 x compact cabinet speaker
• 1 x microphone
• 1 x power cord
• 1 x user manual
• 1 x declaration of conformity
• 2 x battery
• 1 x battery pack

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	Max. 220 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version (provided) Battery/battery pack
Cable length:	1.5 m detachable
Device fuse:	5 x 20 mm, T 3.15 A fuse replaceable
Battery pack type:	1 x lithium ion 22.2 V, 4400 mAh, 97.68 Wh
Battery pack:	Battery operation up to 6.5h at 50% volume Battery operation up to 3.5h at 100% volume Recharging time 4h
Power:	120W RMS
Number of channels:	4
Frequency range:	45 - 18000 Hz
Max. SPL:	114 dB
DSP:	Digital signal processor 96kHz, 24 bit
DSP presets:	FLAT; DJ; LIVE
Control:	Bluetooth
Bluetooth:	Version: 5 with stereo link (TWS)
Bluetooth device name:	OMNITRONIC PORTY-8A
Range:	Bluetooth: range up to 20m
Frequency band:	UHF 863 - 865 MHz
Housing color:	Black
Attachment system:	Dual flange: Ø 35mm
Circuitry:	Class D

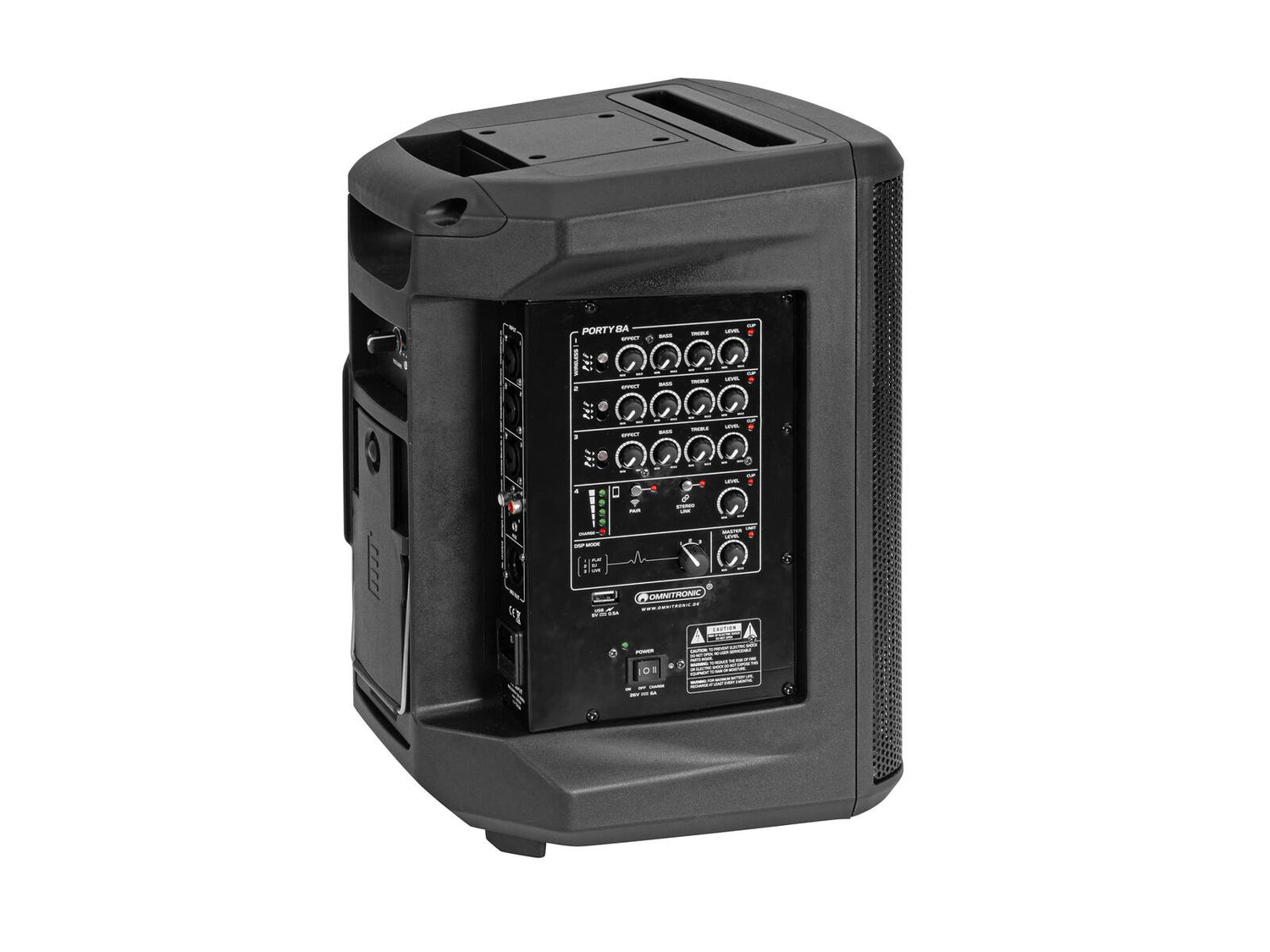

Control elements:	Power switch, Input sensitivity switch, Master control, level control per channel, echo effect control; connect
Connections:	Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via RCA (F) mounting version Input: line via 3.5 mm jack (stereo) mounting version Output: line via 3-pin XLR (M) mounting version
Channels:	Input channel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via rotary dial, 2-band tone control EQ
Input channels:	1 x stereo via RCA or jack plug or Bluetooth, channel control via rotary dial
Speaker:	Woofer 8" with ferrit magnet 8 x compression tweeter highs 1.35" with ferrit magnet
Type of speaker:	Wireless PA system
Carrying handle:	1 pc/pcs
Material:	Plastic
Dimensions:	Width: 29 cm Depth: 26.3 cm Height: 39.3 cm
Weight:	8.65 kg
