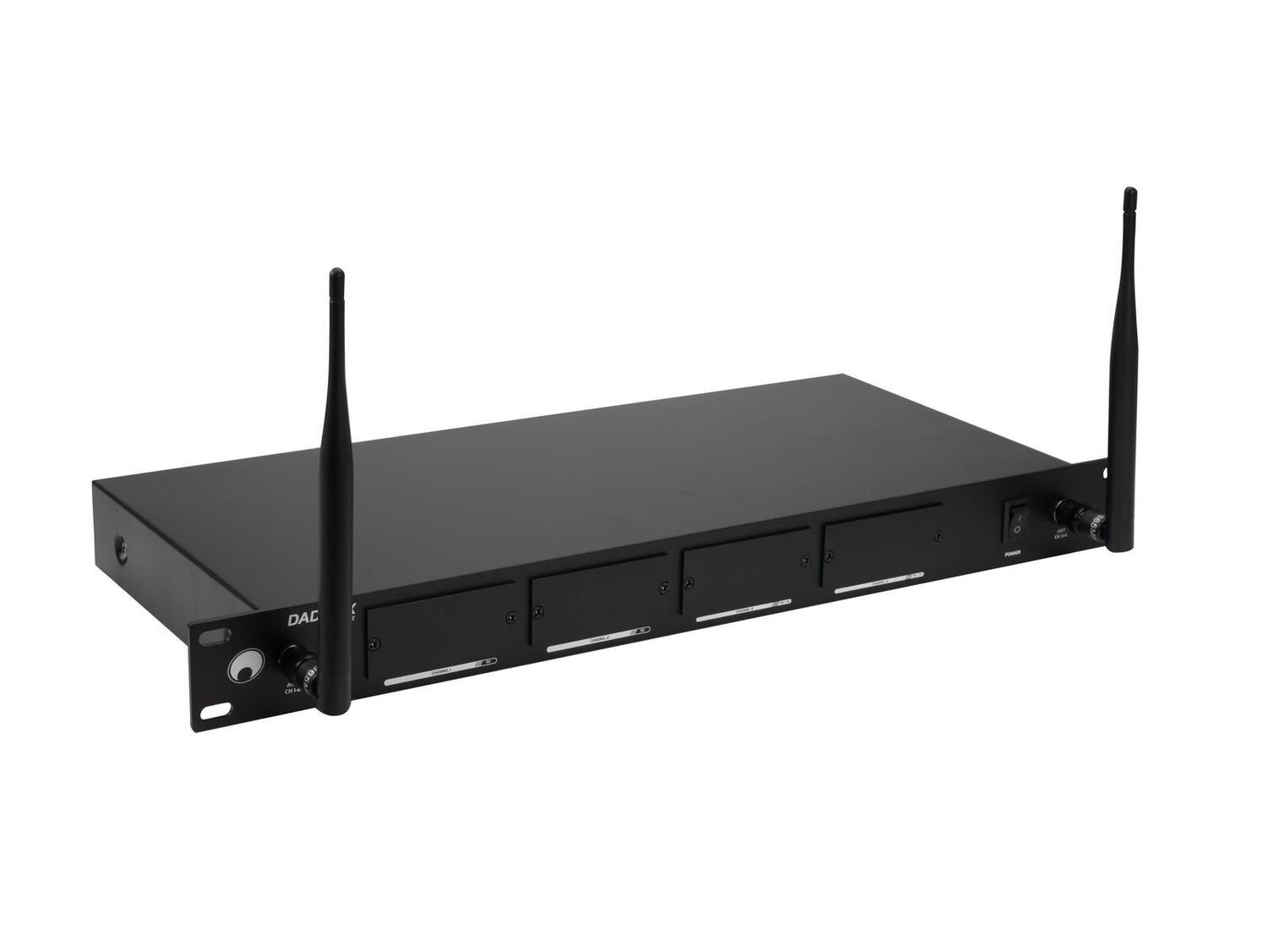

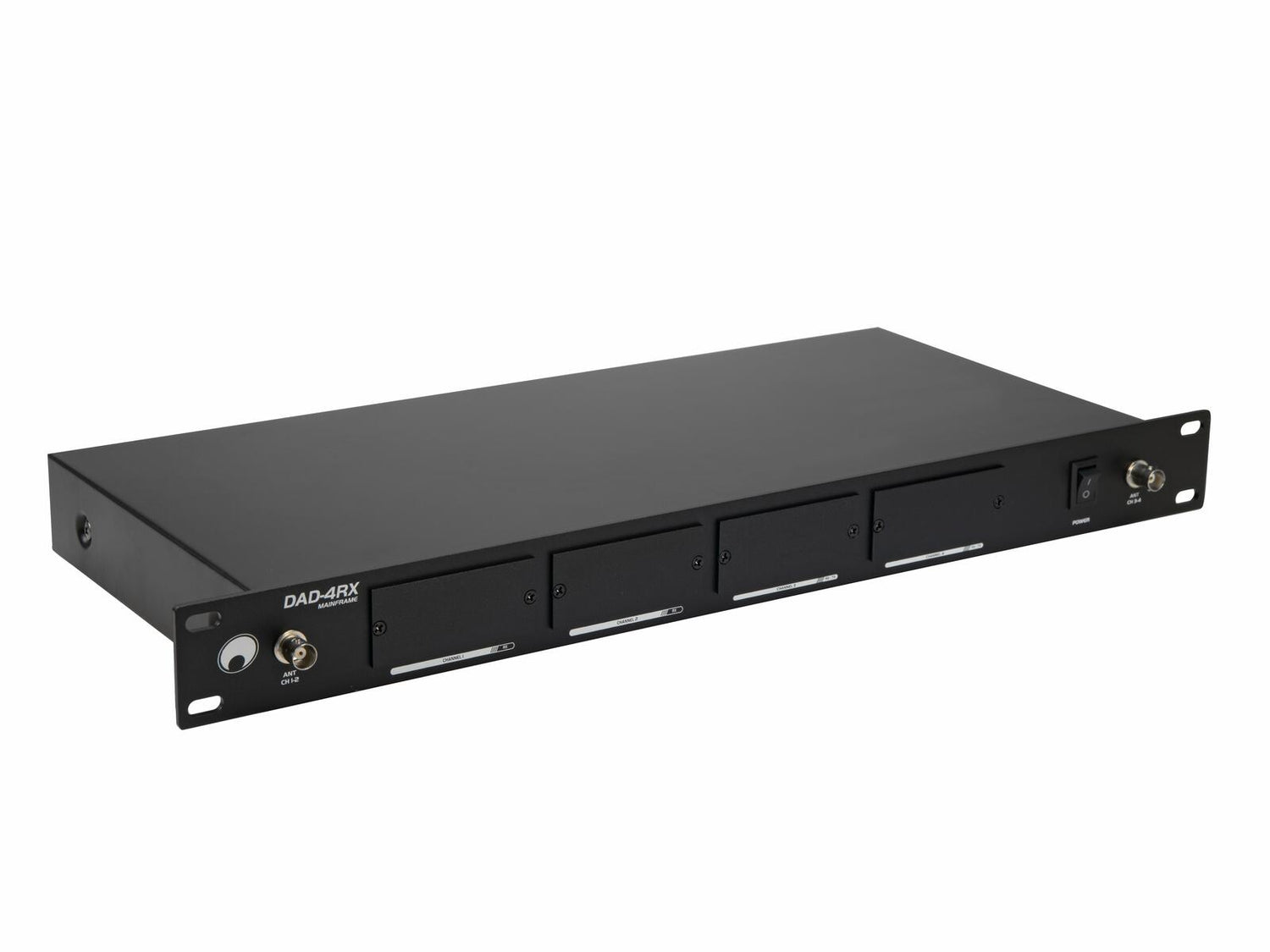

OMNITRONIC DAD-4RX 4-channel Receiver Housing for MOM/DAD Modules
1
de
5
Cargando...
€75,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío €10 (envío gratis a partir de €199)
Descripción
Descripción
4-channel housing for wireless modules of the MOM and DAD series
- 4 insert slots for receiver and transmitter modules of the MOM and DAD series
- Supports the WMT/R-2M wireless system
- Balanced XLR output per channel
- 2 AUX inputs (3.5 mm jack) for channel 3 and 4
- Rugged metal housing
- (19") 48.3 cm rack installation 1 U
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe

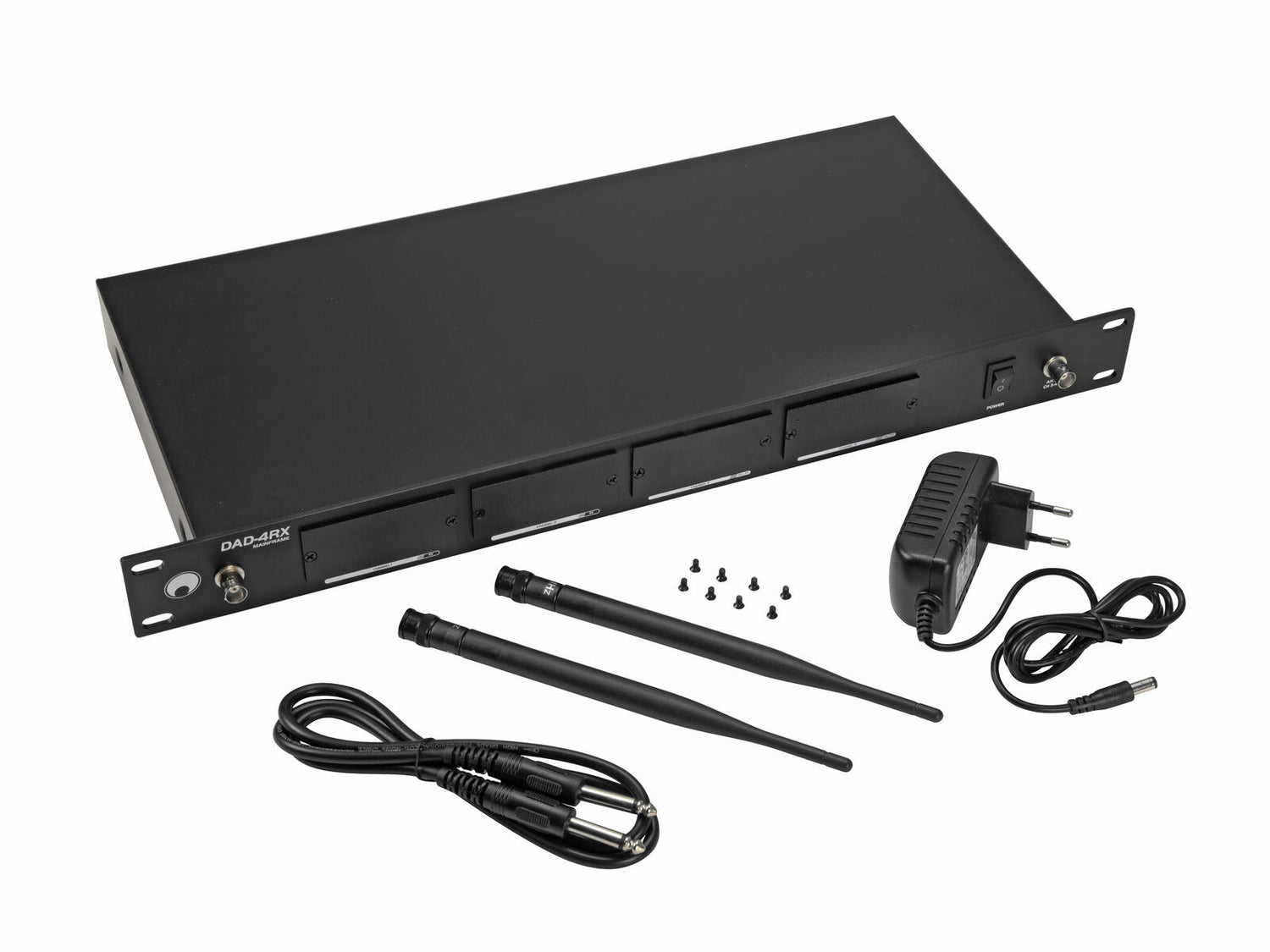

Scope of delivery
- 1 x device
- 2 x antenna
- 1 x external mains adapter
- 8 x screw
- 1 x jack cable
- 1 x user manual
- 1 x declaration of conformity
| Type: | Audio transmission |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | Max. 6 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 4 |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |

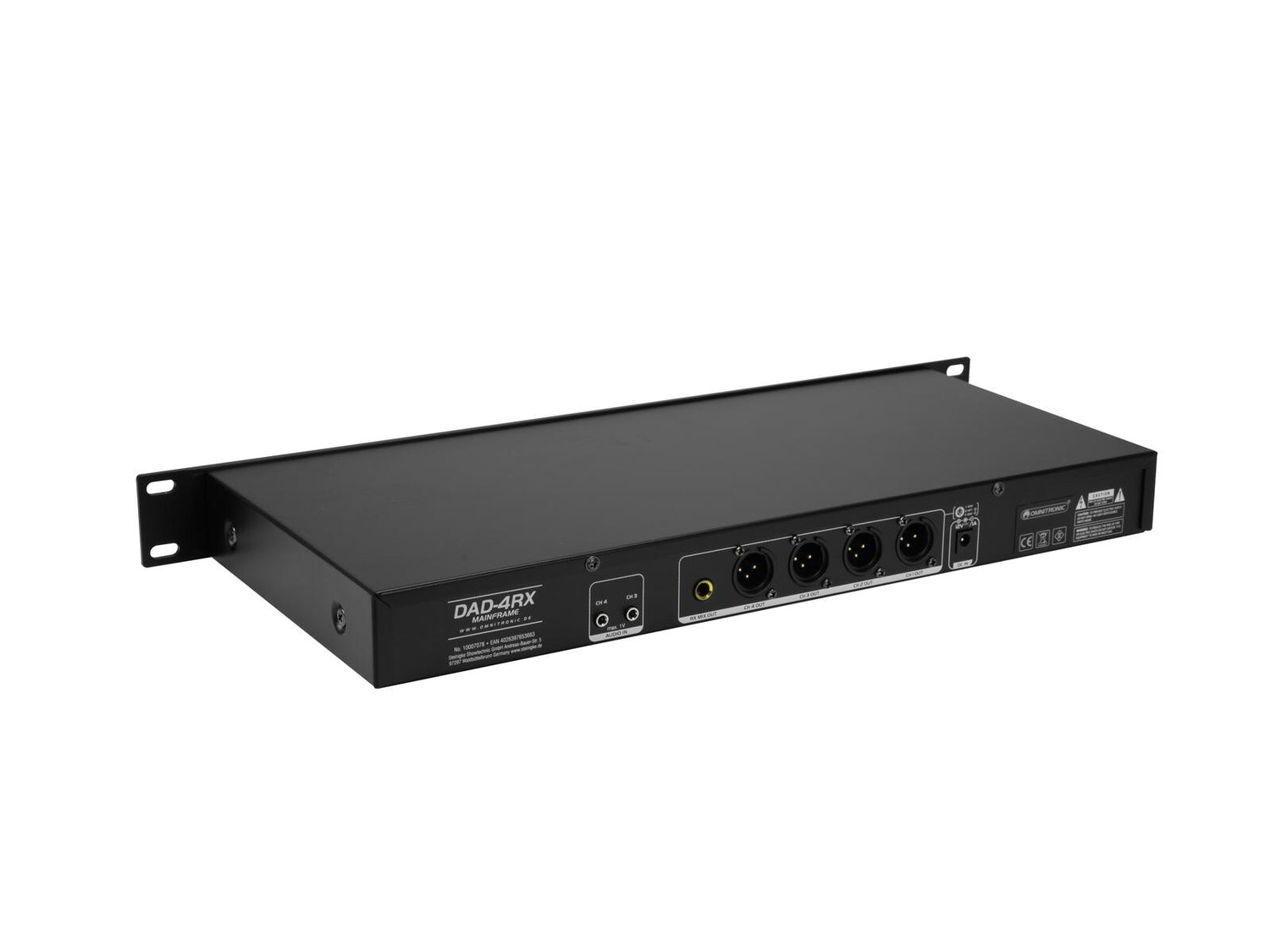

| Connections: | Input: line via 2 x 3.5 mm jack (stereo) mounting version Output: microphone via 4 x 3-pin XLR (M) mounting version Output: master via 1 x 6.3 mm plug (unbal.) Antenna via 2 x BNC (F) |
| Switch: | On/off switch |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48.1 cm Depth: 24.5 cm Height: 4.5 cm |
| Weight: | 2.50 kg |
