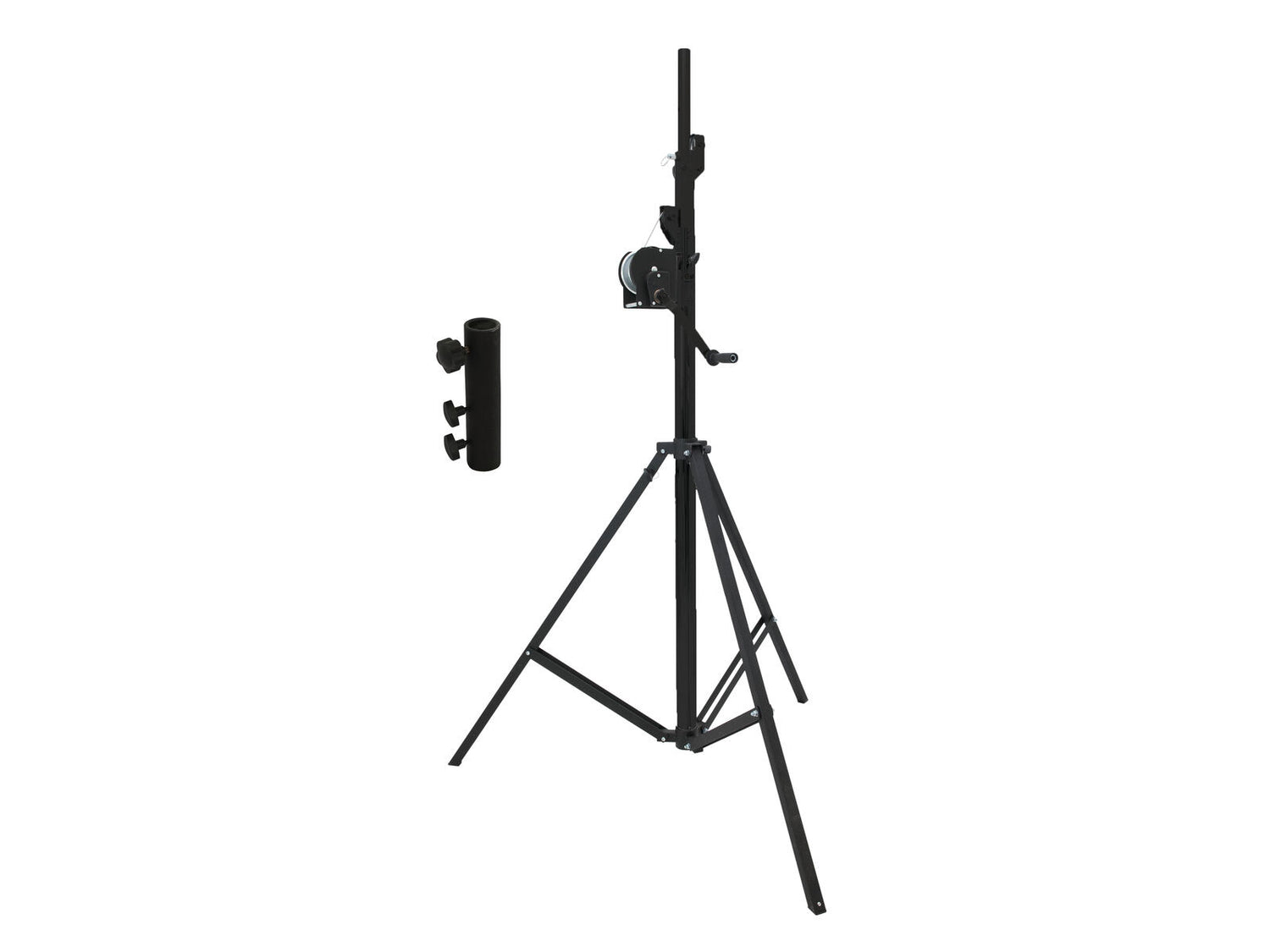

EUROLITE Set STT-400/85 Winch Stand TÜV/GS black + STV-3529 Adapter long
1
de
3
Cargando...
€301,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío €10
Descripción
Descripción
High-quality winch-stand with massive adapter for 35 mm tube

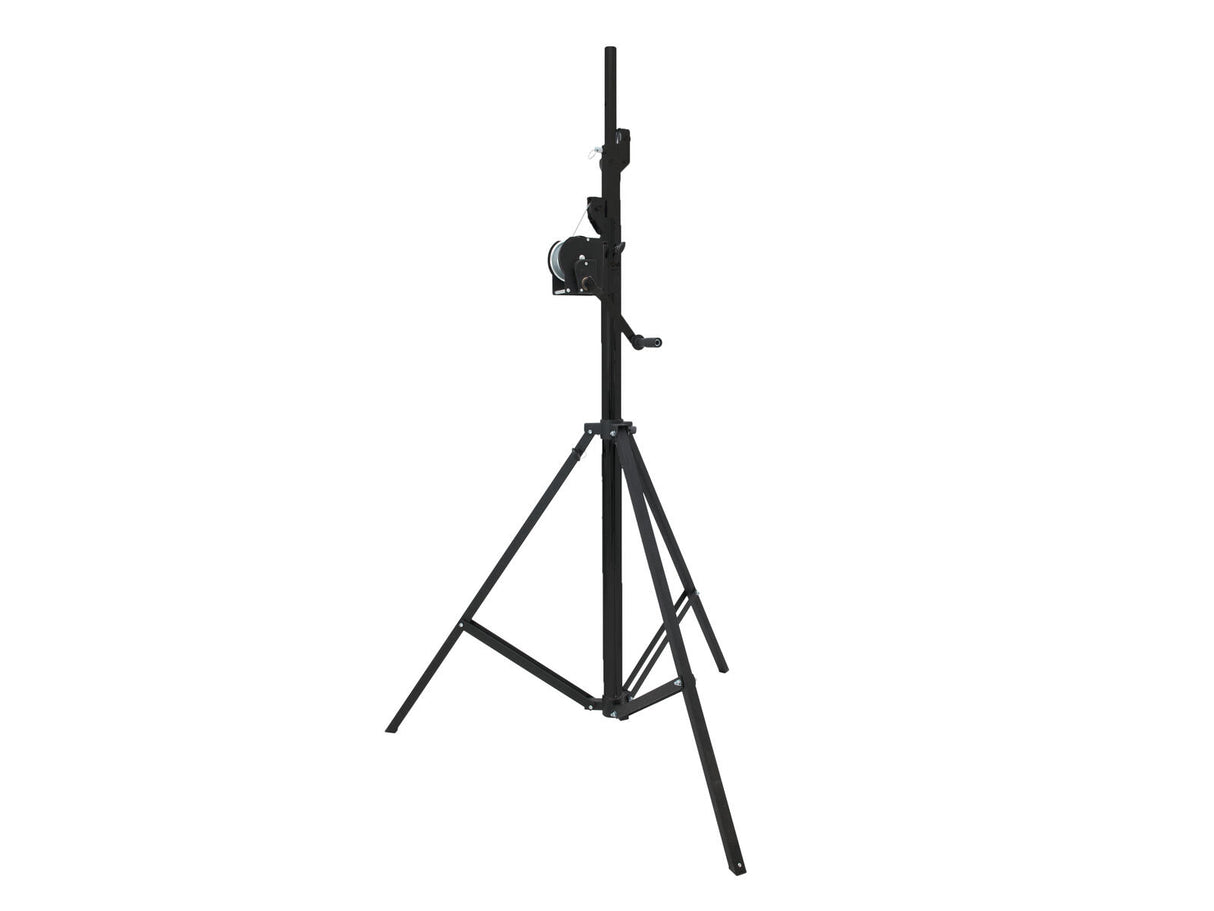

EUROLITE STT-400/85 Winch Stand TÜV/GS black
High-quality winch-stand, maximum load 85 kg, maximum height 400 cm
- 1-gear winch for easy lifting of the loads
- Automatic braking system
- Safety bolt for mechanical locking
- Easy handling
- Complies with DIN 15560-27 and DIN EN ISO 12100-2
- Adjustable height
- TÜV Süd certified

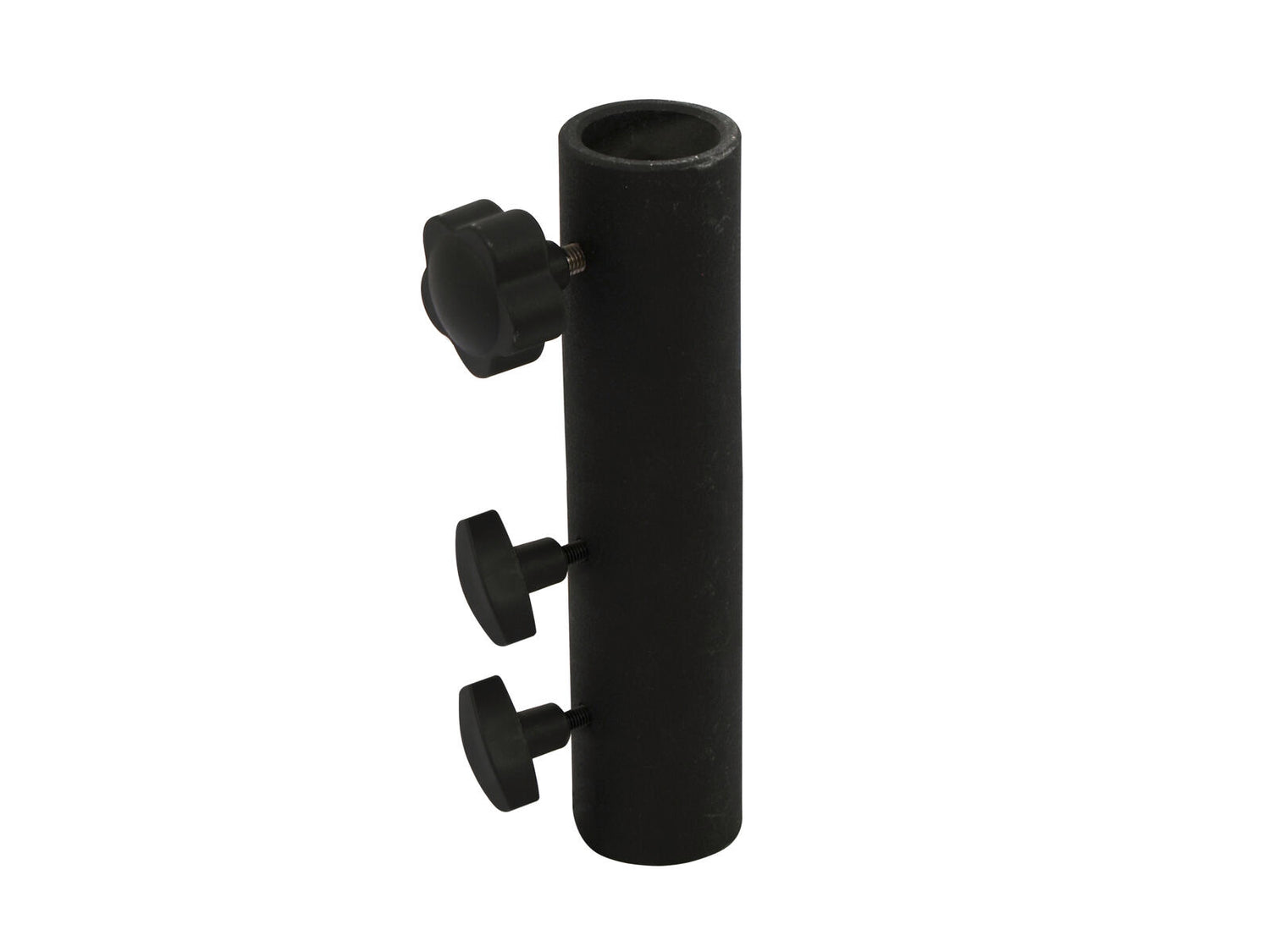

EUROLITE STV-3529 Adapter long
Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg
- For stands with telescopic tube 35 mm
- Connection element for cross beam with 28 mm TV spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
- TV spigot
Scope of delivery
1 x EUROLITE STT-400/85 Winch Stand TÜV/GS black
- 1 x stand
- 1 x user manual
1 x EUROLITE STV-3529 Adapter long
- 1 x device
- 1 x user manual
- 2 x knurled screw
| Weight: | 25.70 kg |
| EUROLITE STT-400/85 Winch Stand TÜV/GS black | |
| Maximum carrying capacity: | 85 kg |
| Minimum load: | 25 kg |
| Standard: | DIN 15560-27, DIN EN ISO 12100-2 |
| Height: | Maximum: 400 cm above 3 sections Minimum: 175 cm |
| Attachment system: | Ø 35mm |
| Steel rope: | Ø 4 mm |
| Type (general stands): | Light stand/wind up |
| Material: | Steel (powder-coated) |
| Transport dimensions: | 175 cm x 30 cm x 27 cm |
| Base area: | Ø 160 cm |
| Weight: | 24.20 kg |
| EUROLITE STV-3529 Adapter long | |
| Maximum load BGV C1 (8-fold): | 50 kg |
| Maximum load WLL (4-fold): | 100 kg |
| Attachment system: | TV spigot Ø 28mm Ø 35mm |
| Type (general stands): | Accessory |
| Material: | Steel, 6 mm, powder-coated |
| Dimensions: | Width: 8.50 cm Depth: 5 cm Height: 19.50 cm |
| Weight: | 1.50 kg |
