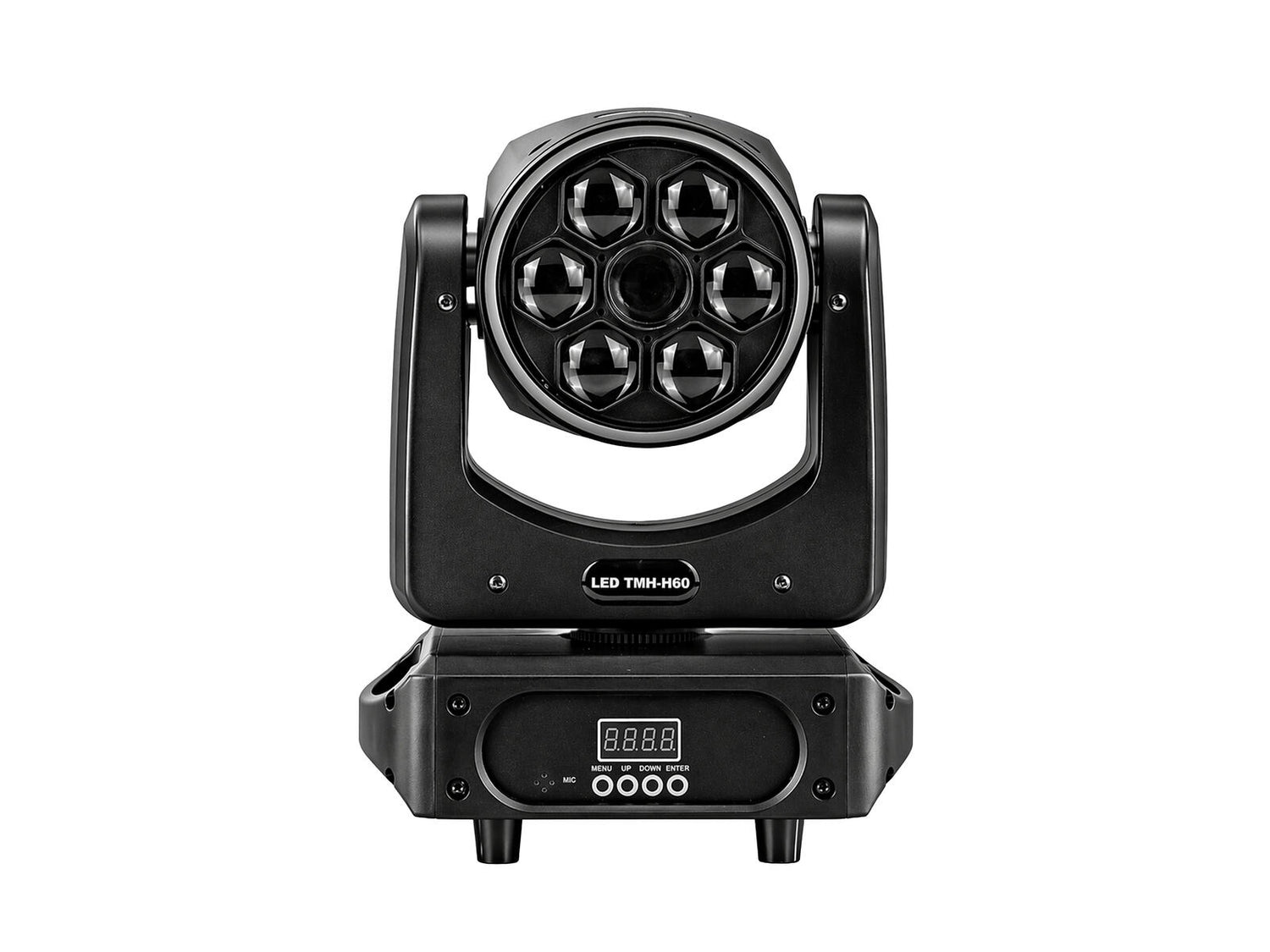

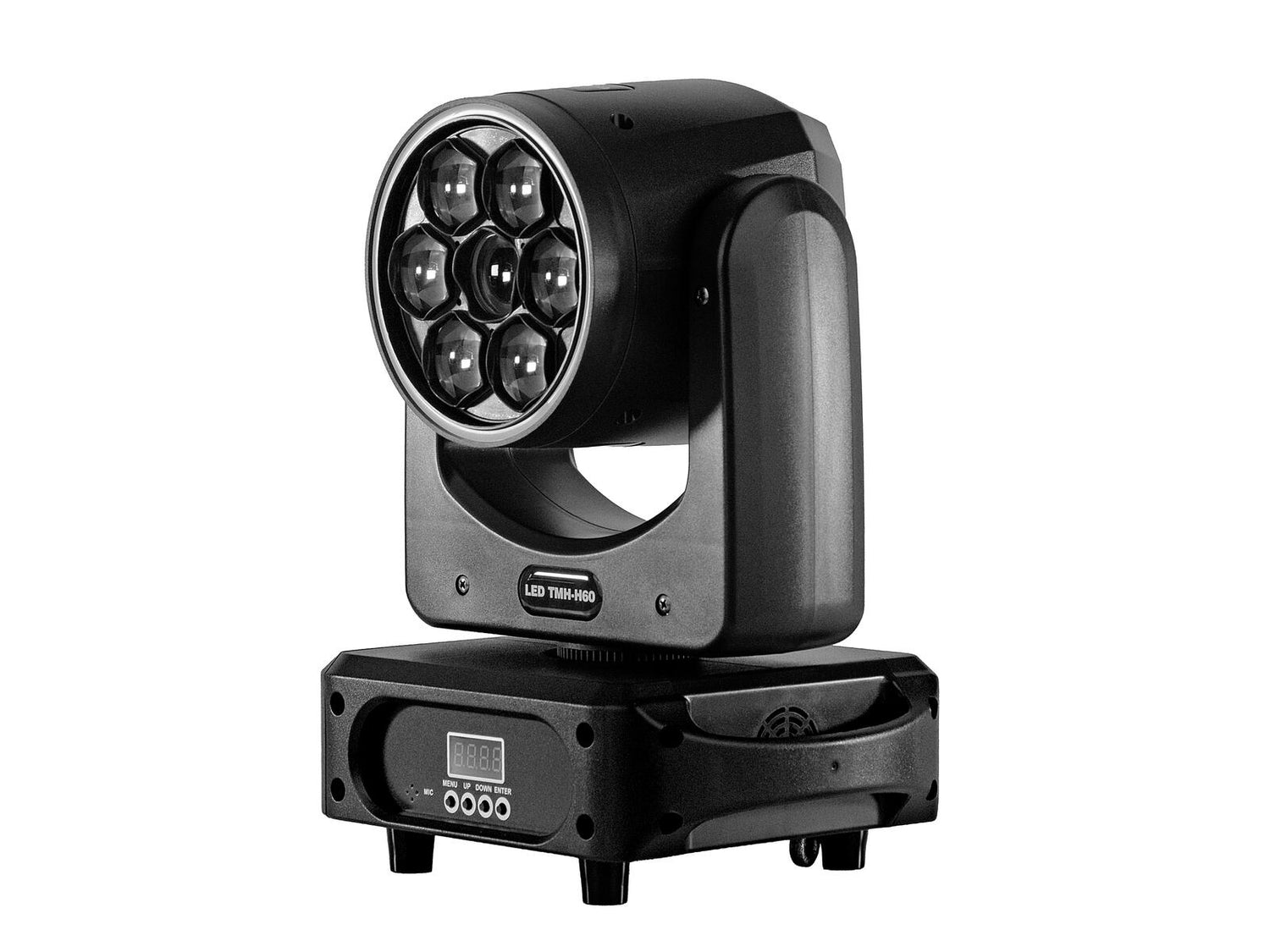

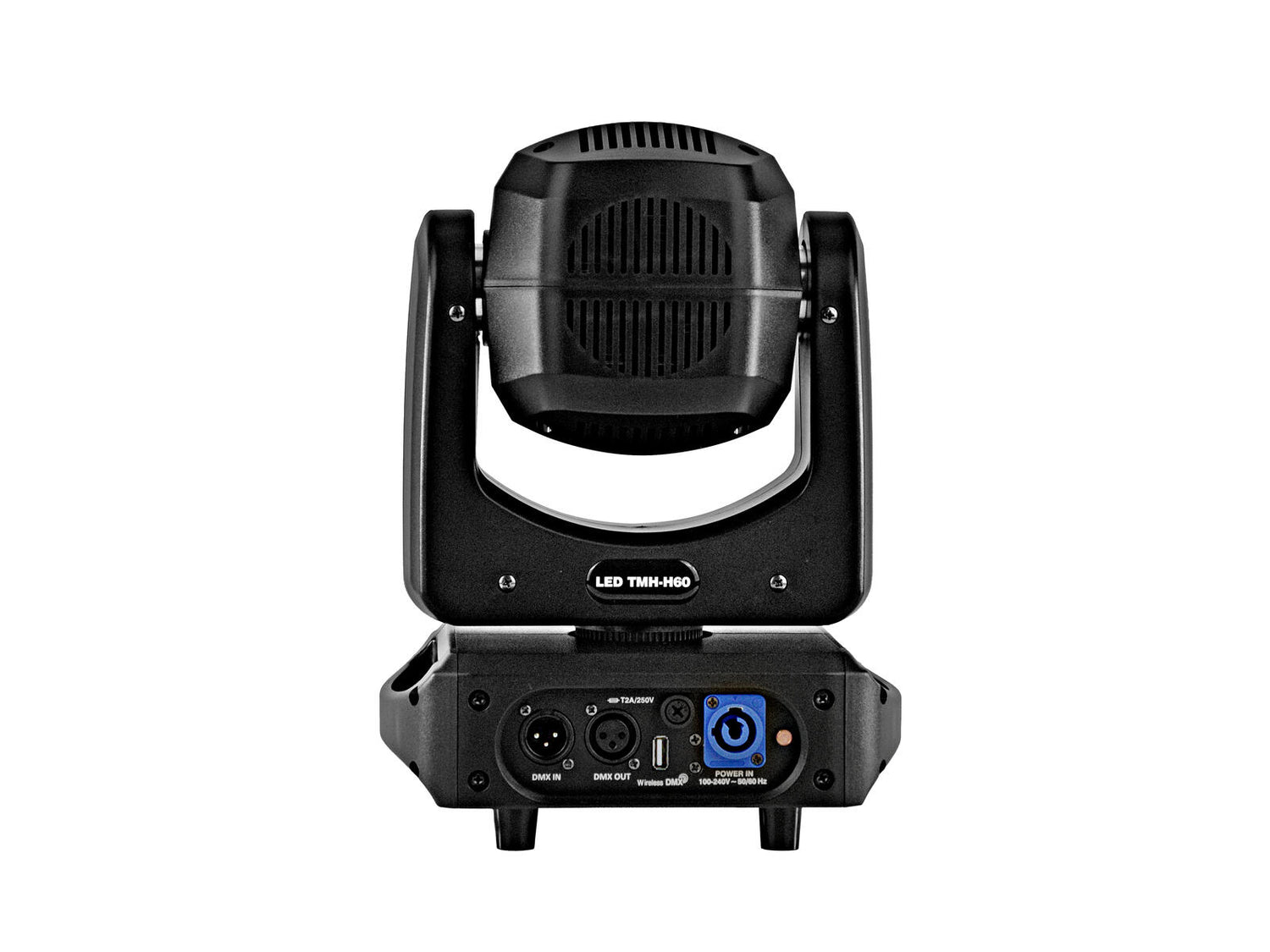

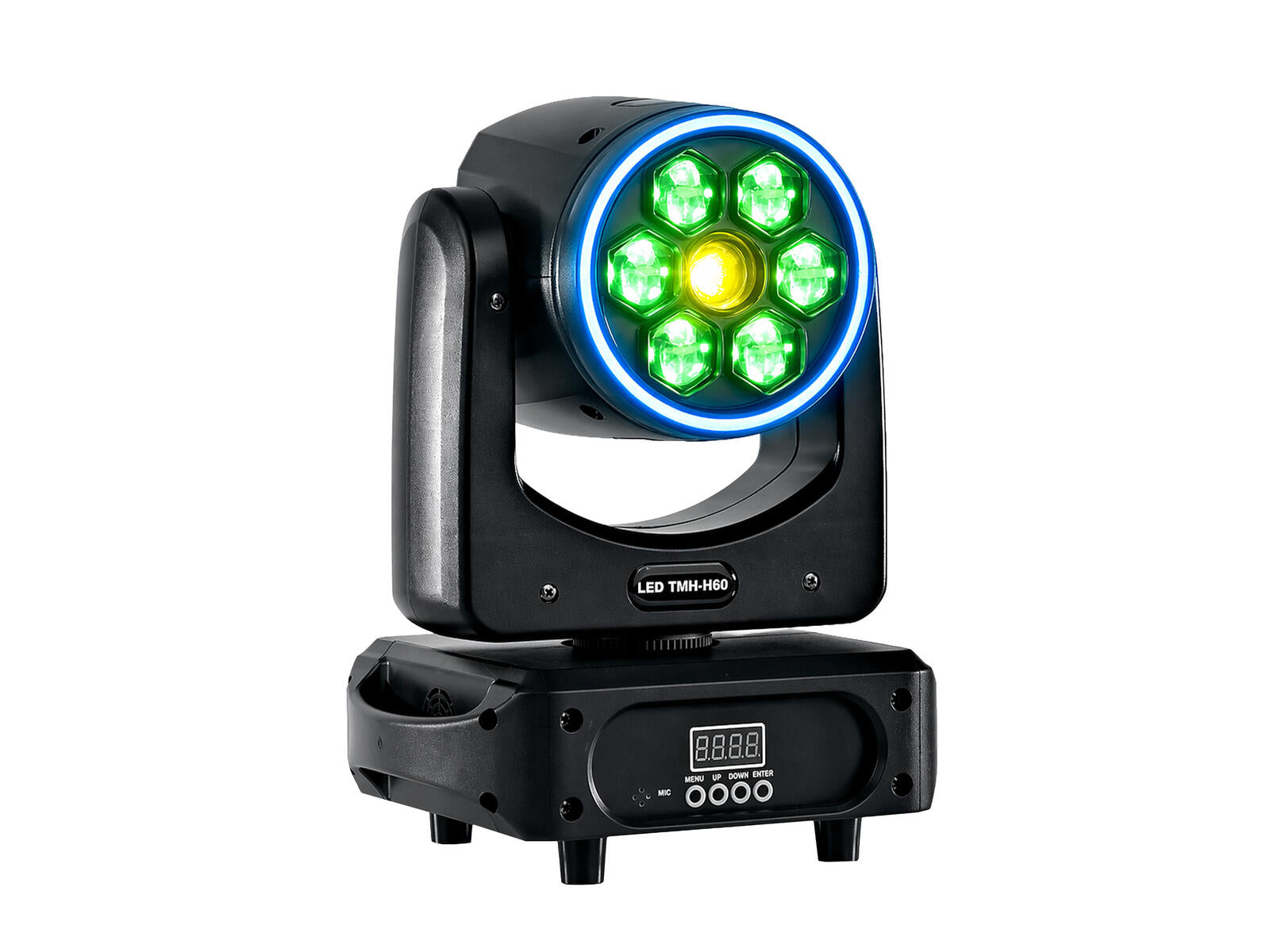

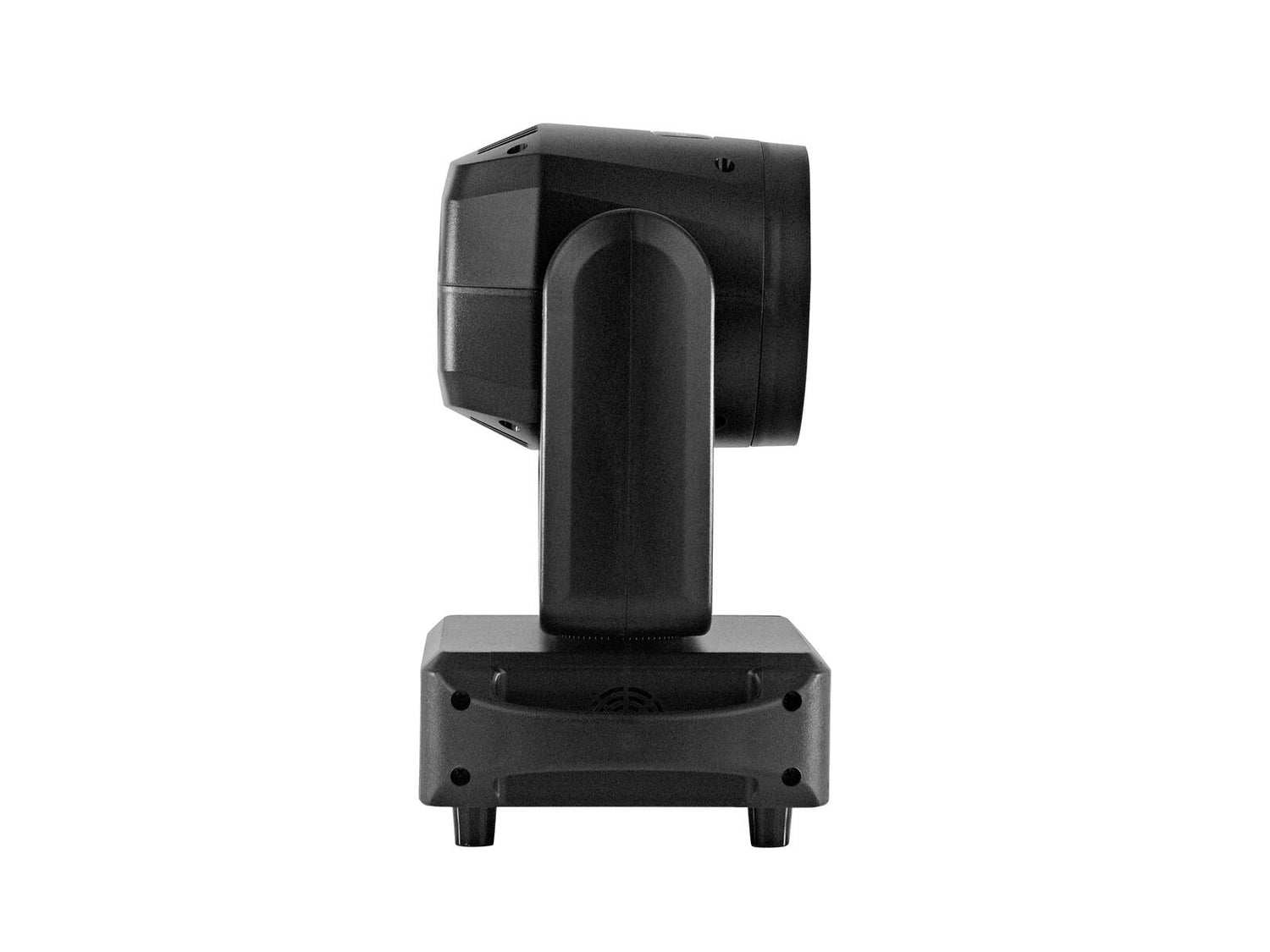

EUROLITE LED TMH-H60 Hybrid Moving Head Spot/Flower

This moving head offers more than meets the eye. At its center is a 60 W LED, combined with a gobo wheel featuring seven gobos and a color wheel with eight colors. The spot has a beam angle of 14°, making it ideal for precise projections.Surrounding the central lens are six additional lenses, each equipped with a 10 W RGBW LED. These create the second effect: as the entire lens assembly rotates, the beams are continuously redirected, producing a dynamic flower effect in haze.As a third effect, an outer ring of 24 colored LEDs provides additional visual possibilities. These can create a colored frame or be used for various animation effects.This results in three distinct effects that can be freely combined to create versatile and dynamic light shows.

Compact moving head spot with color wheel, static gobo wheel, flower effect and hypno ring

• 1 LED 60 W COB (chip-on-board) cold white (CW)
• 6 LEDs 10 W SMD 5050 4in1 RGBW
• Positioning within 540° PAN, 180° TILT
• Exact positioning (16 bit resolution)
• Lens rotation
• Dimmer
• Spot effect; flower effect
• Color wheel with 7 dichroic filters plus open
  half colors selectable
• Gobo wheel with static gobos, 7 gobos and open
  shake effect
• Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
• With a beam angle of 14°
• With omega bracket
• 4 digit 7-segment LED display
• 2 Rugged carrying handles
• Rubber feet
• Flicker-free
• The device is cooled by temperature-controlled fan at the head; low-noise cooling fan at the base
• For application areas such as: Clubs/dancing school; wedding/gala/events; party room; stage; mobile djs / entertainer; restaurants, bars and hotels
• Application possibility: Standing; suspended

Scope of delivery

• 1 x moving light
• 1 x user manual
• 1 x power cord
• 1 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	145 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 60 W COB (chip-on-board) cold white (CW) 6 x 10 W SMD 5050 4in1 RGBW 24 x 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
Max. TILT movement:	180° exact positioning (16 bit resolution)
Max. PAN movement:	540° exact positioning (16 bit resolution)
Flash rate:	1.5 - 17 Hz
Equipment:	Lens rotation
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable
Gobos:	Gobo wheel with static gobos, 7 gobos and open Shake effect
DMX channels:	16; 26
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan at the head Low-noise cooling fan at the base
Control:	Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
Fixtures available for:	Light´J; Light Captain; Colorchief
Projection:	Flicker-free
PWM frequency:	10600 Hz
DMX fail mode:	Hold; blackout
Beam angle:	14°
Beam angle (1/2 peak):	Spot 14°
Beam angle (1/10 peak):	Spot 14°
Housing color:	Black
Attachment system:	Omega bracket
Display type:	4 digit 7-segment LED display
USB port:	Type A
Carrying handle:	2 pc/pcs
Transport aid:	Rubber feet
Diameter mounting holes:	1 x Ø11mm
Material:	Plastic
Dimensions:	Width: 23.0 cm Depth: 17.5 cm Height: 31.0 cm
Weight:	4.15 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
