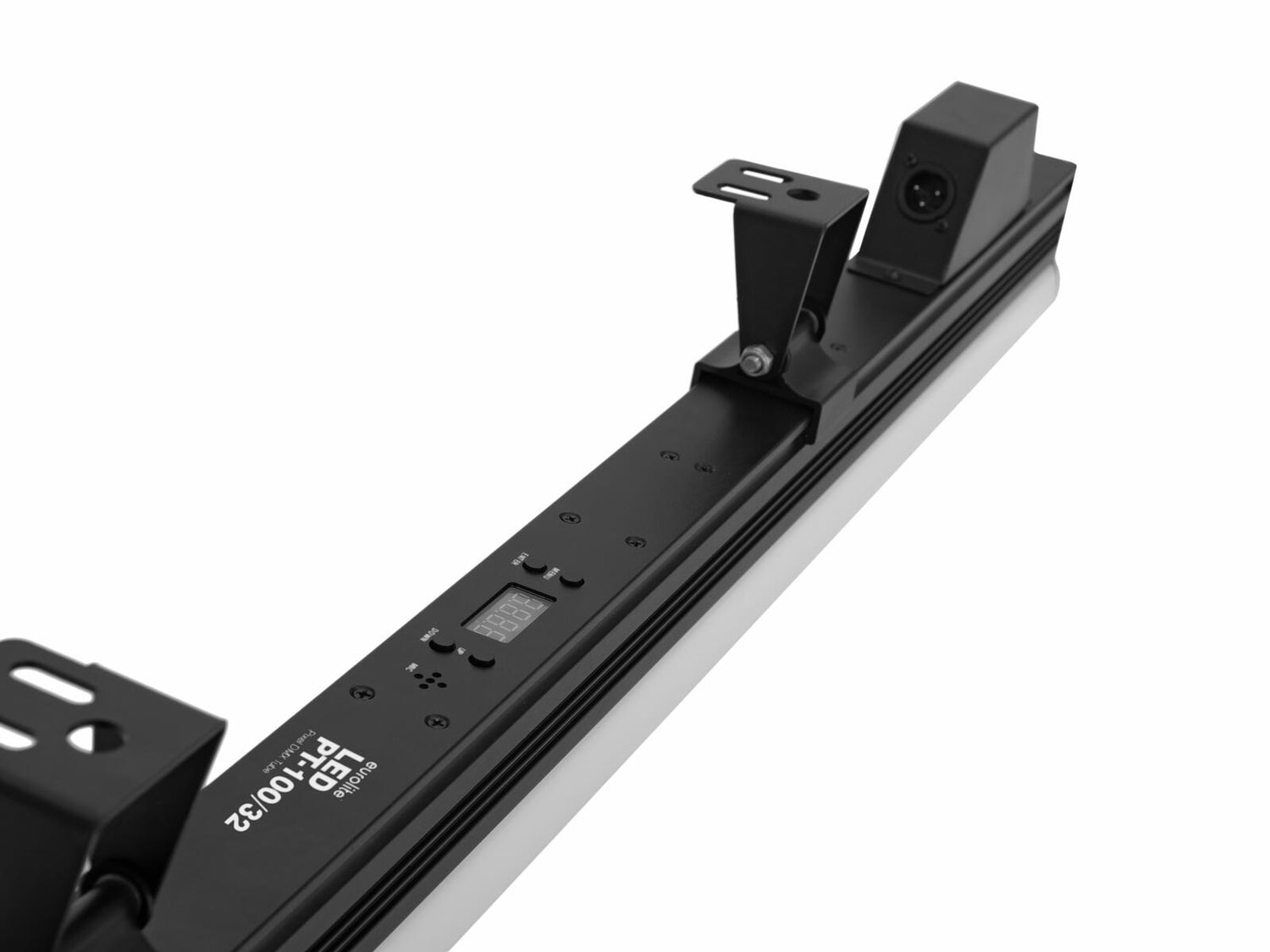

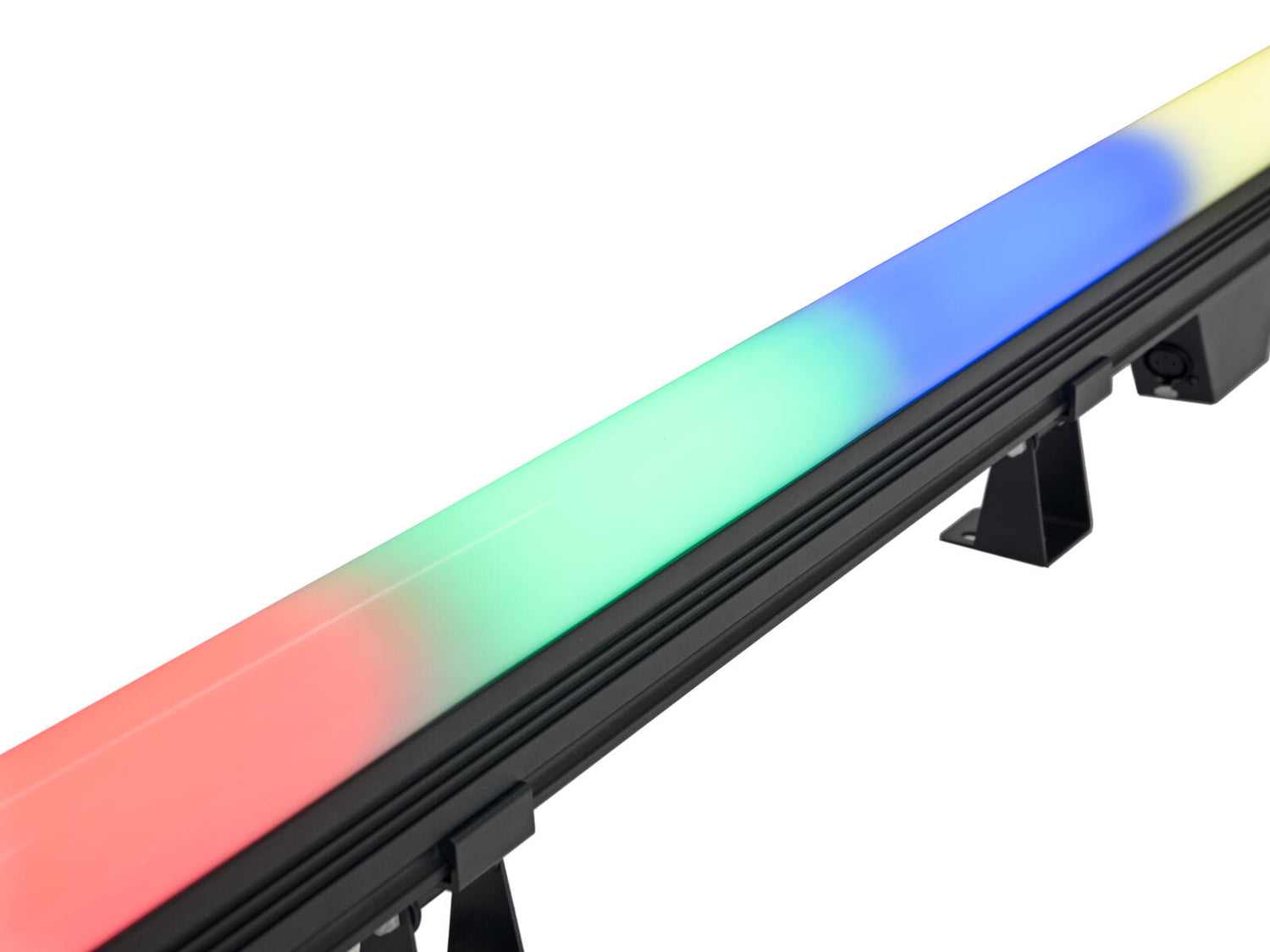

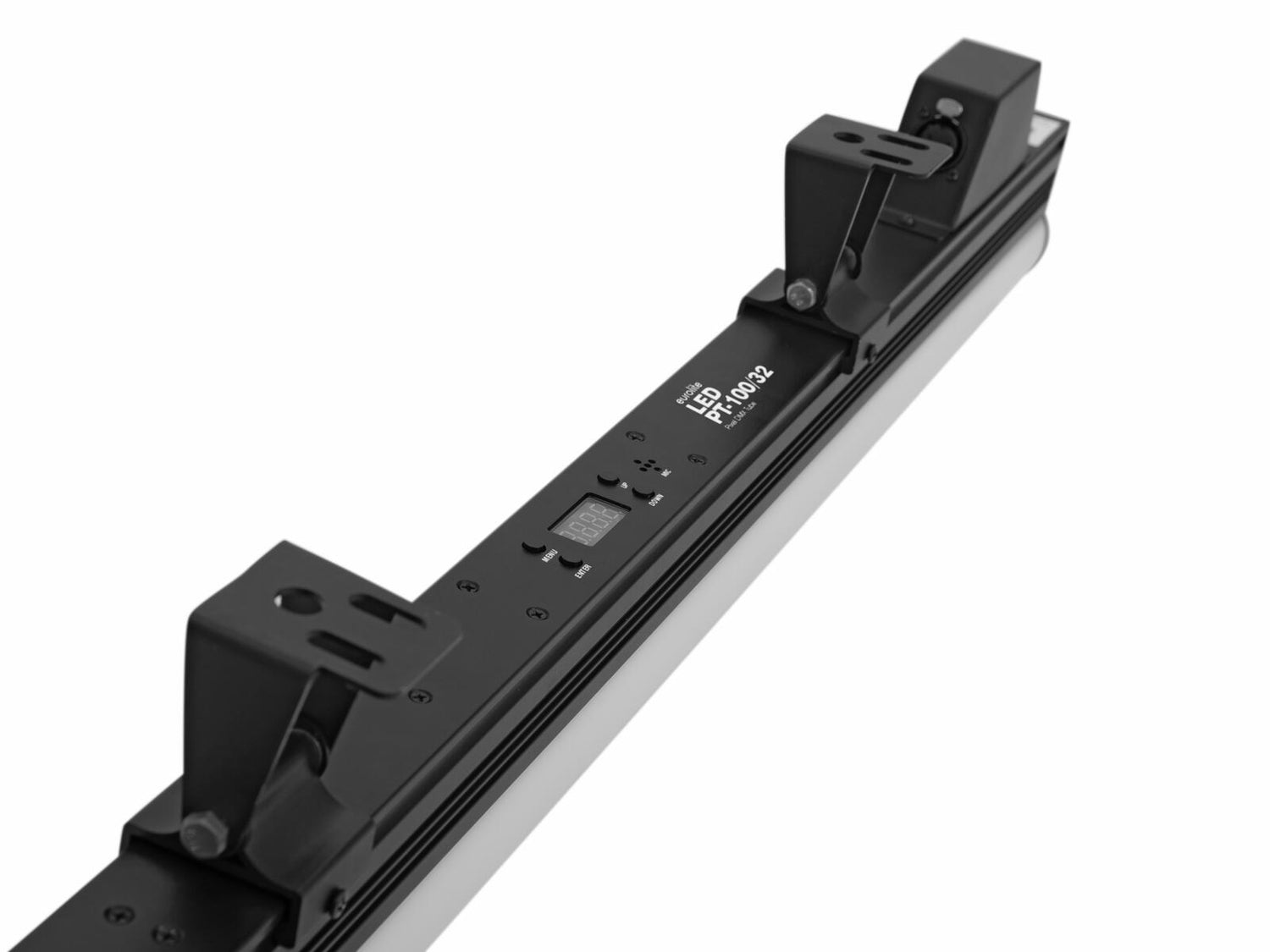

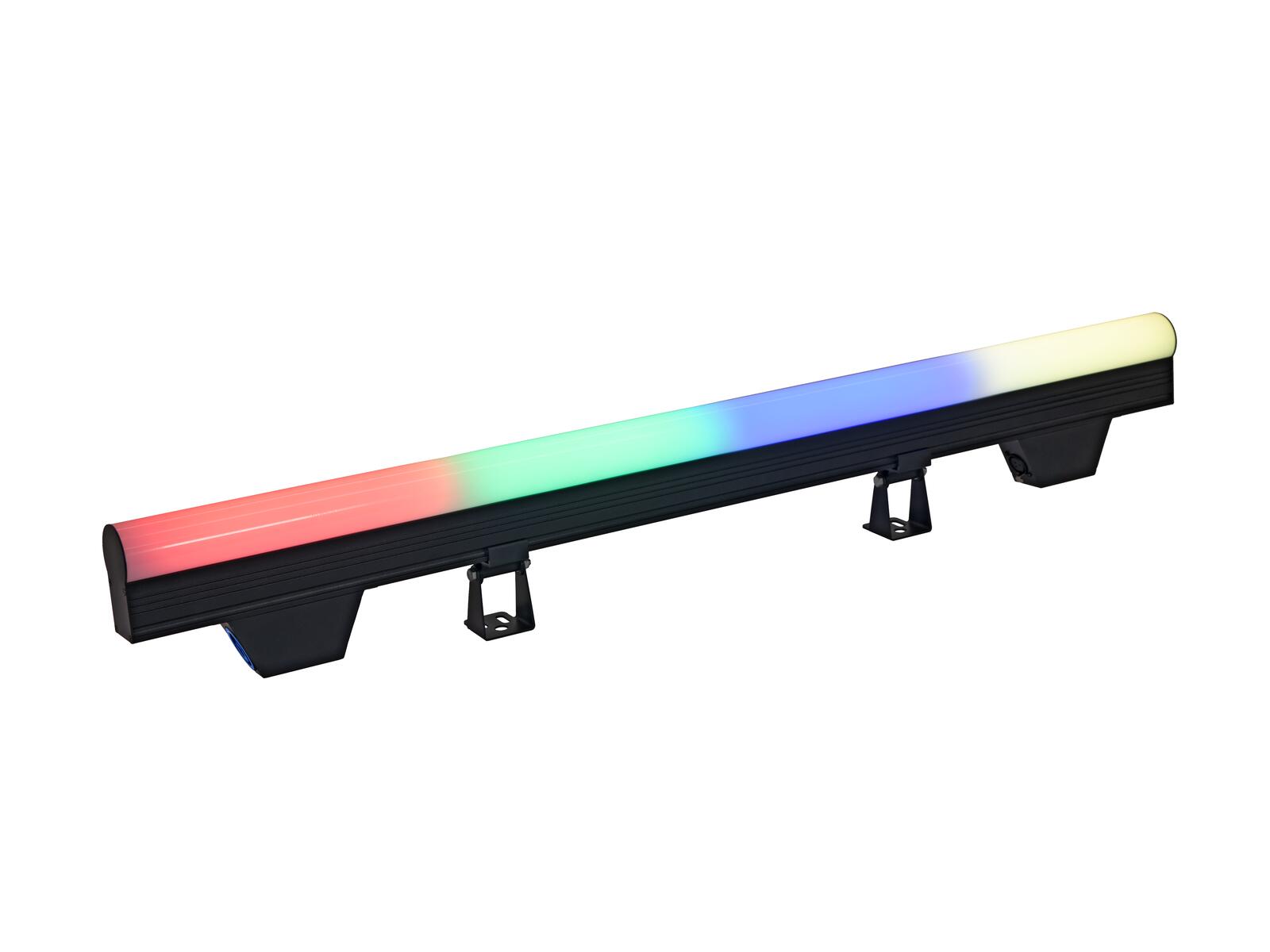

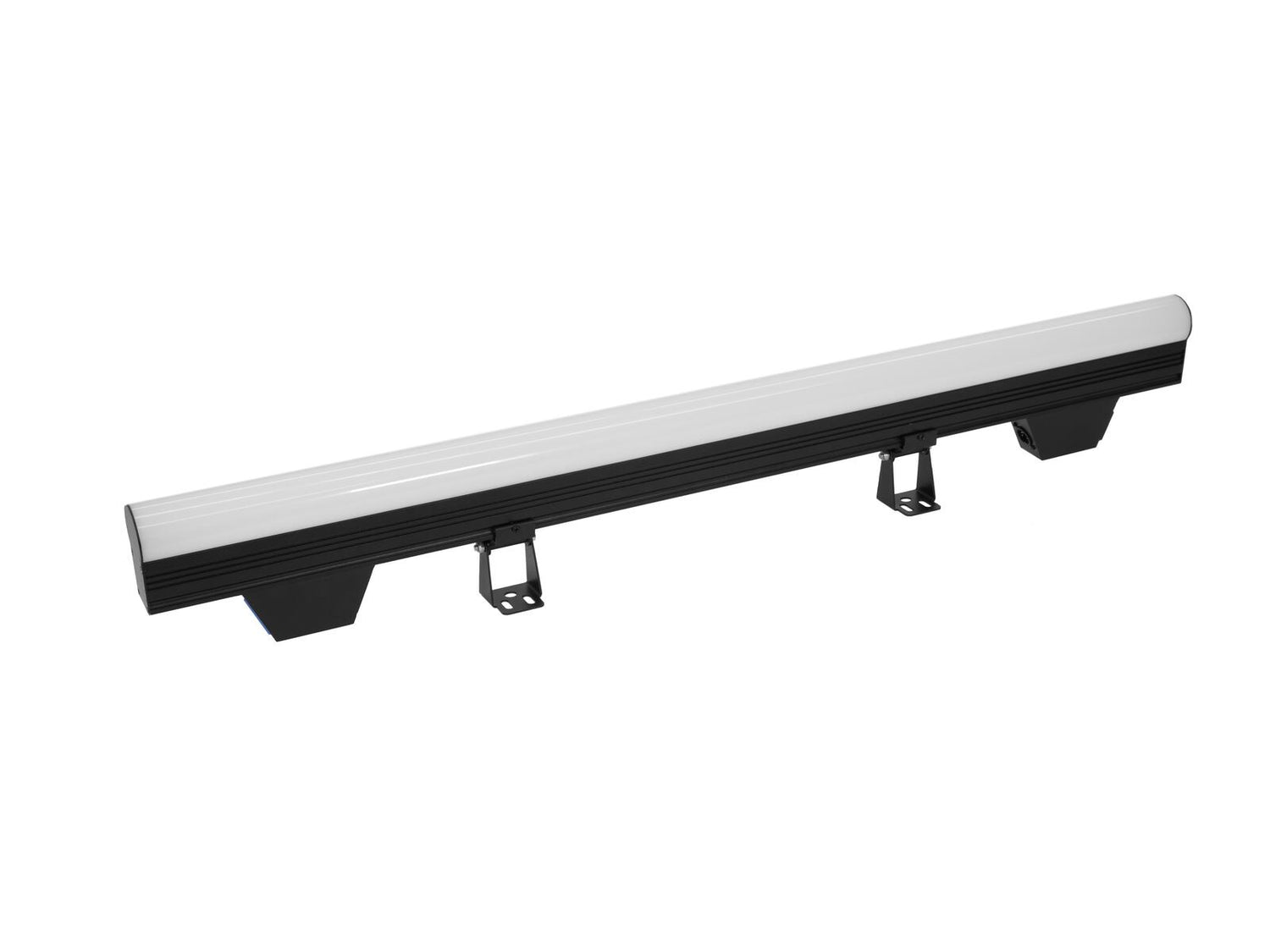

EUROLITE LED PT-100/32 Pixel DMX Tube
1
de
6
Cargando...
€185,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío €10 (envío gratis a partir de €199)
Descripción
Descripción
DMX controlled pixel tube with RGB color mixing
- DMX and power terminals intelligently designed for easy wiring
- 96 LEDs SMD 5050 3in1 R/G/B (homogenous color mix)
32 segments controlled separately - Color change adjustable; Dimmer electronic
- Strobe effect
- Integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone; master/slave function
- With a beam angle of 120°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; decoration; wedding/gala/events; restaurants, bars and hotels; video and photography; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; wall mounting
Scope of delivery
- 1 x light effect
- 1 x power cord
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 96 x SMD 5050 3in1 R/G/B (homogenous color mix) |
| Flash rate: | 0.25 - 11 Hz |
| DMX channels: | 3; 5; 8; 48; 96 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function |
| Fixtures available for: | LED PC-Control 512; Light Captain |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Plastic; metal |
| Dimensions: | Length: 99.9 cm Width: 5.9 cm Height: 15.3 cm |
| Weight: | 2.10 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø12mm; 1 x Ø11mm |
| Material: | Metal, 2.5 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
