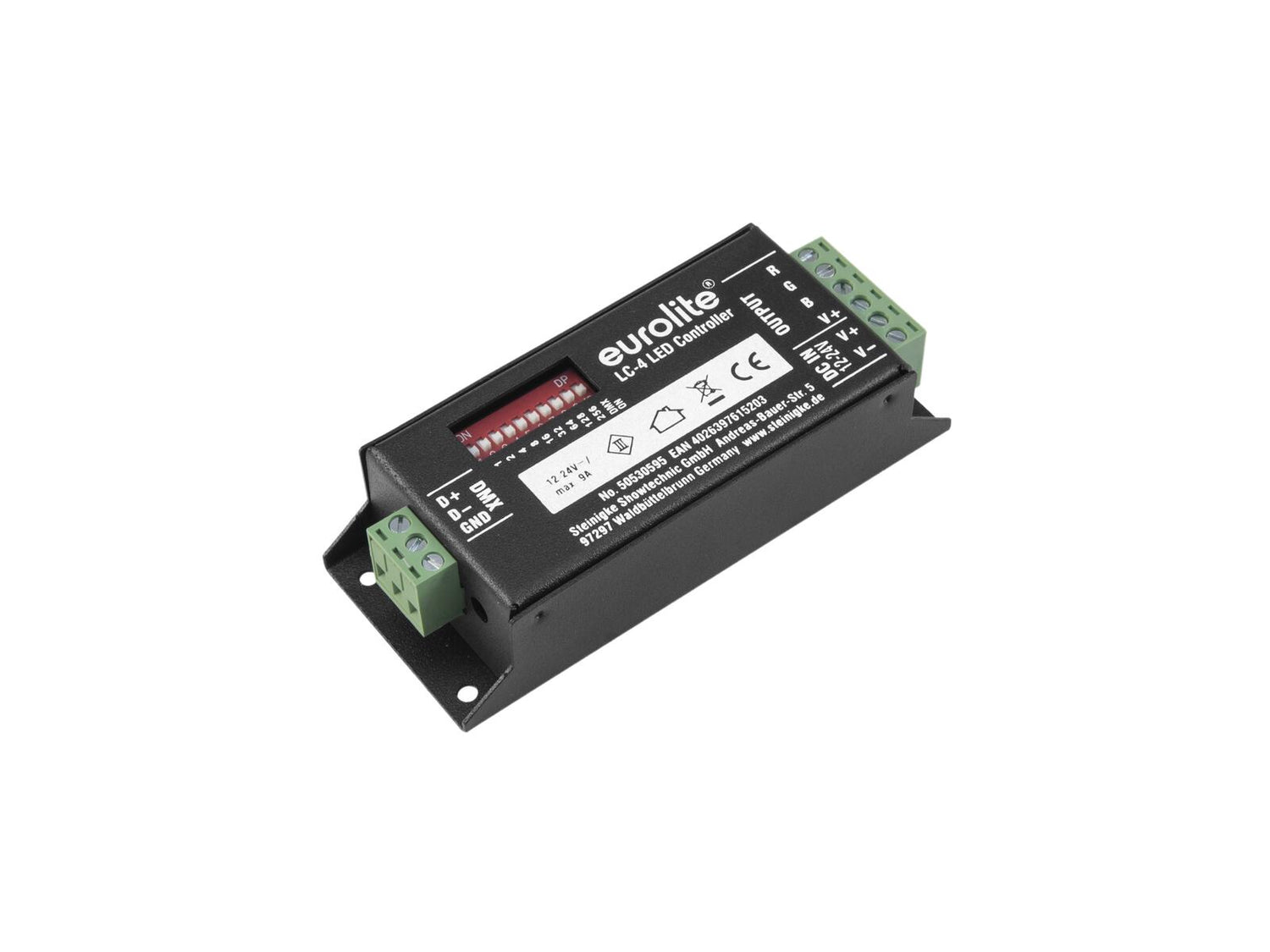

EUROLITE LC-4 LED Strip RGB DMX Controller
Cargando...
€33,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío €10 (envío gratis a partir de €199)
Descripción
Descripción
3-channel LED controller with DMX interface for RGB LEDs 12-24 V
- Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 3 separate control channels for individual color mixing of red, green and blue LEDs
- Plug-in screw terminals for connecting the LEDs and the power supply
- Rugged black metal housing
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
Scope of delivery
- 1 x controller
- 1 x user manual
| Power supply: | 12/24V DC |
| Power consumption: | Max. 108 W 12 V DC Max. 216 W 24 V DC 36 W 12 V DC per channal 72 W 24 V DC per channal |
| Protection class: | Protection class III |
| Output current: | Max. 3 x 3 A per channal |
| Power connection: | Via screw terminal |
| Power output: | Screw terminal |
| DMX channels: | 4 |
| DMX input: | Screw terminal |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone |
| Housing color: | Black matte |
| Dimensions: | Width: 4.5 cm Depth: 10.9 cm Height: 2.7 cm |
| Weight: | 0.15 kg |
| Noise classification: | Class 0 (no noise at all) |
