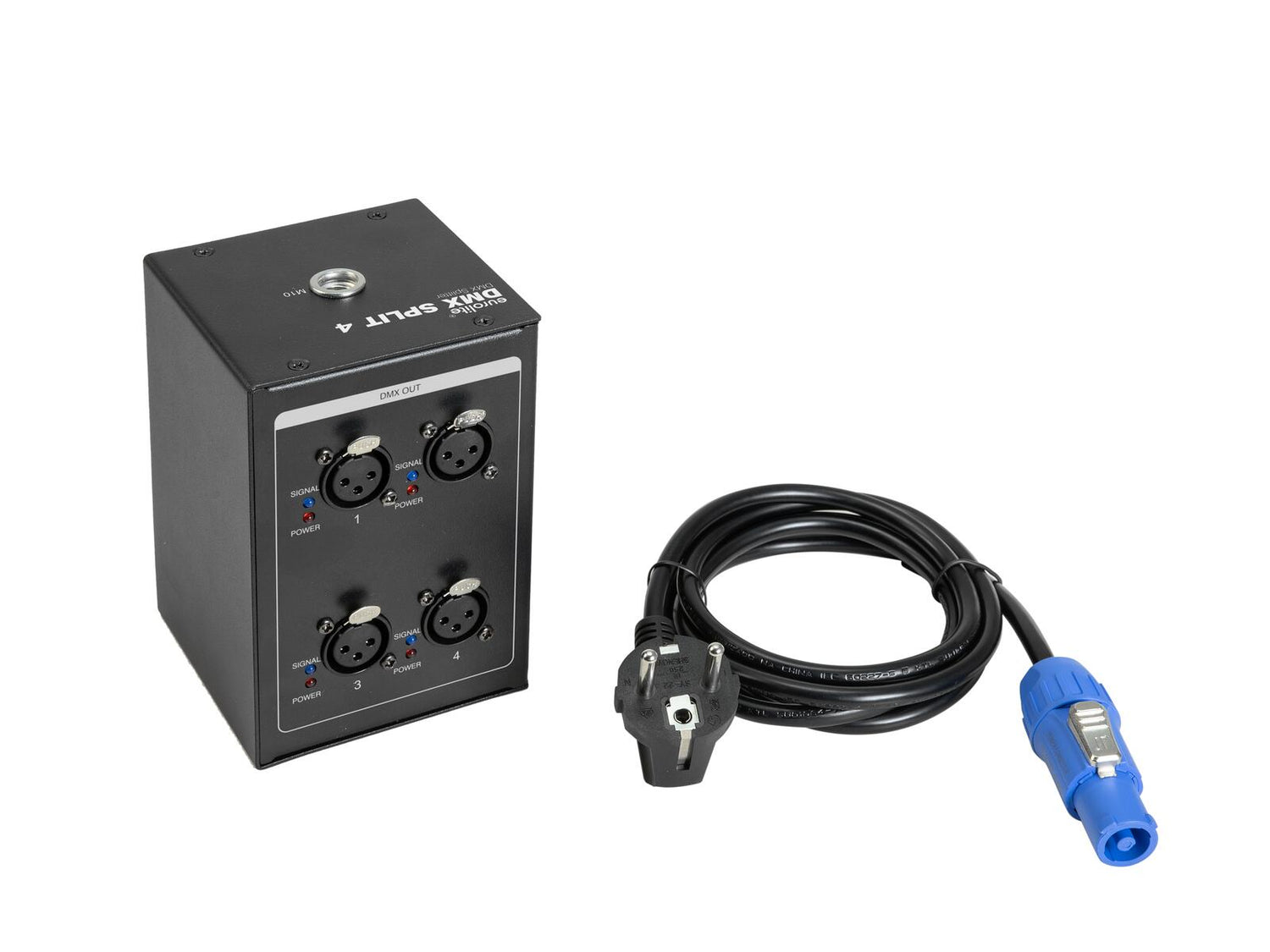

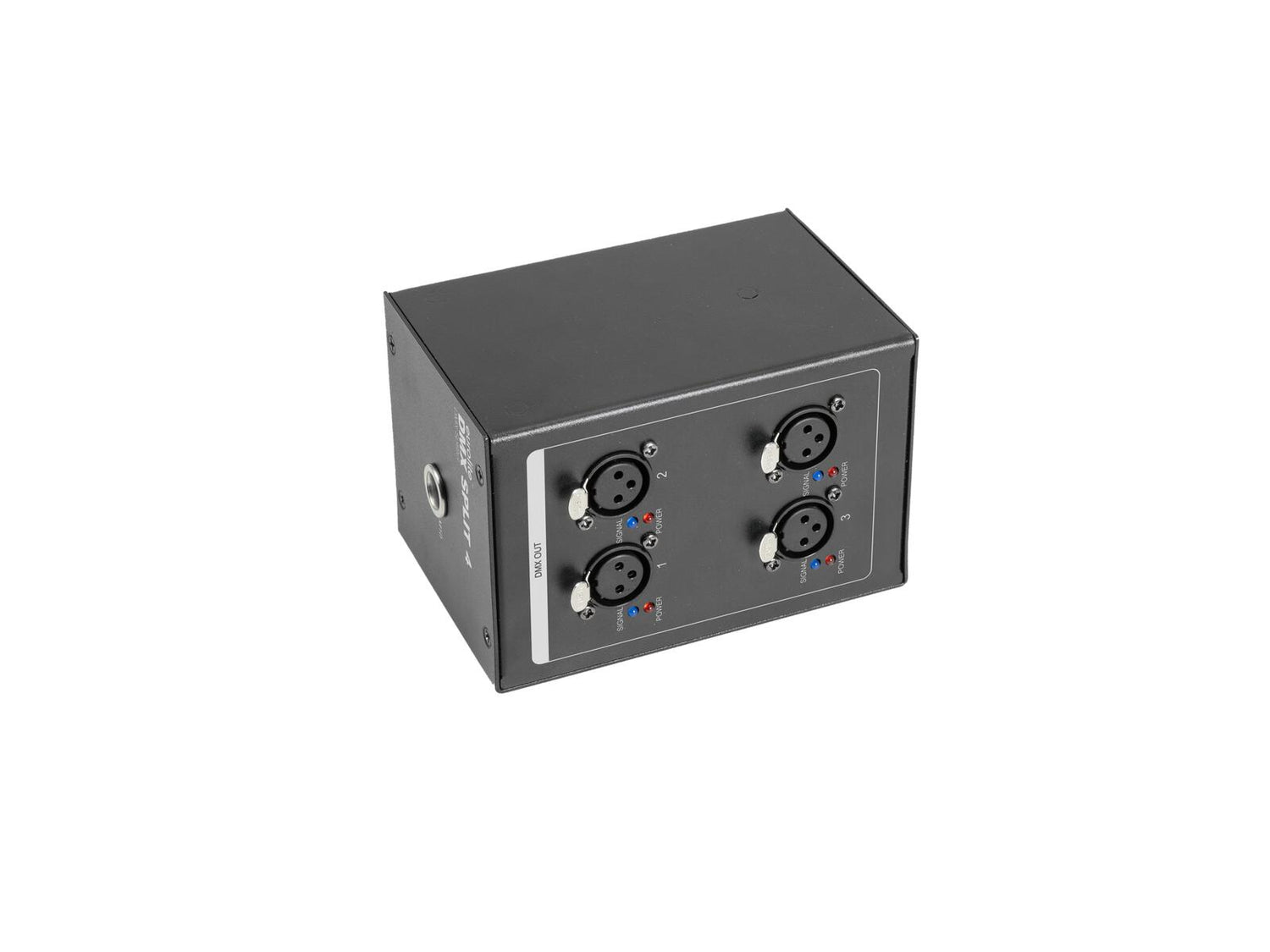

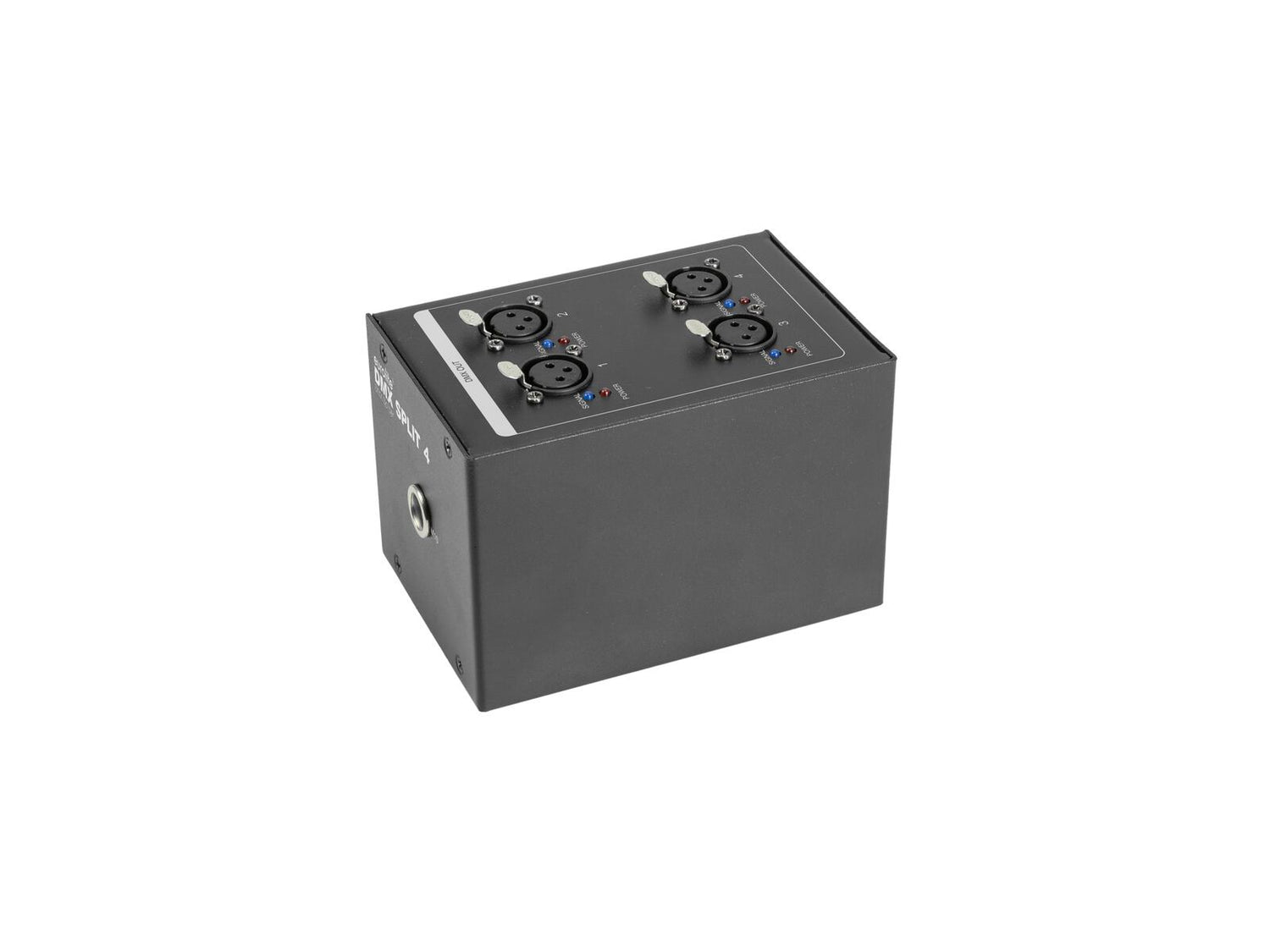

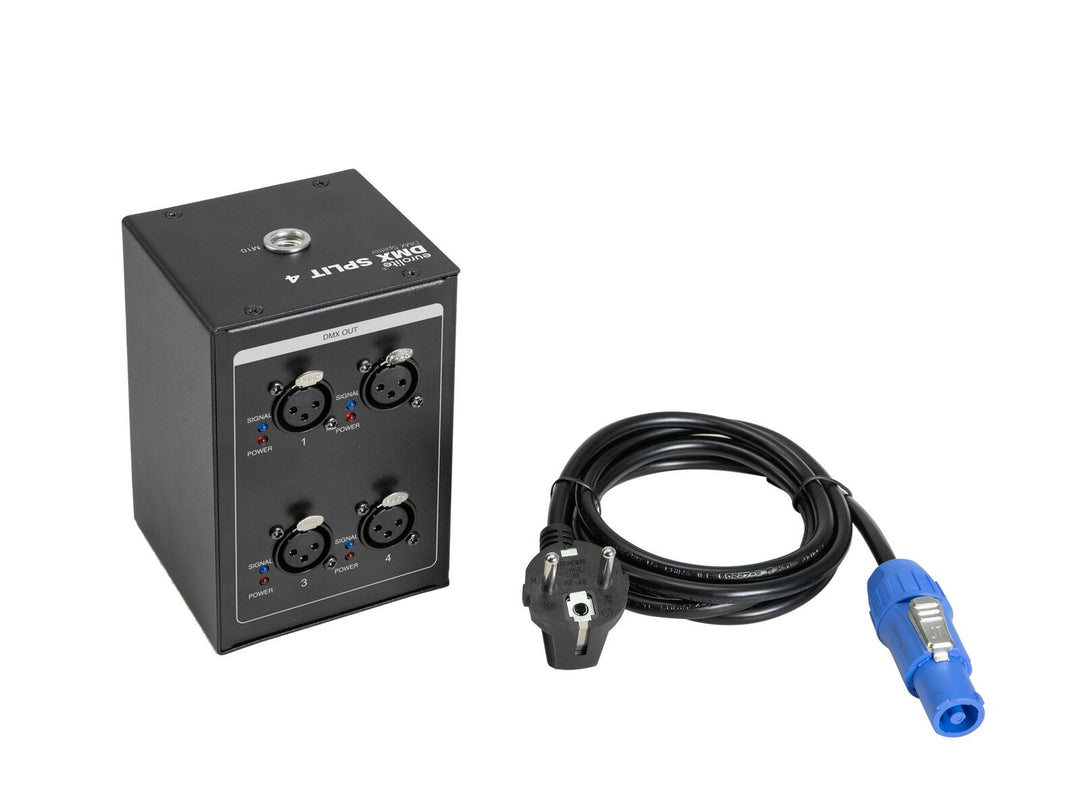

EUROLITE DMX Split 4 Mini Splitter 3pol

This compact 4-fold splitter is designed for reliable distribution of DMX512 signals in rigs. The unit features 3-pin XLR connectors with status indicators, and a M10 threaded insert for truss attachment. Delivery includes a power cord.

4-fold DMX splitter for truss mounting

• Mini splitter with 3-pin XLR terminals
• Rugged metal housing

Scope of delivery

• 1 x device
• 1 x power cord
• 1 x user manual
• 4 x foot

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	1.5 W
Output current:	Max. 10 A

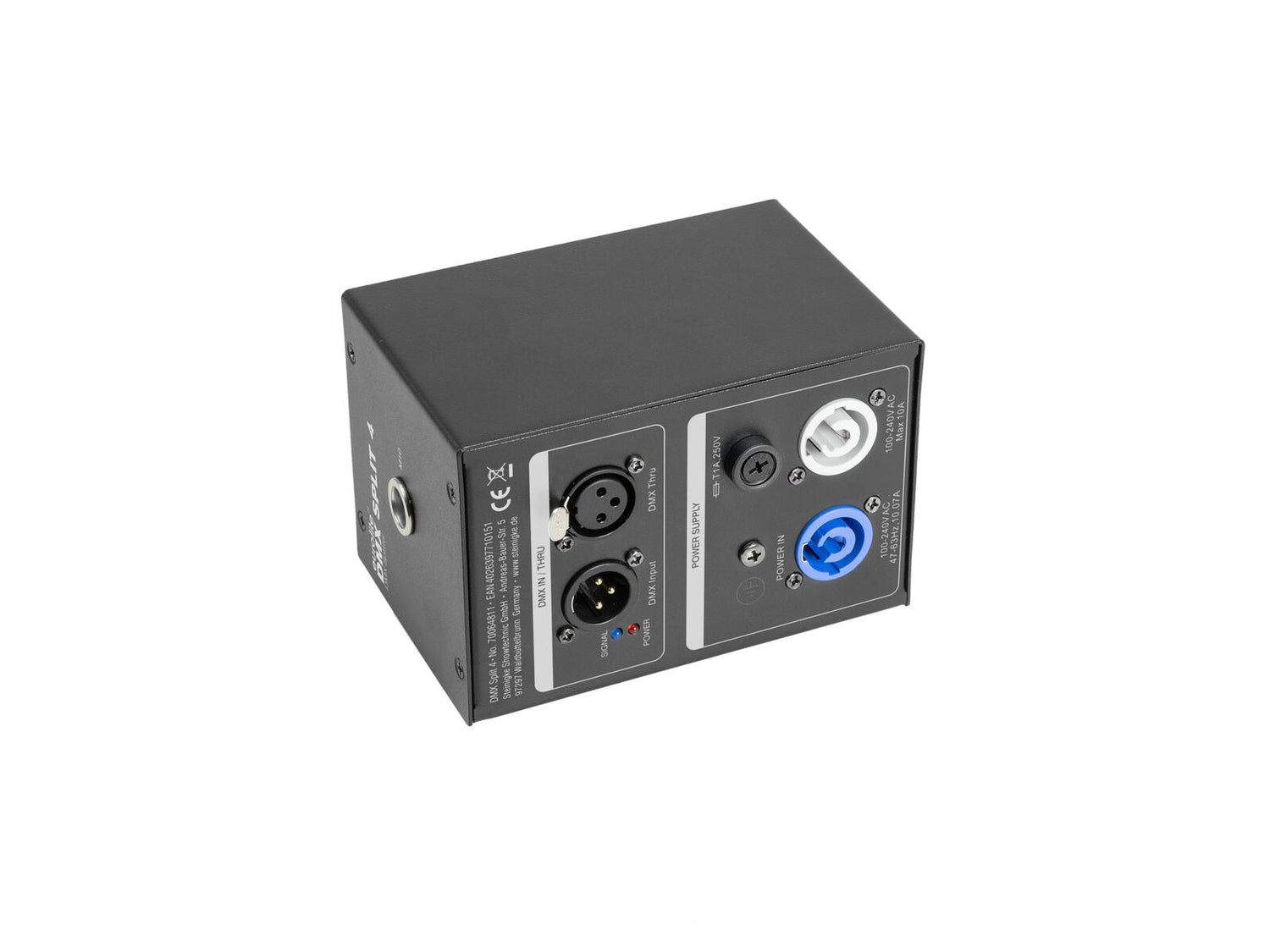

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	4 x 3-pin XLR (F) mounting version separate (galvanic) 1 x 3-pin XLR (F) mounting version Bypass
Status LED:	Power, DMX
Dimensions:	Length: 9 cm Width: 9.5 cm Height: 14 cm
Weight:	0.99 kg
