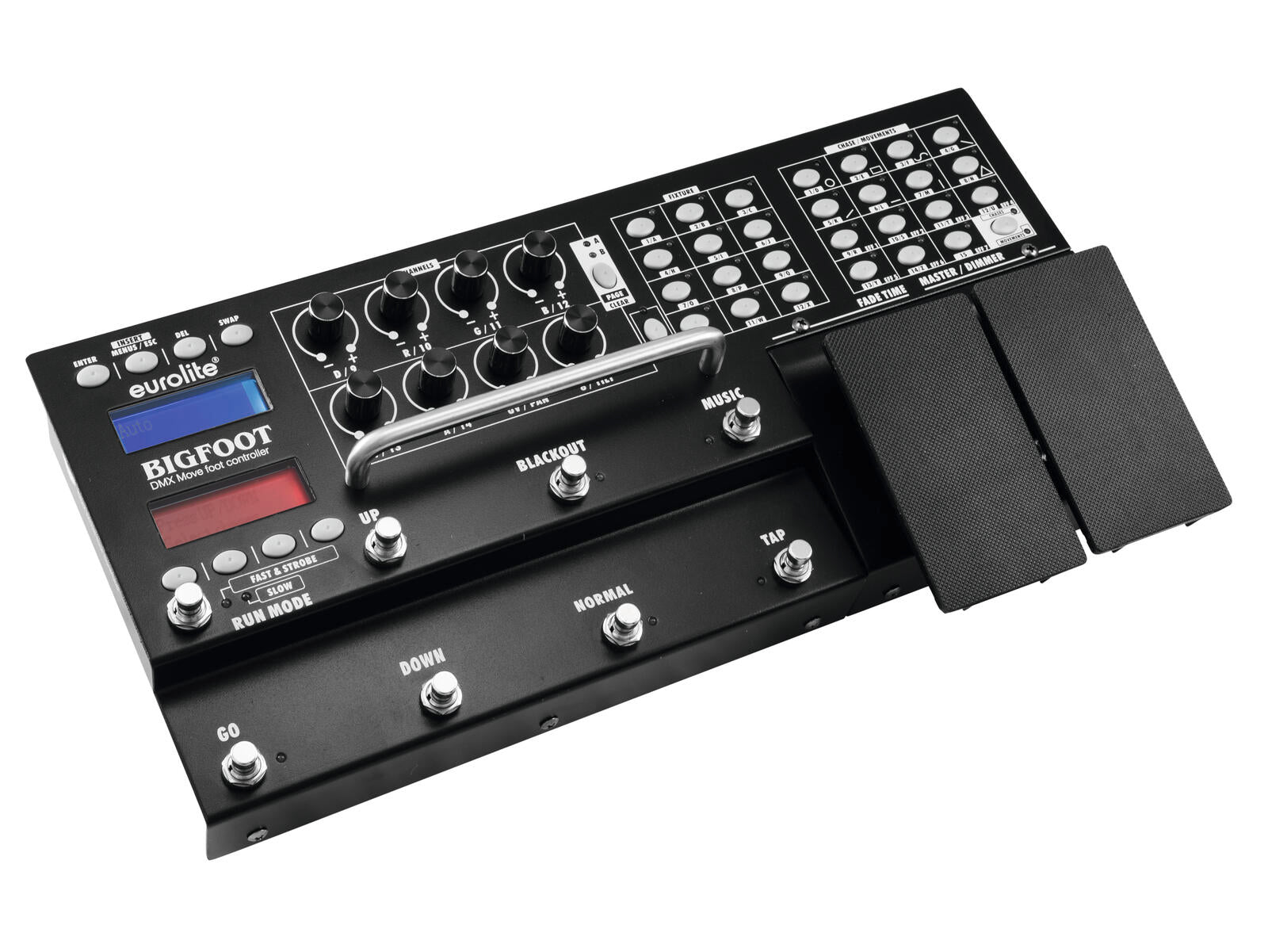

EUROLITE DMX Move Bigfoot Foot Controller 192
1
de
6
Cargando...
€251,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío gratis
Descripción
Descripción
A full-fledged DMX light controller in a foot bar, with FX generator
- Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
- For 12 fixtures with max. 16 control channels each
- USB port for storing program data
- Quick programming thanks to the integrated FX generator with movement patterns and color effects
- Several effects can be used simultaneously
- Programs can be freely named
- Simply preselect the desired program and trigger it with GO
- Sound control via audio signal or TAP button
- Convenient control of dimmer, fade time and other functions by foot
- 8 encoders on 2 levels for adjusting DMX values
- Blackout function
- Rugged metal housing
- Can transmit up to 192 DMX channels
- Programmable 15 scenes/chases each with 100 cues
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version
- Monochrome LCD display
- Firmware can be updated
- Non-slip pedal housing
- For application areas such as: Stage; mobile djs / entertainer; product presentations and lectures
- Silent operation
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz 9V DC 800 mA |
| Power consumption: | 10 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 15 scenes/chases each with 100 cues |
| DMX channels: | Output 192 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; sound to light via microphone; sound to light via RCA (F) mounting version |
| Housing color: | Black |
| Display type: | 2 x monochrome LCD display |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Type A |
| Color: | Black |
| PC connect: | , firmware can be updated |
| Housing design: | Non-slip pedal housing |
| Dimensions: | Width: 45 cm Depth: 24 cm Height: 10 cm |
| Weight: | 4.47 kg |
| Noise classification: | Class 0 (no noise at all) |
