ALUTRUSS Set TRILOCK 6082-2000 + Truss Transport Board Combi
1
de
5
Cargando...
€2.269,95
Precio por unidad
/
No disponible
Incl. IVA • B2B sin IVA
Envío €199
Descripción
Descripción

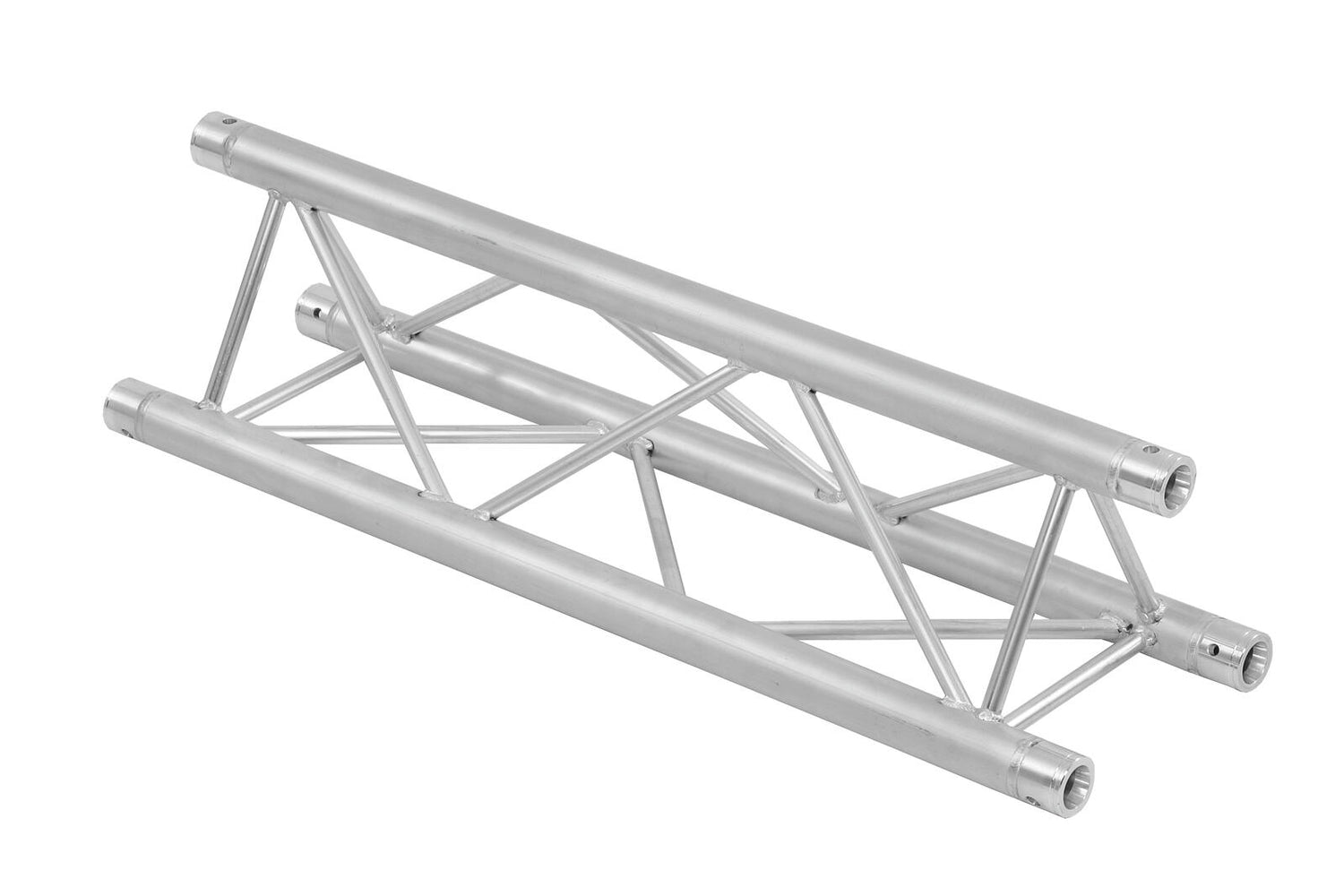

ALUTRUSS TRILOCK 6082-2000 3-way Cross Beam
3-point truss system
- Low weight
- Easy installation
- Trusspipe: 50 mm
- TÜV Süd certified
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
- For further information about this product, please refer to the Data Sheet under "Downloads"

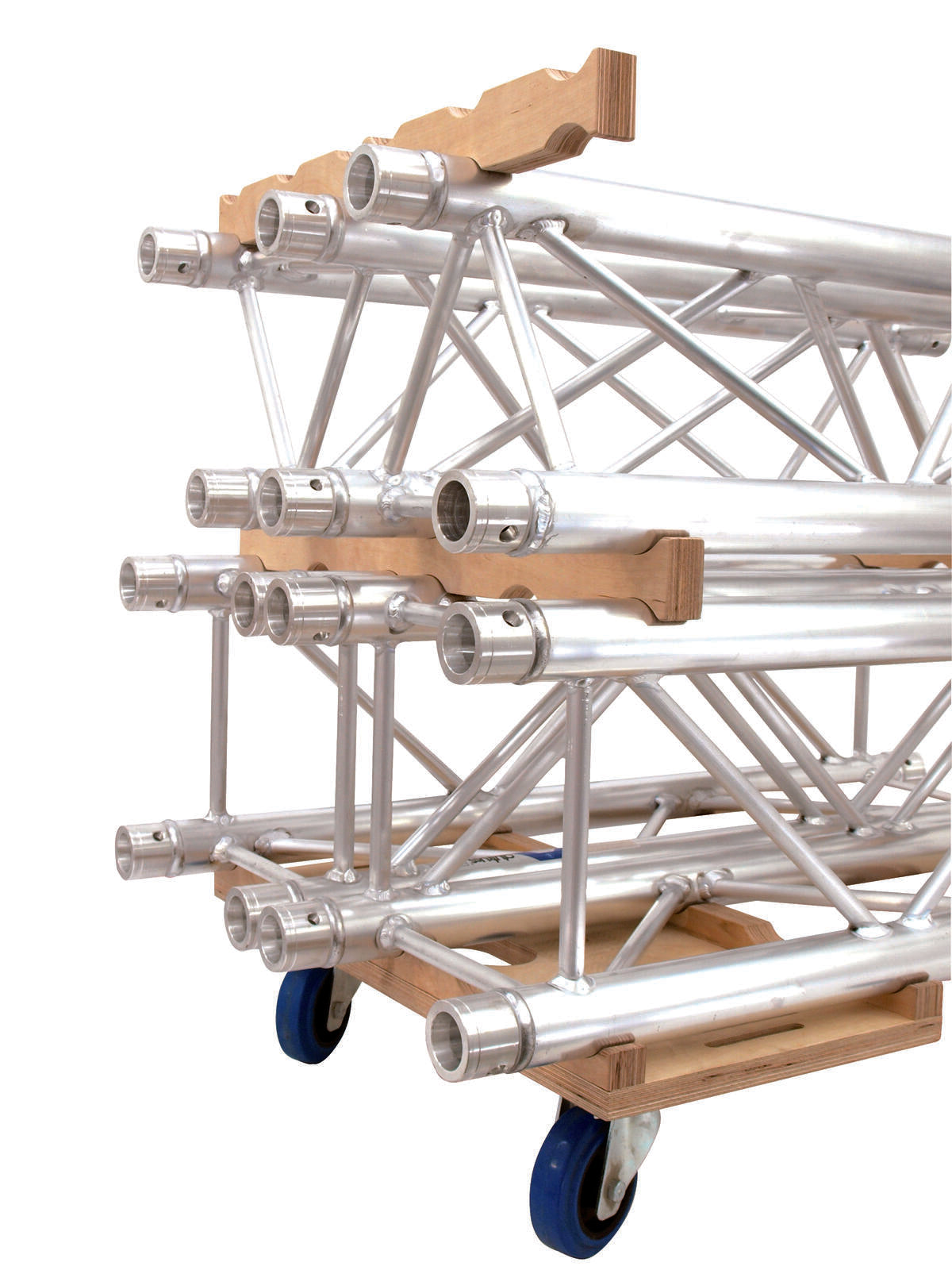

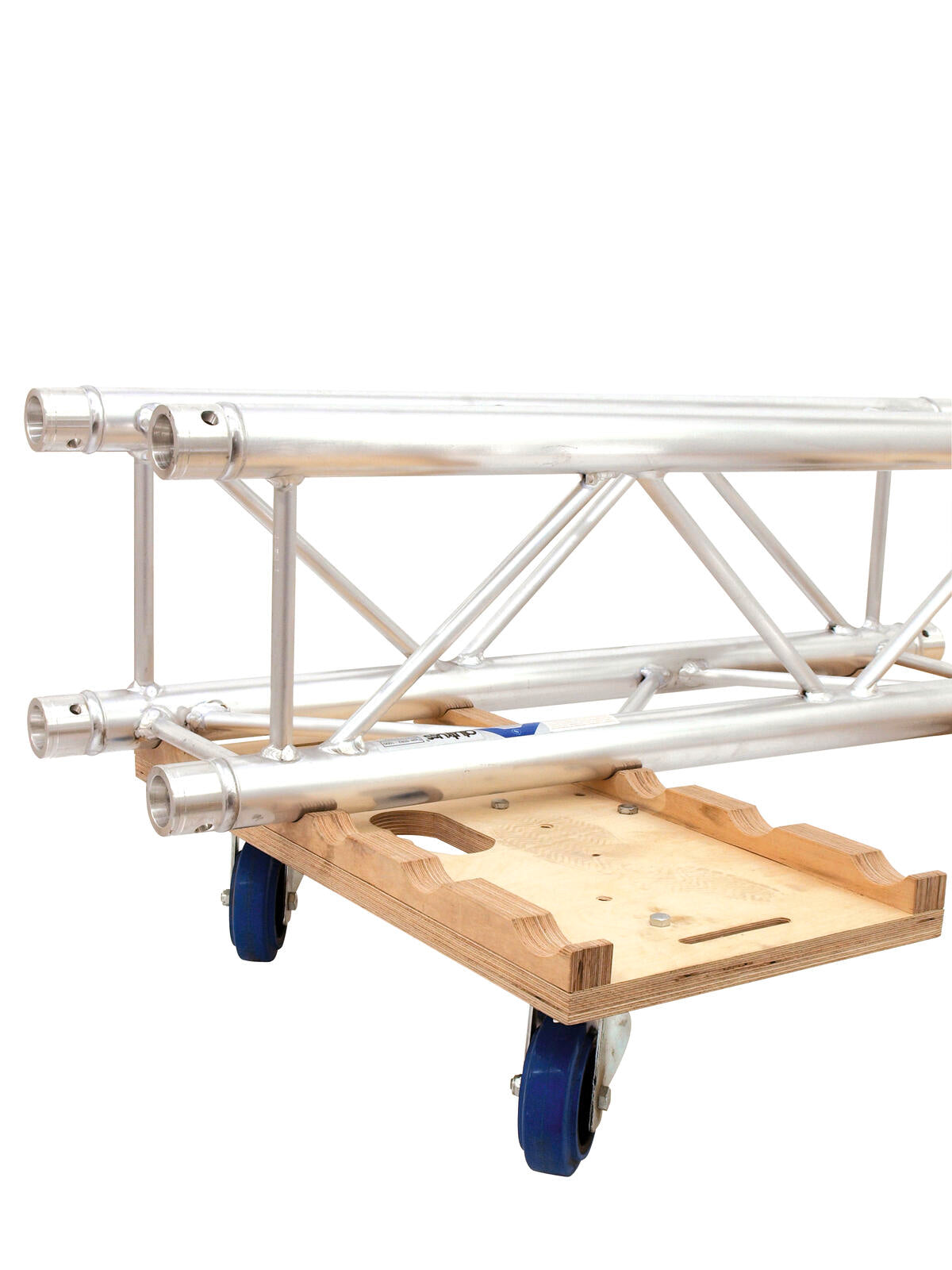

ALUTRUSS Truss Transport Board Combo for 3 Wheels
Transport cart for QUADLOCK and TRILOCK truss elements
- Practical transport cart made of multiplex wood
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Quick and secure stacking with optional stacking ridges
- Cut-outs for safety bands for safe transport of the truss elements
- Grip hole
- 12 borings for mounting castors (optional)
- The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
- Made in Germany
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
100 mm swivel castor
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
100 mm swivel castor
- Double-action brake (wheel and swivel)
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
ROADINGER Bolt Set for Wheels
Complete set (4 x screw, 4 x nut, 4 x washer)
- Screw: hexagon screw M8 x30 DIN933 galvanized
- Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
- Washer: size 8.4 DIN125 electrogalvanized

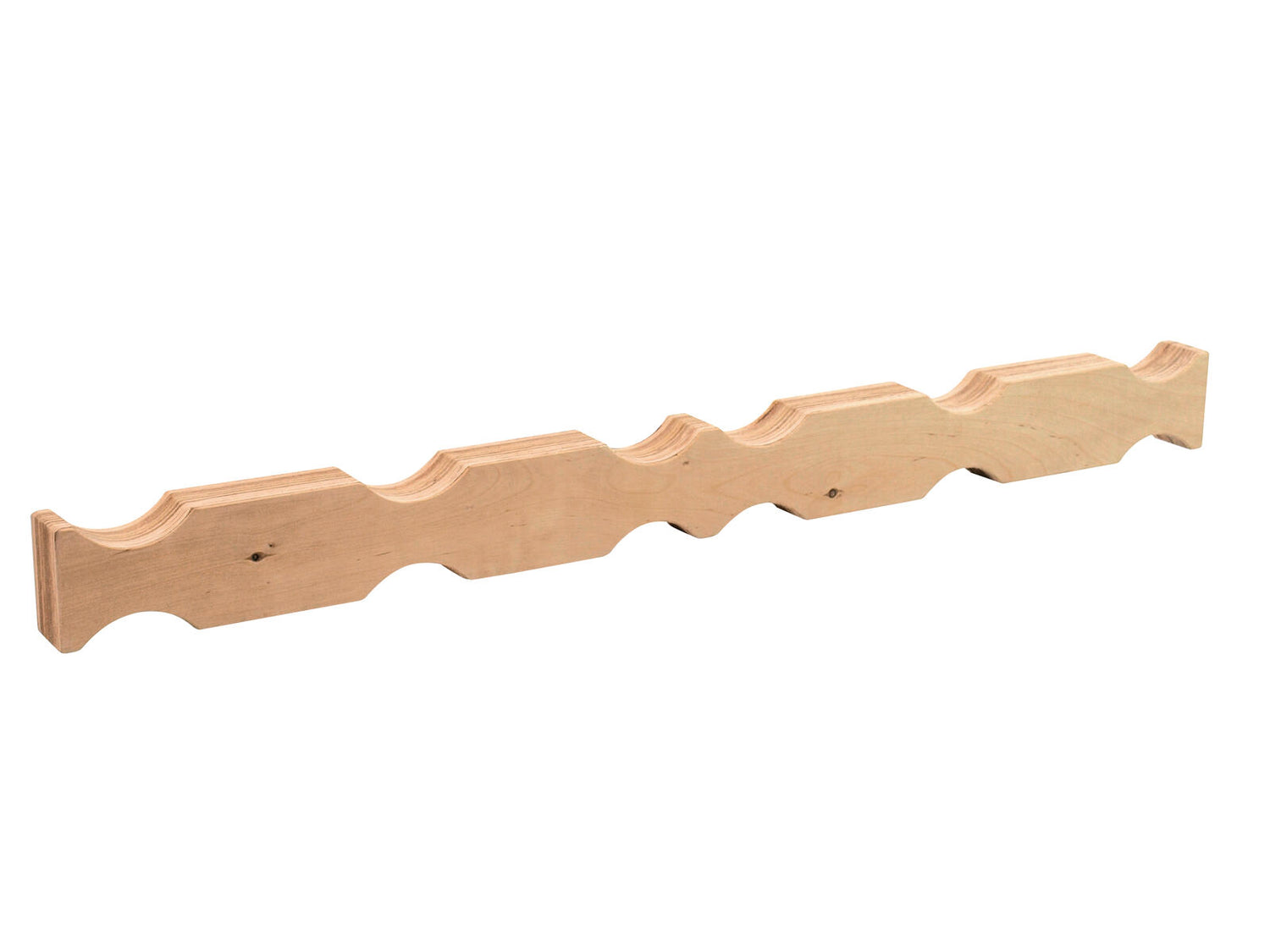

ALUTRUSS Truss Transport Ridge Combo
Stacking rail for QUADLOCK and TRILOCK truss elements
- Stacking ridge for quick and secure stacking of truss elements on matching transport carts
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Made in Germany
SHZ Clamping Belt S400 Ratchet 5m/25mm black
Clamping belt
- LC400/800daN surroundings
- Complies with EN 12195-2
- Ratchet lock
Scope of delivery

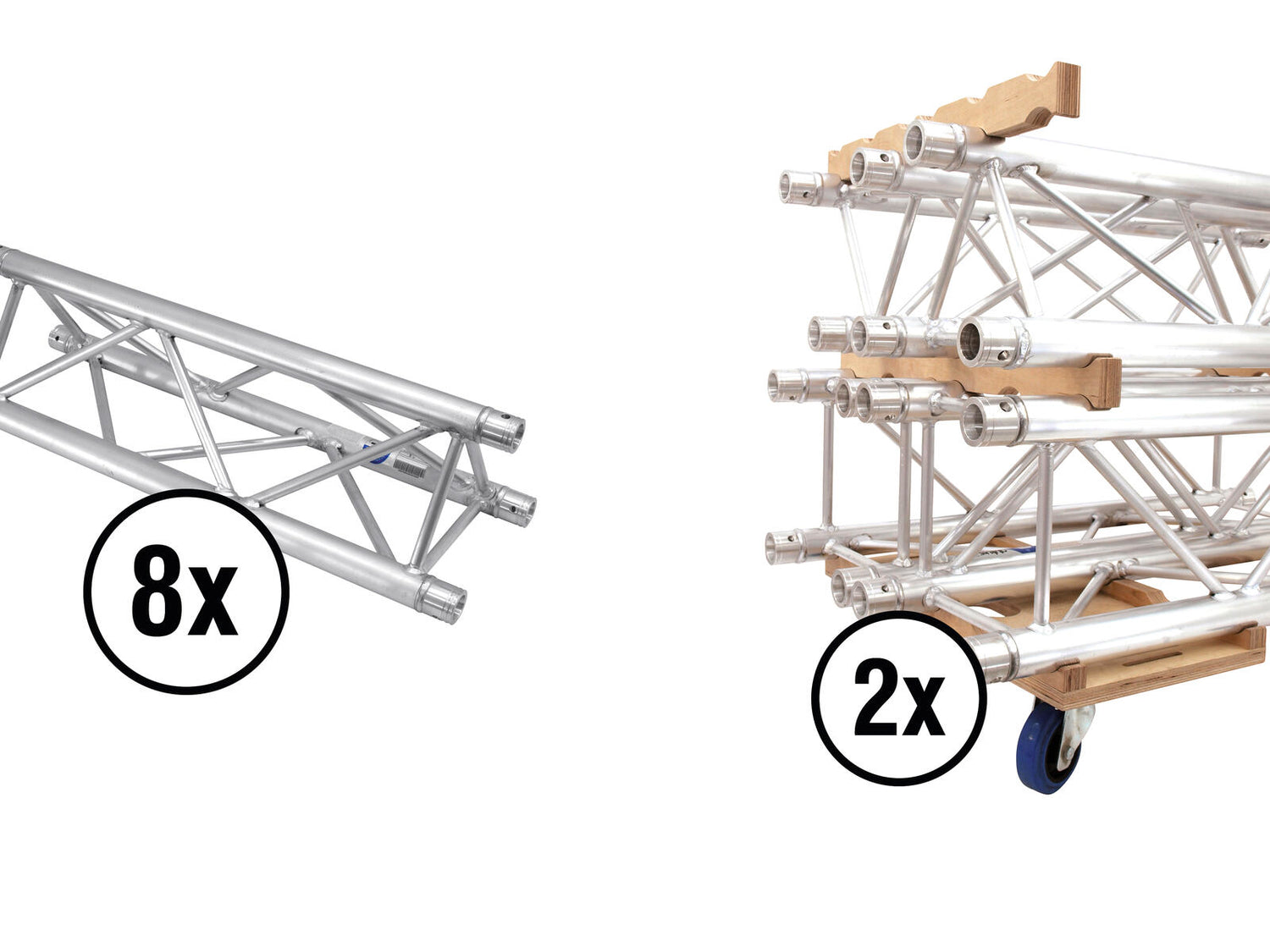

8 x ALUTRUSS TRILOCK 6082-2000 3-way Cross Beam
- 1 x connection set
| Weight: | 86.00 kg |
| ALUTRUSS TRILOCK 6082-2000 3-way Cross Beam | |
| Setup: | Easy installation |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG-welding |
| Welding material: | AlMg 5 |
| Color: | Alu colored |
| Strut diameter x thickness: | 16 x 2mm |
| Dimensions: | Length: 200 cm Width: 29 cm Height: 25.70 cm |
| Weight: | 8.20 kg |
| ALUTRUSS Truss Transport Board Combo for 3 Wheels | |
| Maximum load: | 6 truss systems vertical (height approx. 2.10 m) |
| Dimensions: | Length: 60 cm Width: 30 cm Height: 4.10 cm |
| Weight: | 2.19 kg |
| ROADINGER Swivel Castor 100mm BLUE WHEEL light blue | |
| Color: | Light blue |
| Dimensions: | Height: 12.8 cm Diameter: Ø 10 cm |
| Weight: | 0.66 kg |
| ROADINGER Swivel Castor 100mm BLUE WHEEL with brake | |
| Color: | Light blue |
| Dimensions: | Height: 12.8 cm Diameter: Ø 10 cm |
| Weight: | 0.93 kg |
| ROADINGER Bolt Set for Wheels | |
| Weight: | 0.09 kg |
| ALUTRUSS Truss Transport Ridge Combo | |
| Material: | Birch multiplex, 30 mm |
| Dimensions: | Length: 60 cm Width: 3 cm Depth: 5 cm |
| Weight: | 0.50 kg |
| SHZ Clamping Belt S400 Ratchet 5m/25mm black | |
| Standard: | EN 12195-2, |
| Lock: | Ratchet lock |
| Color: | Black |
| Dimensions: | Length: 500 cm Width: 2.50 cm |
| Weight: | 0.30 kg |
Especificaciones técnicas
Especificaciones técnicas
Brand: ALUTRUSS
SKU: STE-20000089
Peso: 90.0 kg
