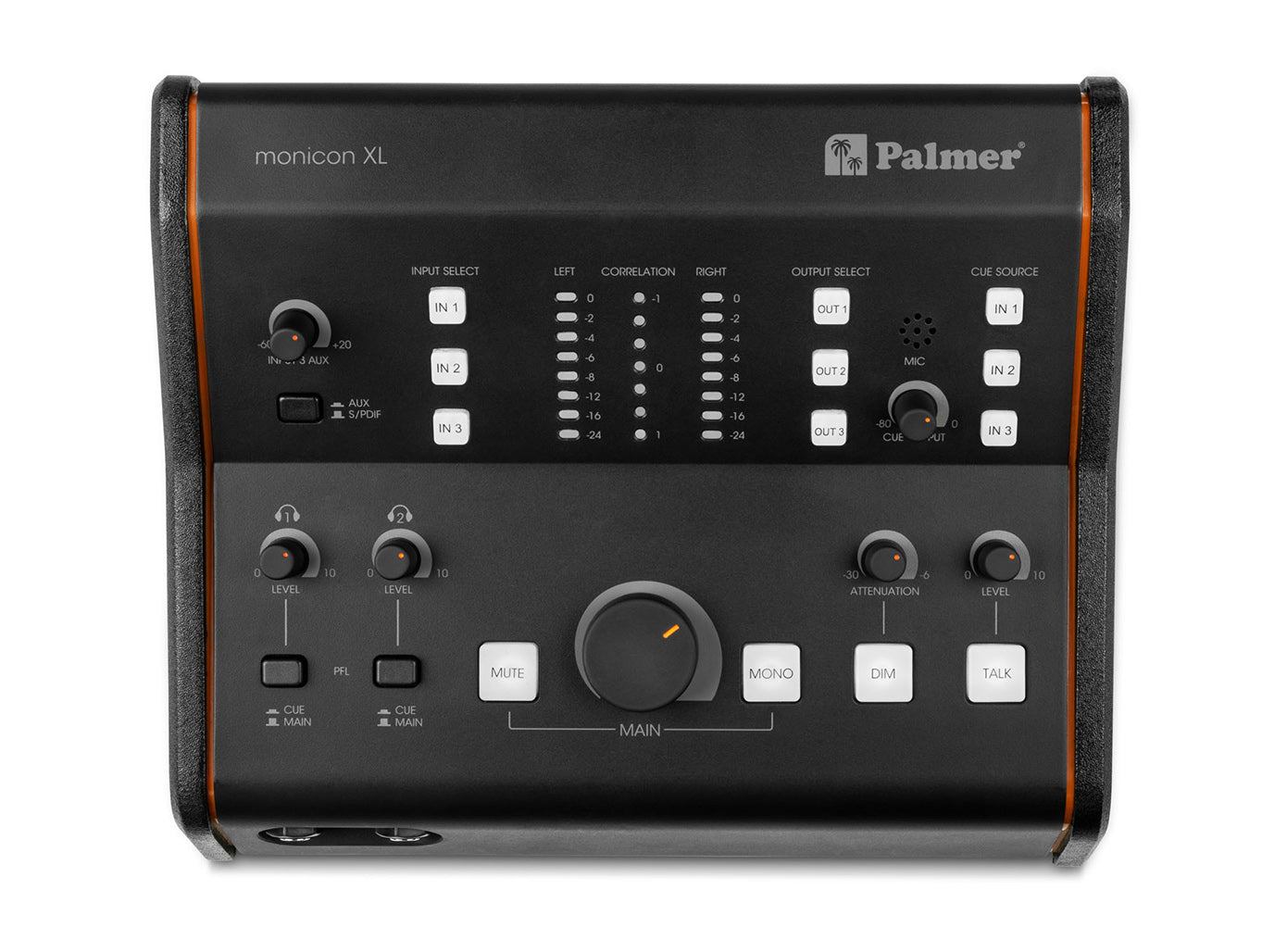

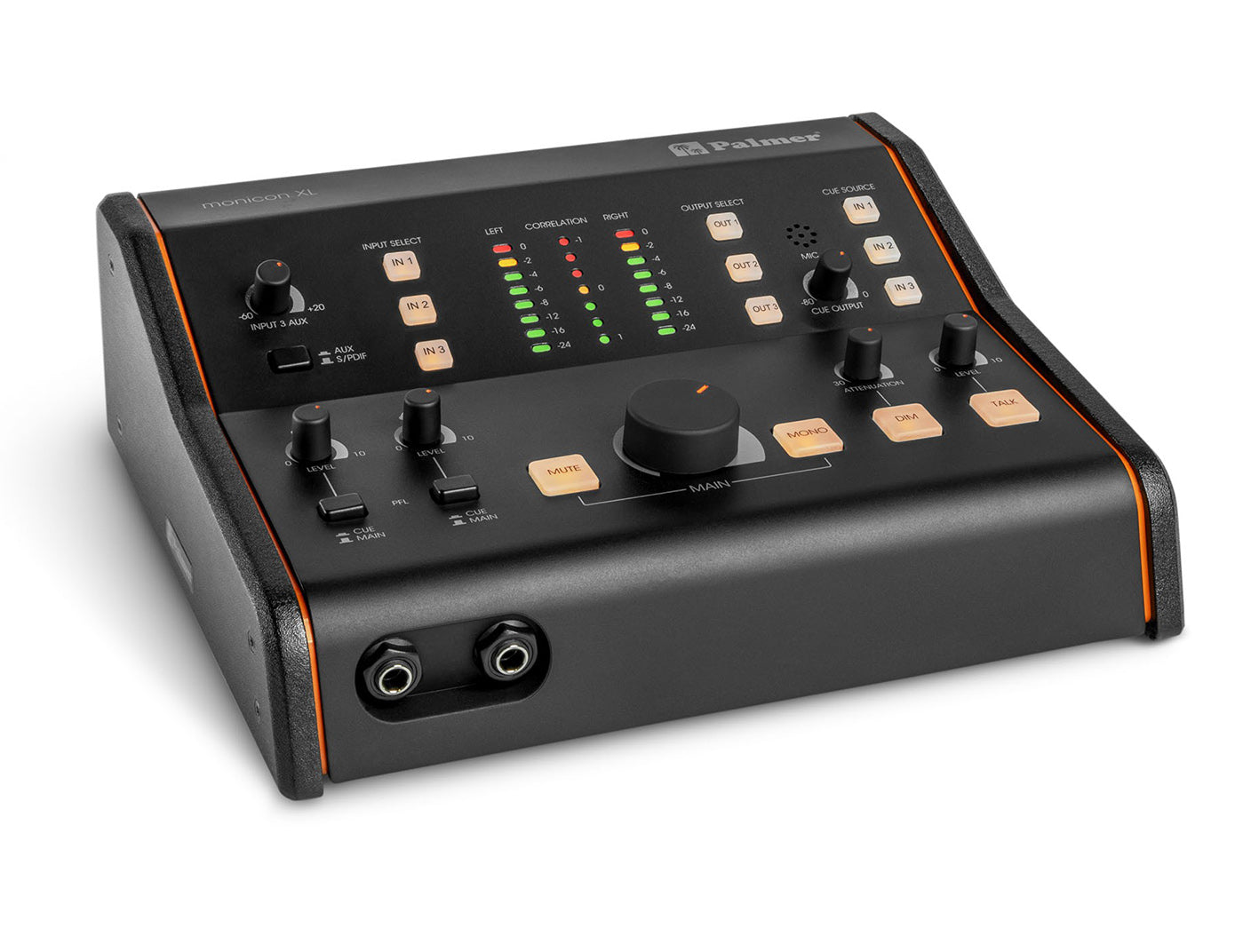

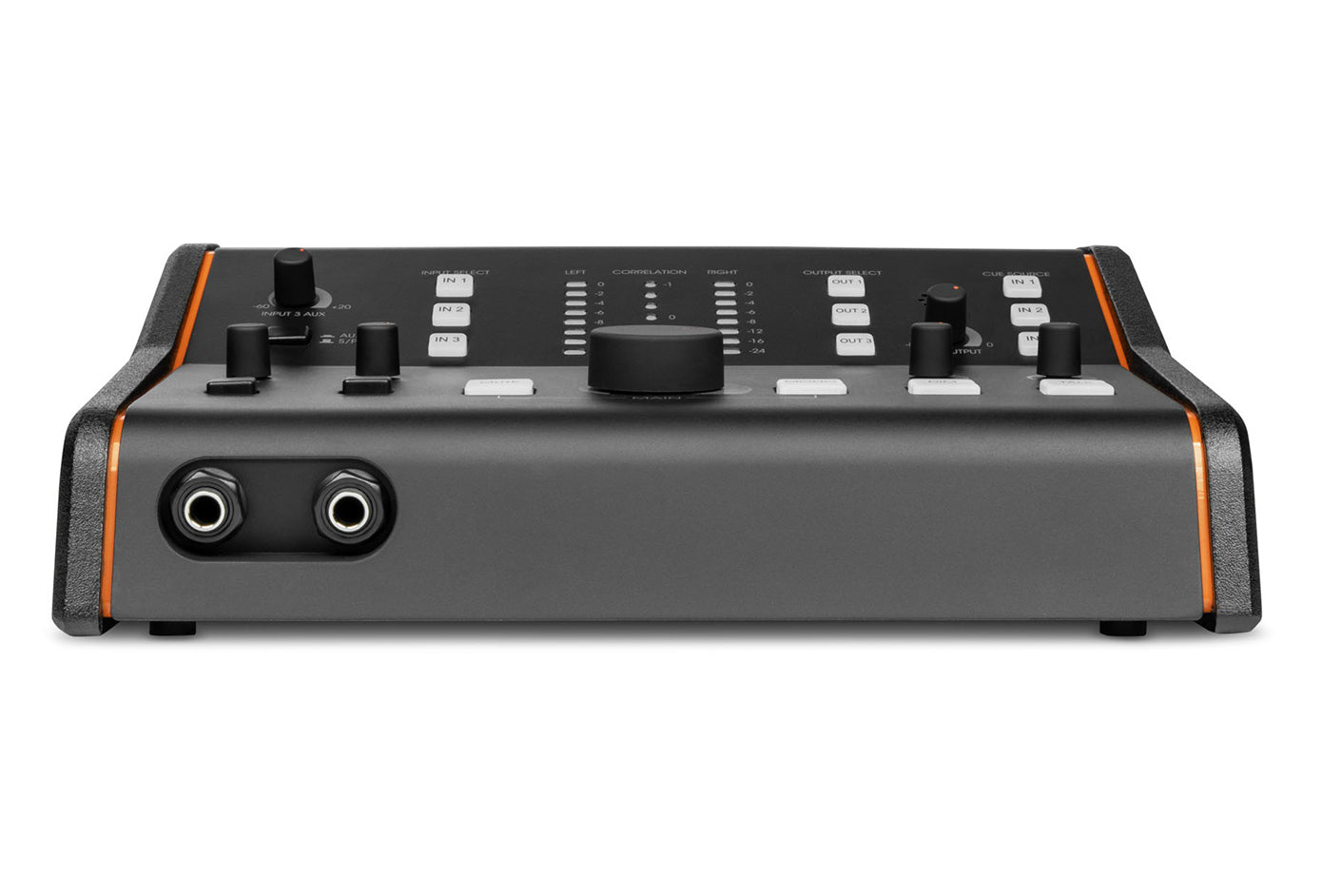

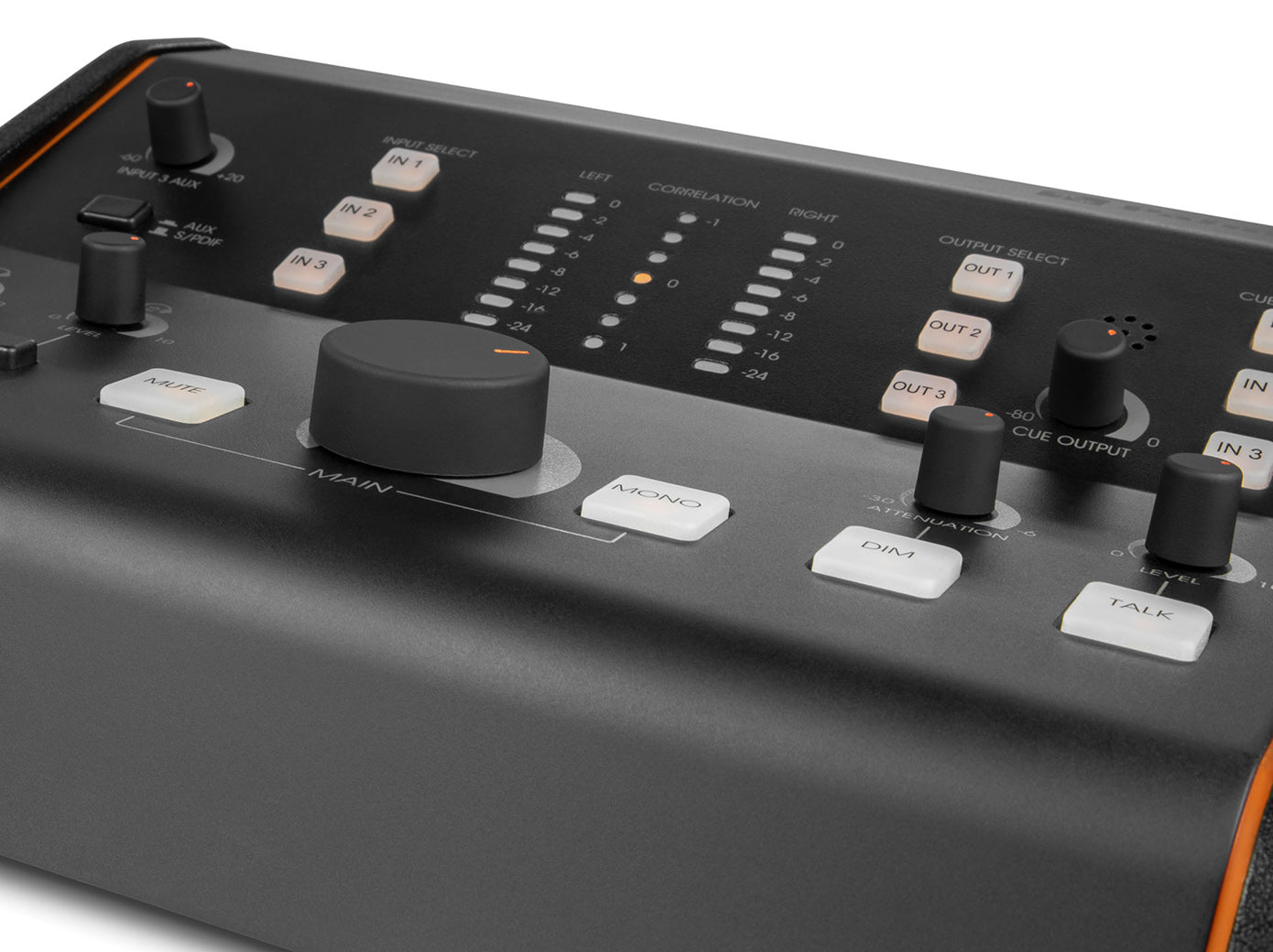

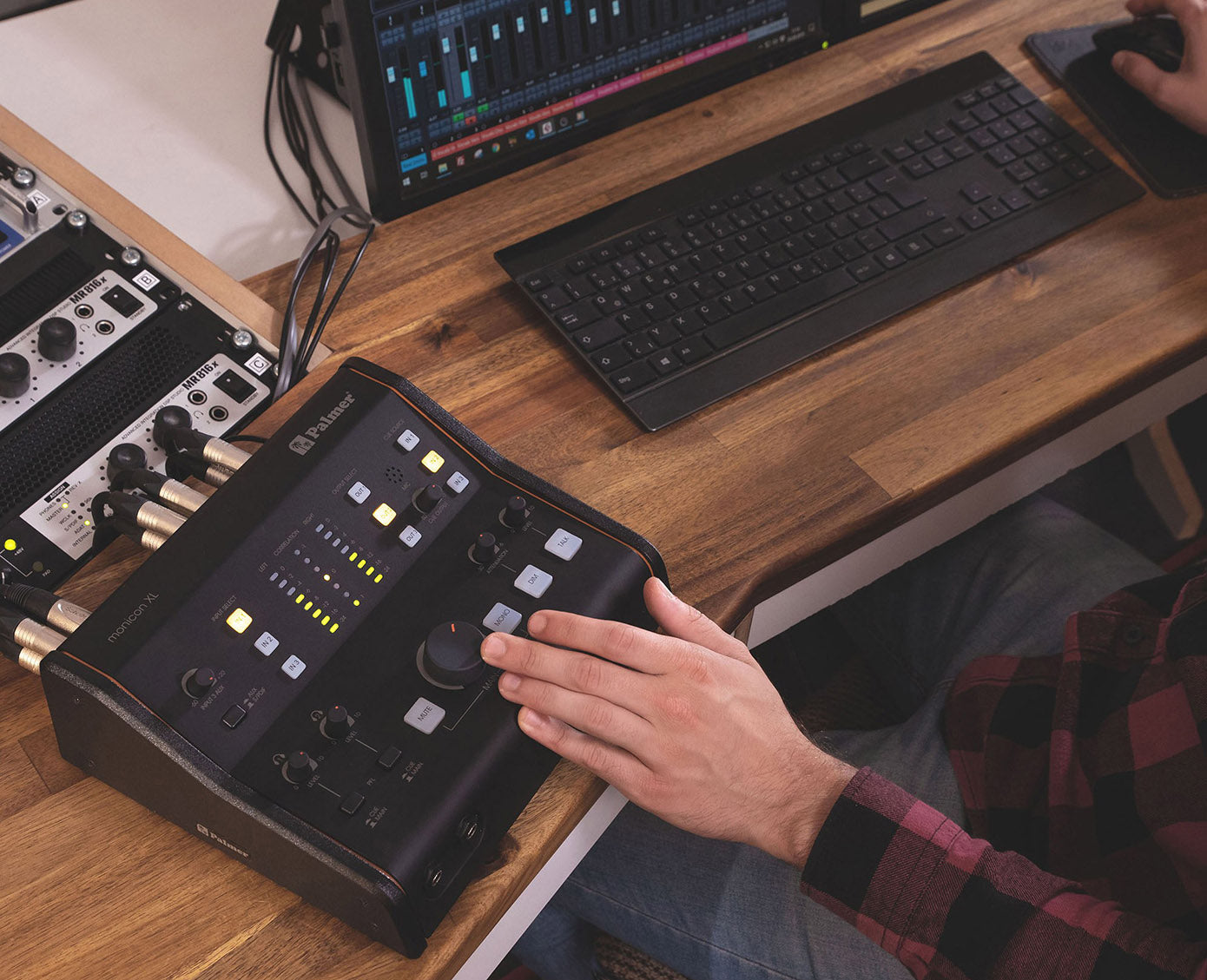

• Palmer MONICON XL controlador de monitor de estudio activo
• Procesamiento de señal analógica sin latencia

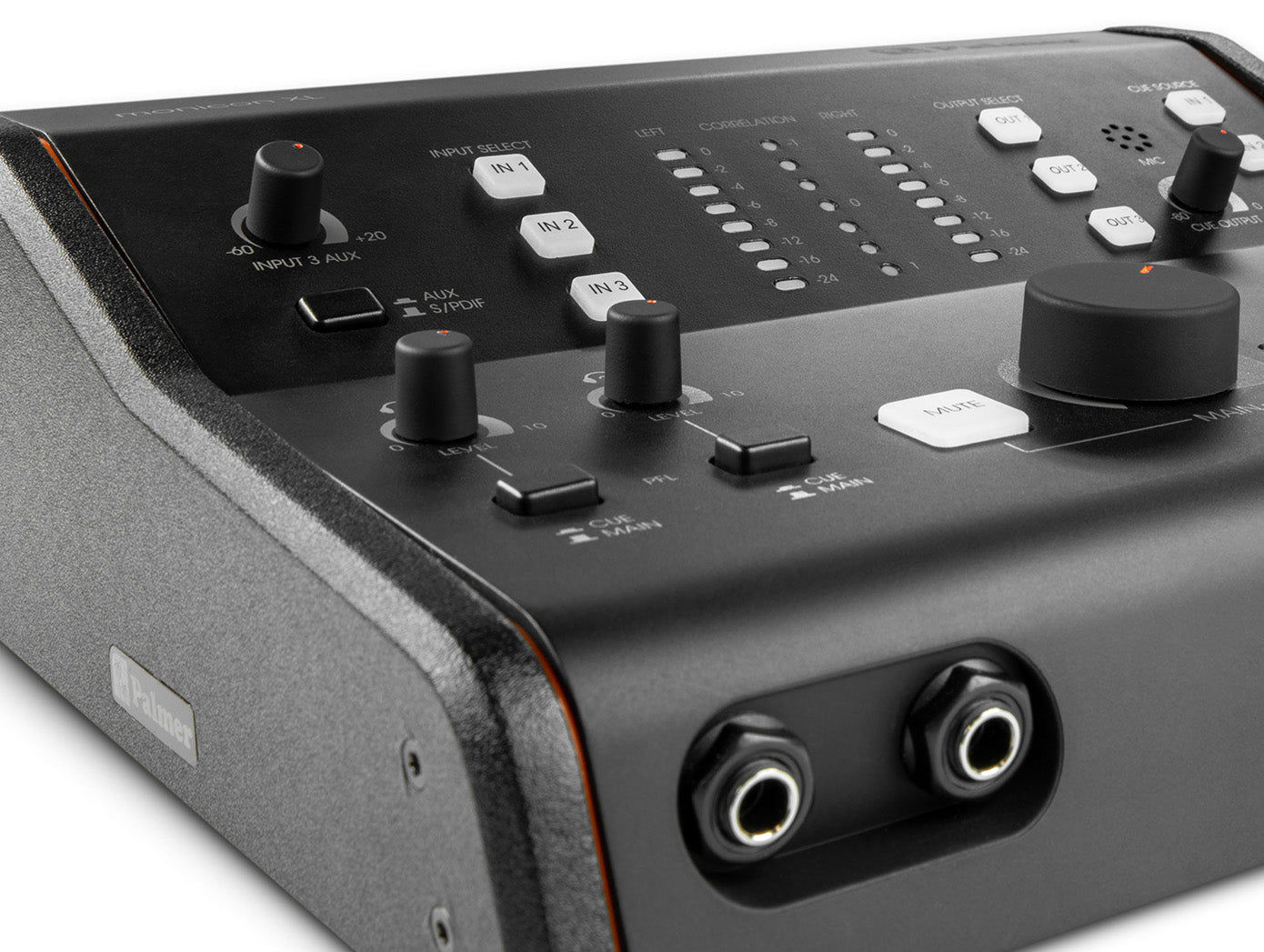

• Dos salidas de auriculares cue/main
• Medidor de correlación para control de fase
• Tres entradas analógicas y una entrada S/PDIF

• Three speaker outputs with gain for level calibration
• Level indicator L/R with calibration +4, +10 and +18 dBu
• Mono output for subwoofer or mono monitor
• Main out and direct out

Channels

3 x switchable balanced outputs, 1 x CUE output, 1 x main output

Inputs

3 + SPDIF

Input connectors

3.5 mm TRS , 6.3 mm jack , RCA , SPDIF

Input type

balanced/unbalanced (depending on TS/TRS connection)

Max. input level

20 dBu

Input impedance

(balanced) 10.000 Ohm(s) , (unbalanced) 5.000 Ohm(s)

Outputs

7 x stereo

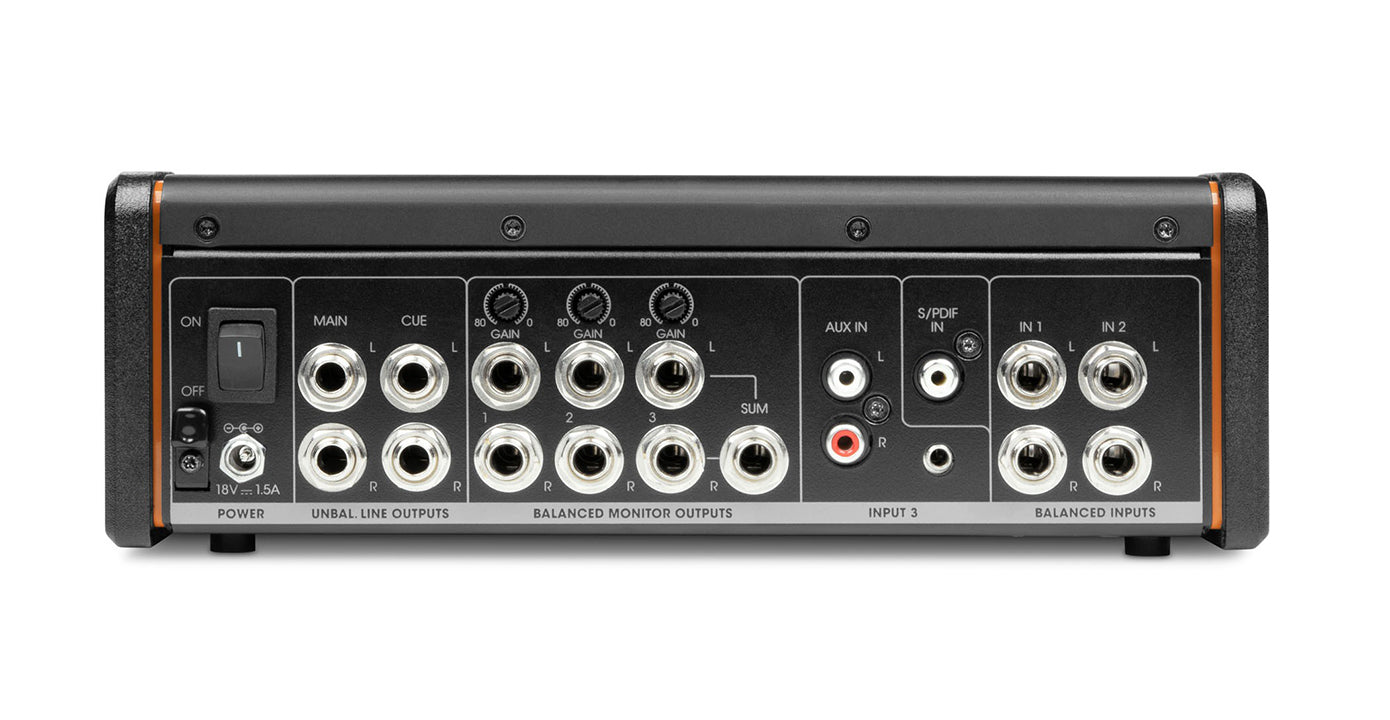

Output connectors

TRS balanced (1 - 3) , TRS unbalanced (CUE, MAIN, headphones 1 & 2)

Output impedance

600 Ohm(s)

Frequency response

12 - 90000 Hz

Total Harmonic Distortion (THD)

0.002 % (BW 20 - 20,000 Hz)

Signal-to-noise ratio (SNR)

102 dB (a-weighted) @ + 4 dBu

Dynamic range (DR AES17)

115 dB

CMRR

> 55 dB

Max. attenuation

(Attenuator + Mute) 111 dB , (Attenuator) 86 dB

Controls

attenuation , Audio DIM , input selector , mono , mute , output selector , PFL source , Talkback

Housing material

sheet steel , wood

Cabinet surface

Powder coated
