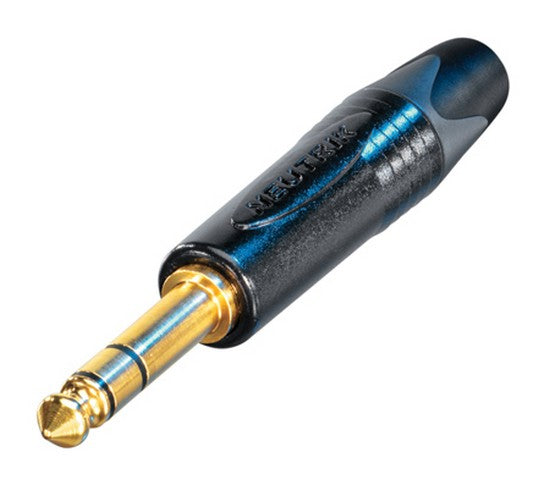

Neutrik NP3X-B jack plug

Name: Neutrik NP3X-B jack plug
Brand: Neutrik
SKU: NEU-NP3X-B
Price: 9.00 EUR
Availability: InStock

(0)

€9,00

Incl. IVA

Vea nuestras más de 1000 opiniones en ★Trustpilot

Descripción

Conector Neutrik para montaje
Conector jack estéreo
Fabricado en metal

Neutrik NP3X-B

3 pol 1/4" professionel telefonstik, guldkontakter, sort skal

Den robuste professionelle telefonstikserie forbedrer designet af den eksisterende C-serie ved at tilbyde det tyndeste tilgængelige A-gauge 1/4" stik med unik Neutrik chuck-type kabelaflastning på markedet. Den slanke skal med en bredde på 14,5 mm opfylder de nyeste krav til højeste tæthed jackfelter (15,88 mm jack pitch).

Den præcist maskinerede en-dels spidskontakt uden nitter gør det unikt og undgår tilslutning i en stikkontakt eller brud på spidsen.

Plug X-serien tjener alle applikationer såsom guitarapplikationer, audiokabler, slanger, højttalere, forstærkere og mixerpulte.

Funktioner & Fordele

Ekstra slank 1/4" stik for højeste pakningstæthed
Robust diecast skal i stilfuldt design
Dokumenteret chuck-type kabelaflastning for pålidelig kabelholdelse
Slankt design for bedst håndteringskomfort
Præcisionsmaskinerede en-dels kontakter - undgå tilslutning af spidse kontakten

Especificaciones

Weight (kg)

0,1

Más especificaciones

Specifications

Connection Type	Plug
Gender	male
Electrical
Contact resistance	depends on mating connector m
Dielectric strength	1 kVdc
Insulation resistance	> 2 G (initial)
Rated current per contact	depends on mating connector A
Rated voltage	< 50 V
Mechanical
Cable O.D.	4 - 7 mm
Lifetime	> 1000 mating cycles
Wiresize	1 mm²
Wiresize	18 AWG
Wiring	Solder contacts
Material
Bushing	Polyacetal (POM) + PU
Contact plating	0.2 µm Au
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6.6 30 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Polyacetal (POM)
Environmental
Standard compliance	IEC 60603-11 / EIA RS-453
Solderability	Complies with IEC 68-2-20
Temperature range	-20 °C to +65 °C

Brand: Neutrik

SKU: NEU-NP3X-B

Barcode: 7613187000690
