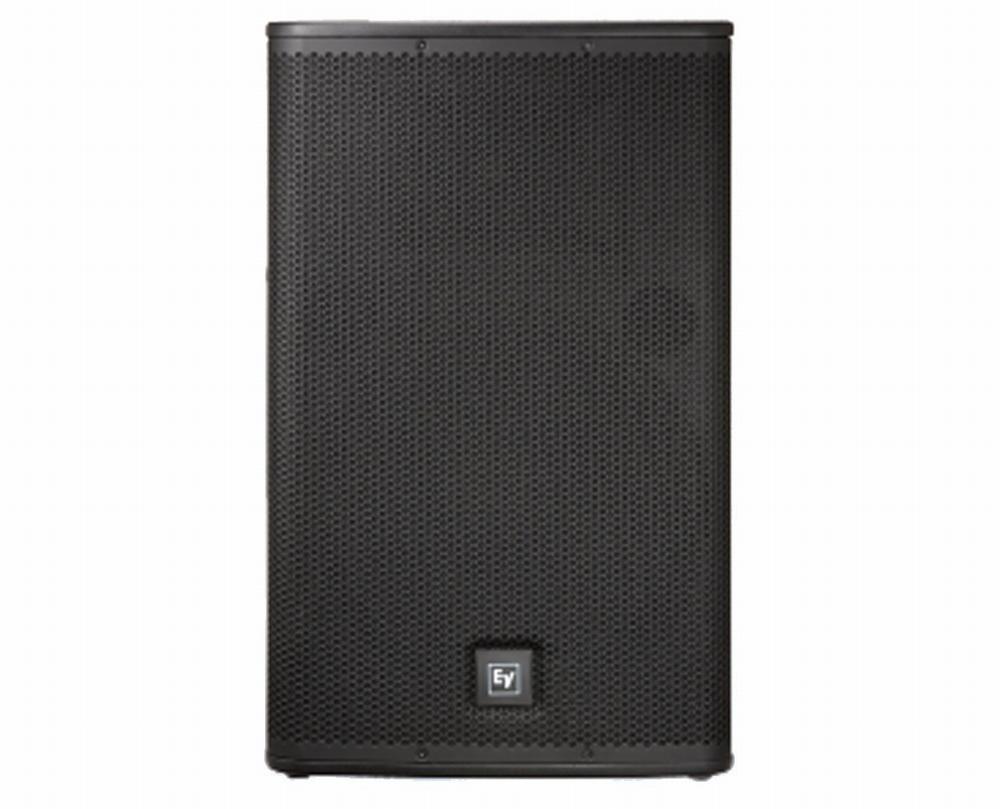

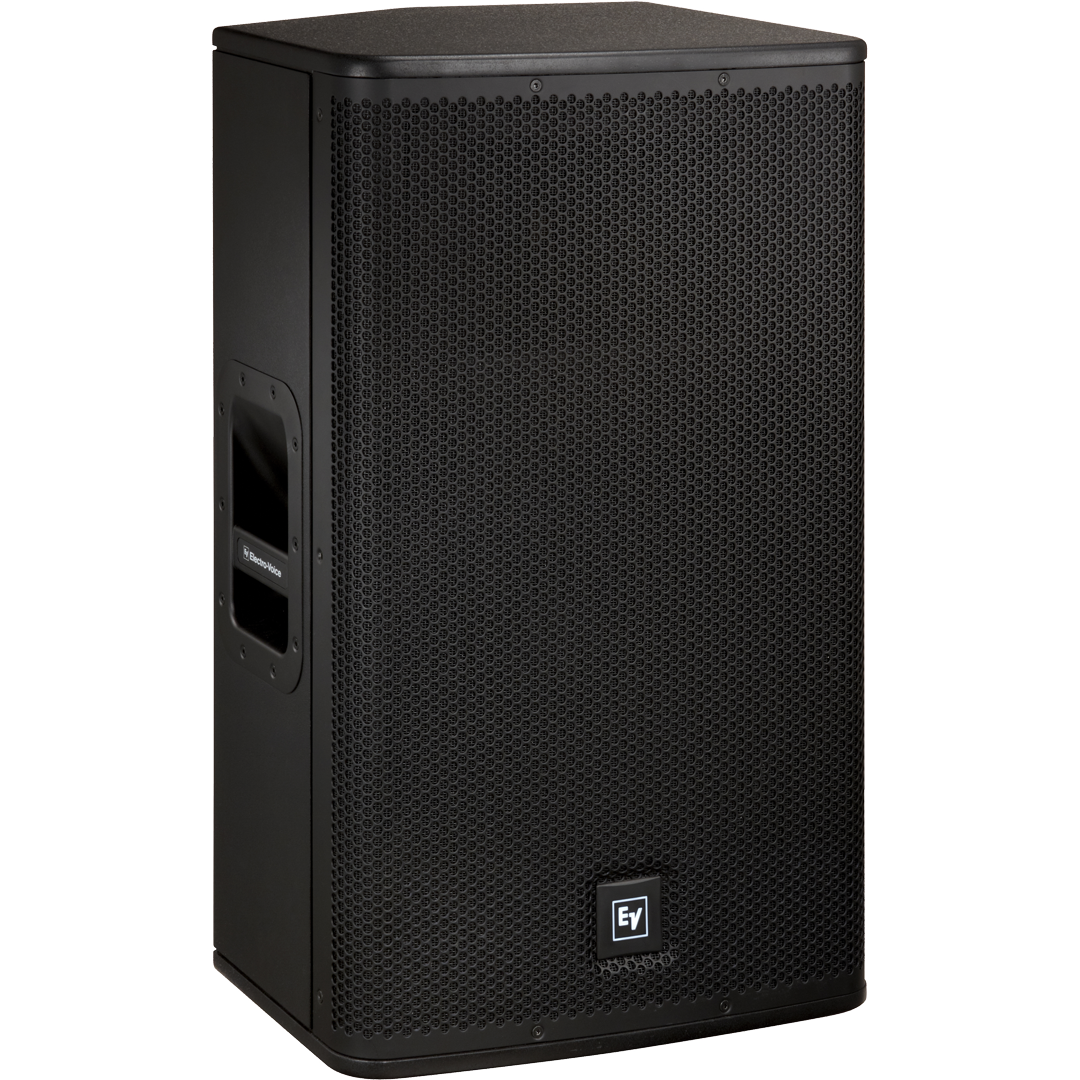

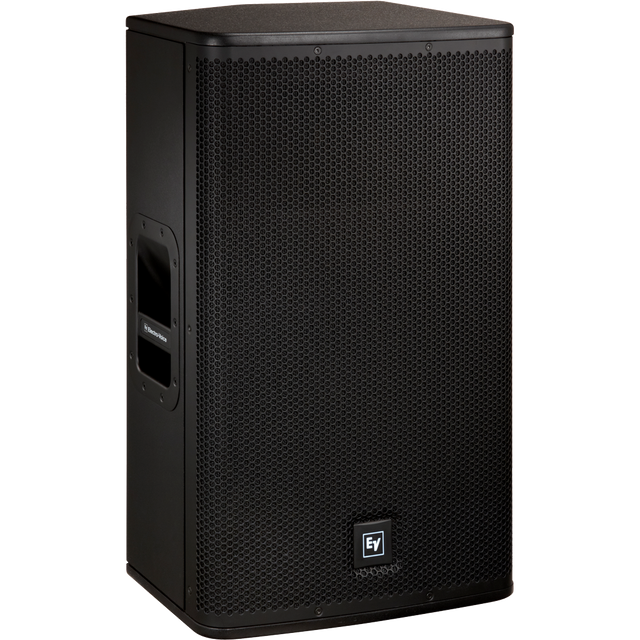

EV ELX115P is an active loudspeaker with a built-in 1000 Watt digital class D amplifier, the speaker has plenty of power and surplus as well as impressive sound quality combined with ELX118P active subwoofer.

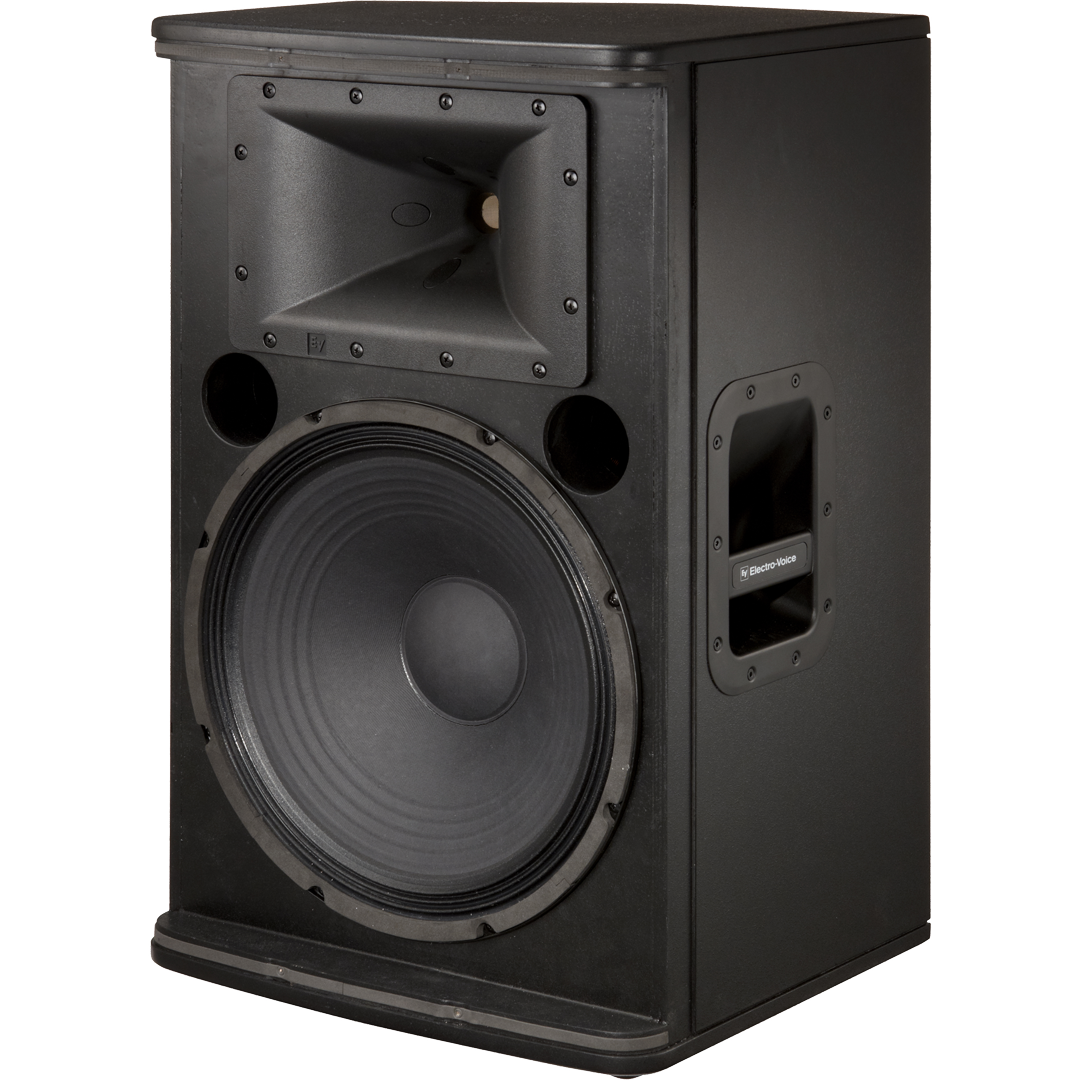

ELX115P from Electro-Voice is a 2-way active loudspeaker with a 15" woofer and 1.5" Titanium Diaphragm Compression driver, the entire speaker is crafted in a beautiful design using the best materials that ensure you super sound quality and a strong partner for many years to come.

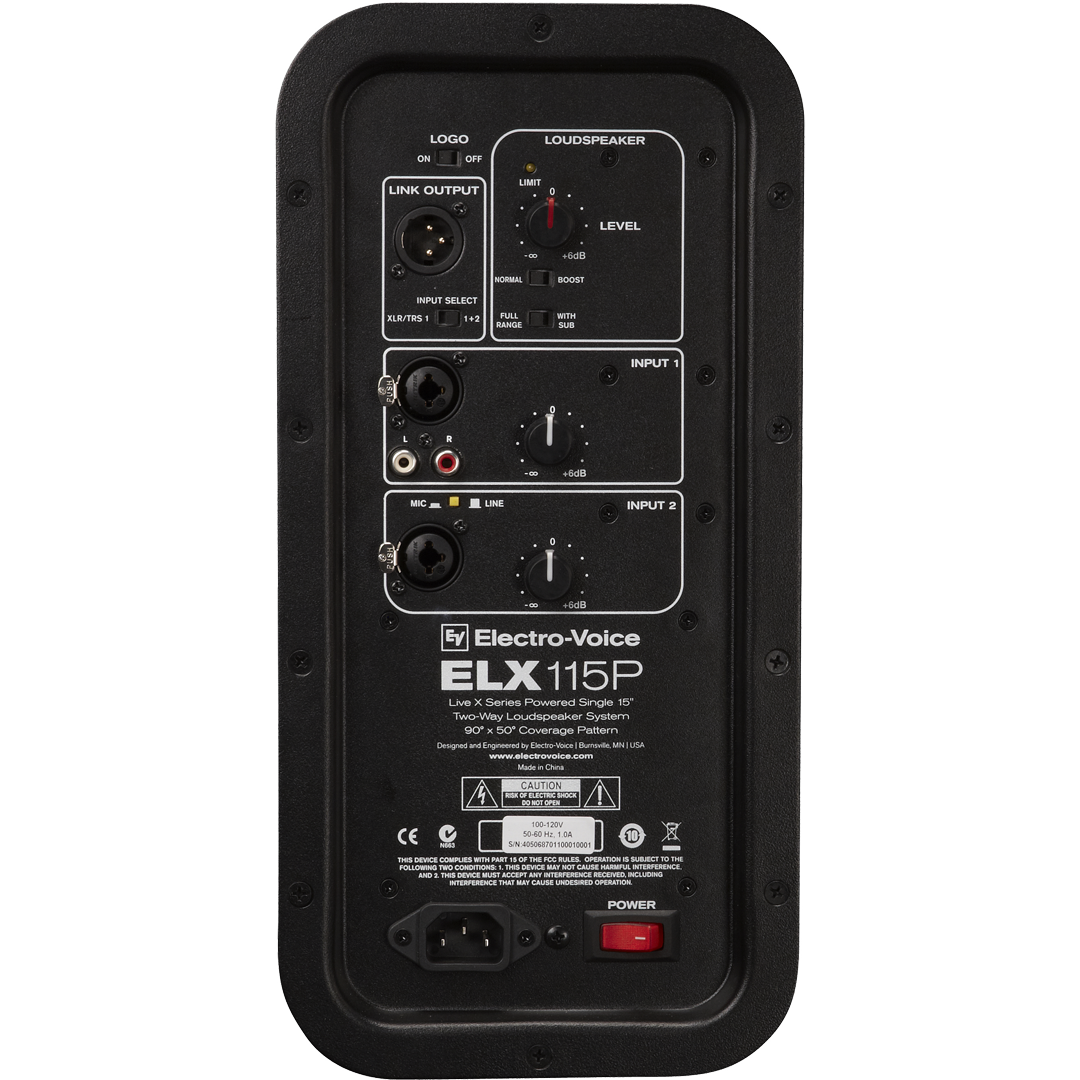

Electro-Voice ELX115P has built-in 2 inputs for connecting both microphone or line signals, simple switches and volume control make it easy to operate the equipment, even in complex setups.

Electro-Voice ELX115P

EV ELX115P is an active speaker with a built-in 1000 Watt digital class D amplifier, the speaker has plenty of power and surplus as well as impressive sound quality combined with ELX118P active subwoofer.

ELX115P from Electro-Voice is a 2-way active speaker with a 15" woofer and 1.5" Titanium Diaphragm Compression driver, the entire speaker is executed in a beautiful design in the best materials that ensure you super sound quality and a strong partner for many years to come.

Electro-Voice ELX115P has built-in 2 inputs for connecting both microphone or line signals, simple switches and volume control make it easy to operate the equipment, even in complex setups.



• ELX115 performance with self-amplification
• 44 Hz - 20 kHz frequency range
• Lightweight, cool-running 1000 W Class D amp
• Biamped with 24 dB/octave crossover
• Transducer protection
• Bypassable high-pass for external subwoofer
• XLR, TRS, and RCA input connections
• Versatile gain, mixing, and processing controls
• Pre- or post-mix parallel outputs

Case Material	9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Color	Black
Nominal Impedance	8
Power Rating	1000 W
Speaker Type	Full-range, mid-high, two-way
Woofer Size	381 mm (15")
Frequency Response (-3 dB)	56 - 18000 Hz
Frequency Response (-10 dB)	44 - 20000 Hz
Internal Crossover	Yes
Max. SPL/1m(calc)	134 dB
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	50 °
LF Transducer	(1) EVS-15K, 381mm (15") Woofer
HF Transducer	DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency	1.7 k Hz
Connector Type	Parallel Neutrik® NL4
Grill	18GA Steel with Black Powdercoat
Height	708 mm (27.87")
Width	432 mm (17.01")
Depth	382 mm (15.04")
Weight Net	22.5 kg (49.6 lbs)
Shipping Weight	29.5 kg (65.04 lbs)
