Name: dbx 1215 2 x 15 Band Graphic Equalizer
Brand: dbx
SKU: DBX-1215
Price: 326.00 EUR
Availability: InStock

1 2

4,6 de 5 ★ en Trustpilot

Save 2%

€326,00 ~~€335,00~~

Incl. IVA

Envío gratuito

Entrega estimada en 3–8 días laborables.

Accesorios compatibles con:

Perfex XLR cable (5m)

€17,00

Descripción

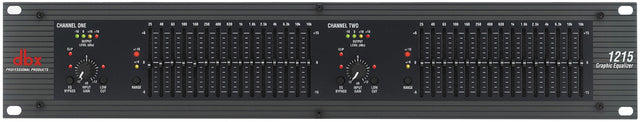

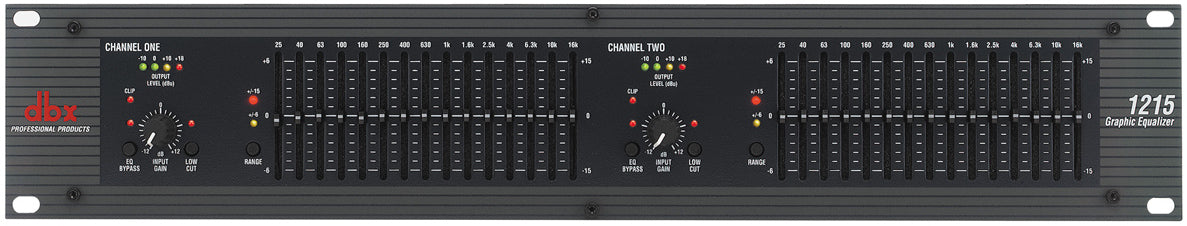

dbx 1215 is a dual 15-band graphic equalizer with ISO frequency center and ±6 and ±15 dB switchable boost/cut.

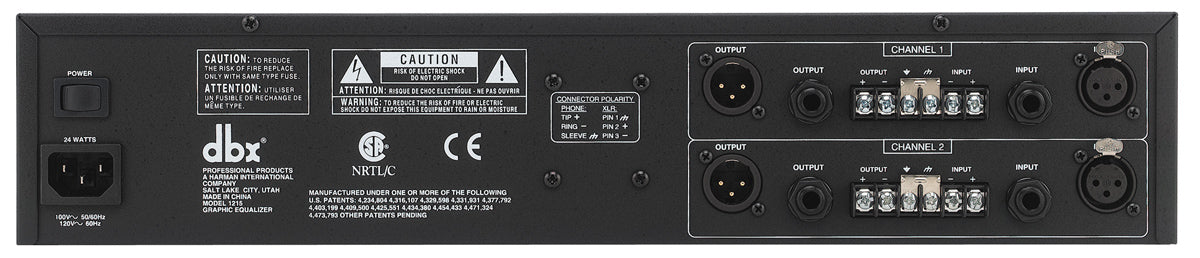

1215 from dbx includes both XLR, JACK, and terminal connectors for balanced connections, all of which are RF filtered.

dbx has used the best components in the 1215 equalizer, ensuring impressive sound quality.

dbx 1215 Dual Channel 15-Band Equalizer

dbx® 12 Serien blev designet til at imødekomme behovene i de mest krævende lydforstærkningsmiljøer, samtidig med at de tilbyder enkelheden ved ligefremme kontroller. 1215 leverer standardfunktioner som dual kanaler, 15 2/3 oktavbånd, ISO frekvenscentre, +/-12 dB indgangsforstærkningsområde og skiftbare 40Hz/18 dB pr. oktav lavpasfiltre, men inkluderer også andre gennemtænkte funktioner. Disse inkluderer 45 mm faders; valgbar +/-6dB eller +/-15dB boost/cut område for præcise forstærkningsjusteringer; XLR, barrier strip og 1/4'' TRS stik for nem installation; balancerede indgange og udgange for stille drift; og chassis/signal jordløft kapaciteter for hurtig brummisolering. Det visionære design af dbx 12 Serien gør dit arbejde lettere.

dbx 12 Serien Equalizere blev præcisionsingeniørarbejdet for at give år med vedligeholdelsesfri drift i enhver applikation. Den magnetisk isolerede transformer, elektronisk balancerede/ubalanserede indgange og servo balancerede/ubalanserede udgange, RF-filtreret indgange og udgange, og power-off hard-wire relay bypass med 2 sekunders opstartsforsinkelse var skridt, vores ingeniører tog for at sikre kompatibilitet for alle installationer. Kun de bedste komponenter blev anvendt, hvilket giver en frekvensrespons på 10Hz til 50kHz, større end 90dB SNR (ref +4dBu), mindre end 0.005% THD +Noise (1kHz ved +4dBu), og interkanal crosstalk på mindre end -80dB fra 20Hz til 20kHz. Al denne opmærksomhed på detaljer er indeholdt i et 2U stål/aluminium chassis.

Skiftbare boost/cut områder på ±6 eller ±15 dB
Elektronisk balancerede/ubalanserede indgange
Servo balancerede/ubalanserede indgange
RF filtrerede indgange og udgange
XLR, Barrier Strip, og 1/4" TRS stik
-12dB/+12dB indgangsforstærkningsområde
18dB/oktav 40Hz Bessel lavpasfilter
Chassis/signal jordløft kapabilitet
Intern strømforsyning transformer
Power-off hardwire relay bypass med 2-sekunders opstartsforsinkelse

Especificaciones

Weight (kg)

5

Más especificaciones

Input Connectors	1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Input Type	Electronically balanced/unbalanced, RF filtered
Input Impedance	Balanced 40 kOhm, unbalanced 20 kOhm
Max Input	>+21dBu balanced or unbalanced
CMRR	>40dB, typically >55dB at 1kHz
Output Connectors	1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Output Type	Impedance-balanced/unbalanced, RF filtered
Output Impedance	Balanced 200 ohm, unbalanced 100 ohm
Max Output	>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth	20Hz to 20kHz, +0.5/-1dB
Frequency Response	<10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range
Dynamic Range	109dB; 115dB
Signal to Noise Ratio	90dB, 97dB
THD+Noise	<0.005%
Interchannel Crosstalk	<-80db, 20Hz to 20kHz
Bypass Switch	Bypasses the graphic equalizer section in the signal path
Low cut Switch	(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
Range Switch	(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
I/O Meter	4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
Indicators	EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)
Operating Voltage	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption	24W
Power Connector	IEC receptacle
Dimensions	3.5" H X 19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
Unit Weight	8.5 lbs. (3.9 kg)
Shipping Weight	9.5 lbs. (4.3 kg)

Brand: dbx

SKU: DBX-1215

Barcode: 691991400032

Peso: 5.0 kg
